Product Specifications

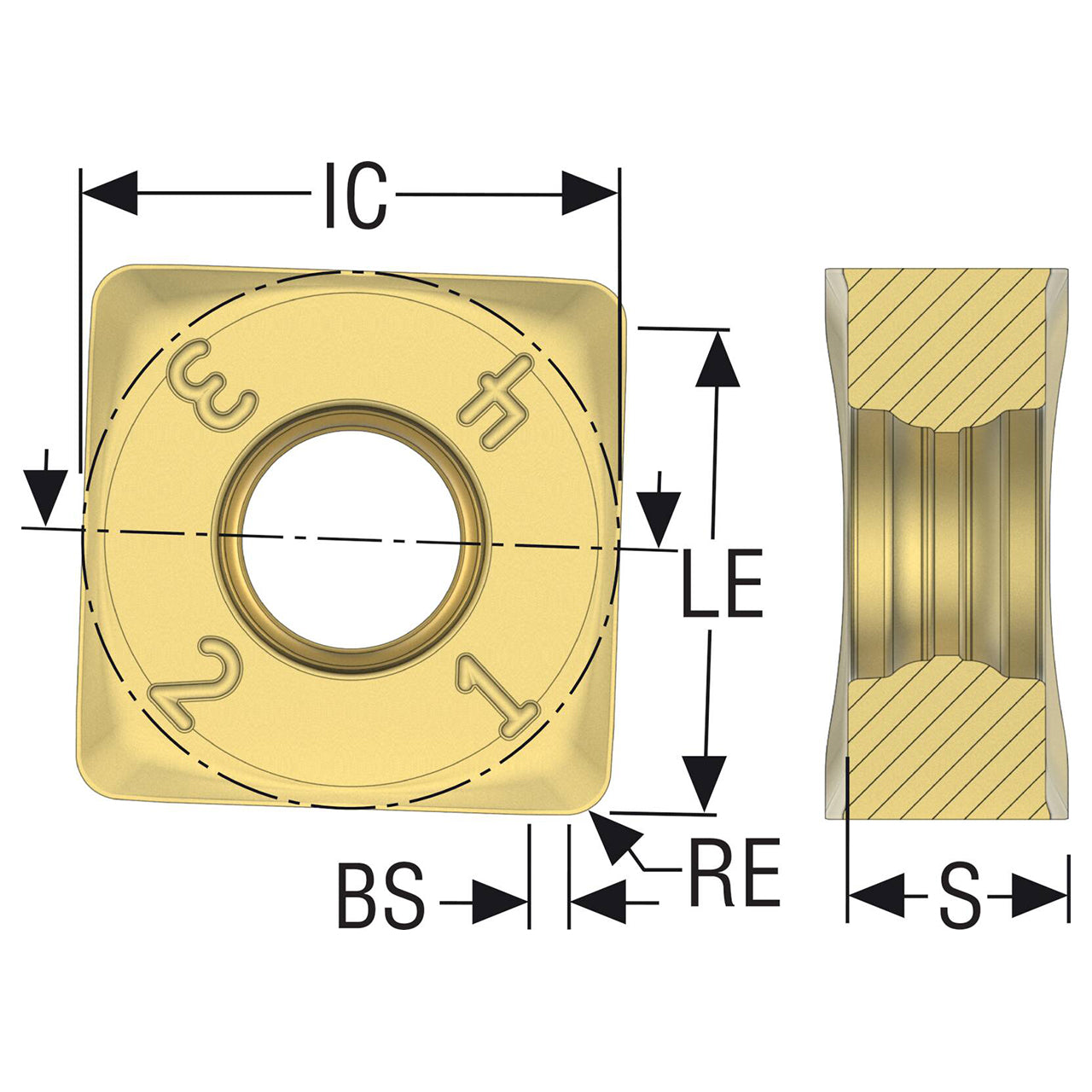

| Manufacturer Part Number | 03272946 |
| Inscribed Circle Diameter (Decimal Inch) | 0.472" |
| Inscribed Circle Diameter (mm) | 12.00mm |
| Wiper Edge Length (Decimal Inch) | 0.039" |
| Wiper Edge Length (mm) | 1.00mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.390" |
| Cutting Edge Effective Length (mm) | 9.90mm |
| Corner Radius (Decimal Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Insert Thickness (Decimal Inch) | 0.189" |
| Insert Thickness (mm) | 4.80mm |
| Cutting Edge Count | 8 |
| Cutting Geometry Type Technical | M10 |
| Pocket Seat Code of The Cutter | SN.U1204 |
| Insert Size And Shape | SNMU1204 |
| Insert Rake Angle (Degree) | 20 Degree |
| Insert Hand | Neutral |
| Material | Carbide |

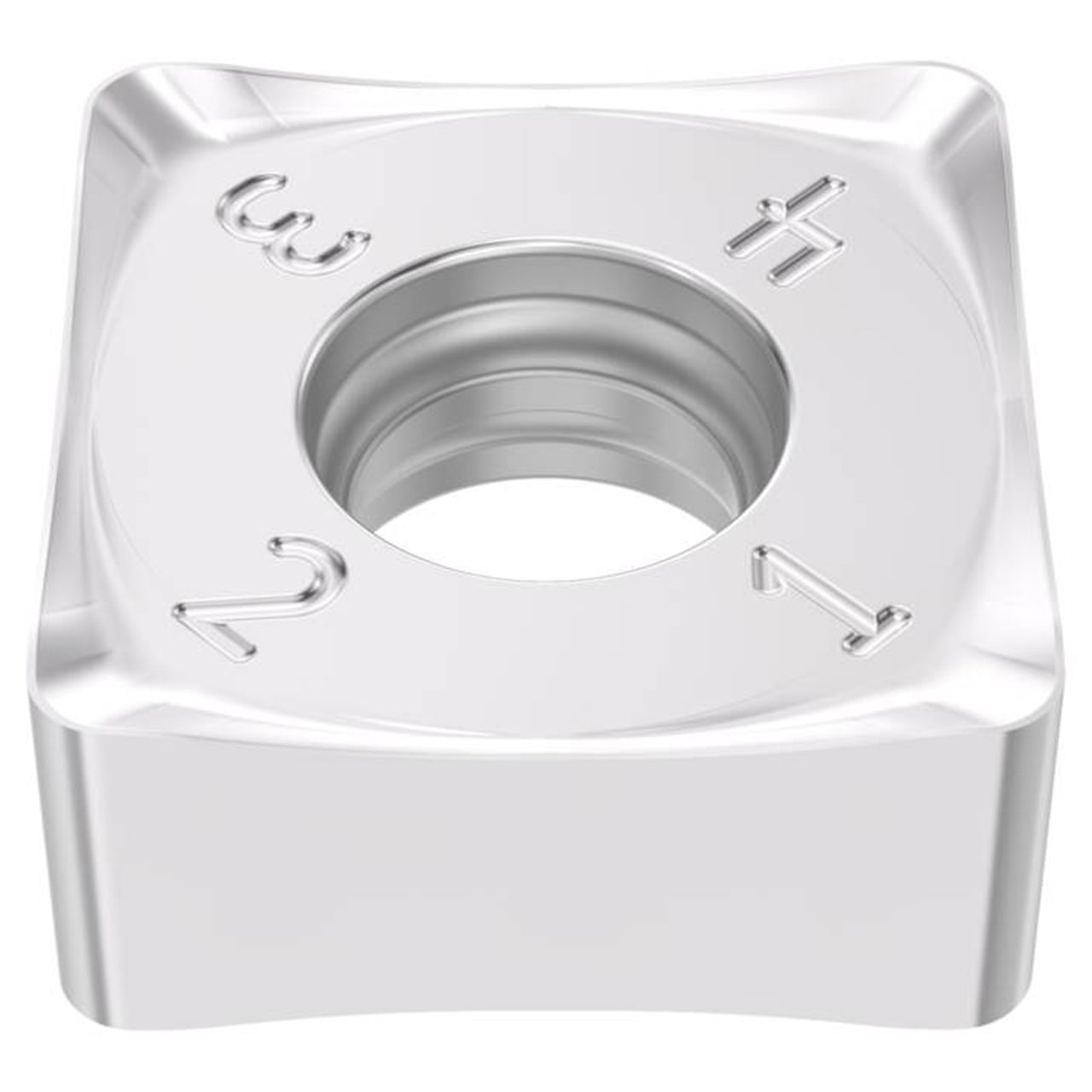

| Product Type | Milling Insert |
