Product Specifications
| Manufacturer Part Number | 03272731 |

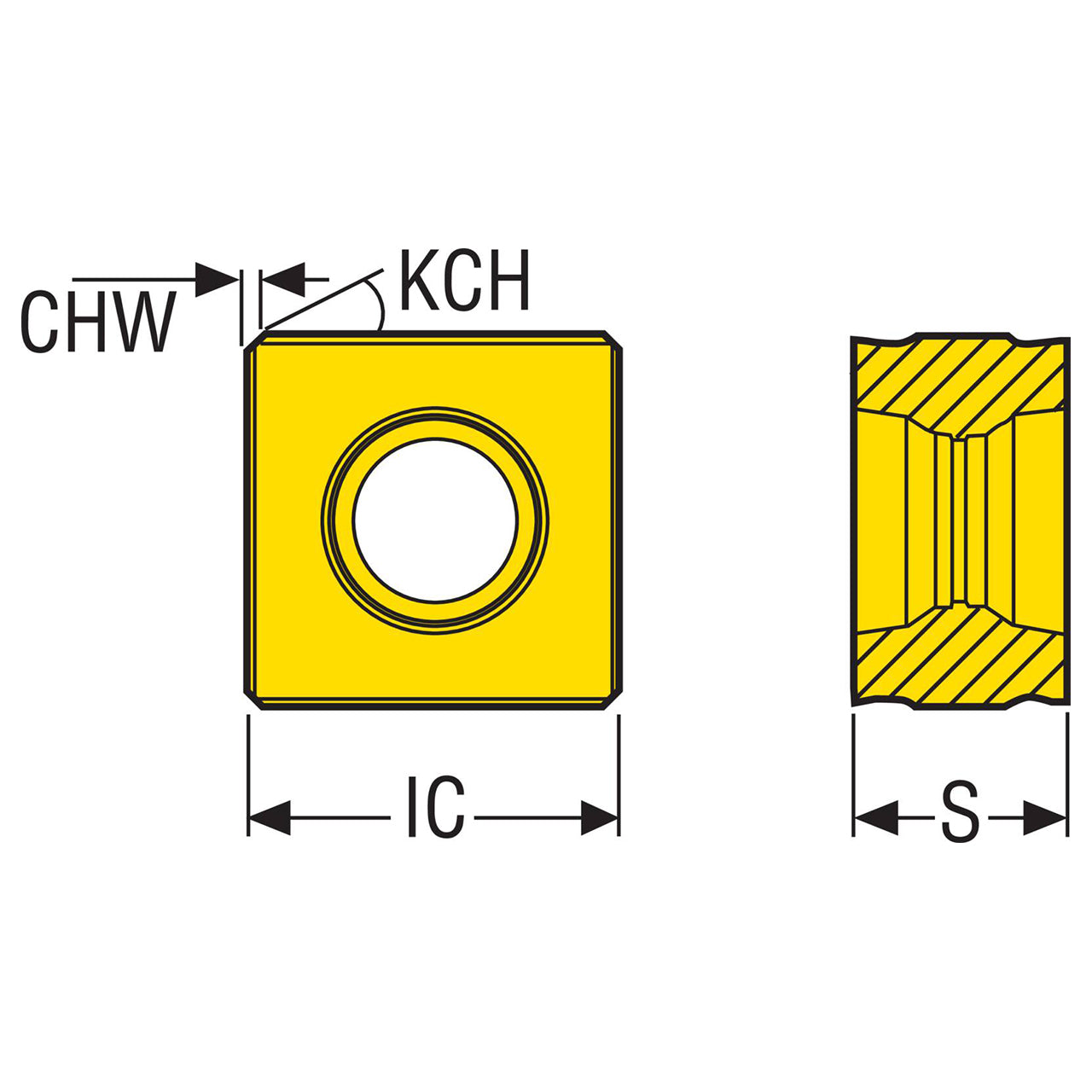

| Inscribed Circle Diameter (Decimal Inch) | 0.571" |
| Inscribed Circle Diameter (mm) | 14.50mm |
| Corner Chamfer Width (Decimal Inch) | 0.020" |
| Corner Chamfer Width (mm) | 0.50mm |
| Insert Thickness (Decimal Inch) | 0.250" |
| Insert Thickness (mm) | 6.35mm |
| Cutting Edge Count | 8 |
| Cutting Geometry Type Technical | M12 |
| Pocket Seat Code of The Cutter | SNHX1406 |
| Insert Size And Shape | SNHX1406 |
| Insert Rake Angle (Degree) | 10 Degree |
| Insert Hand | Neutral |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Material | Carbide |

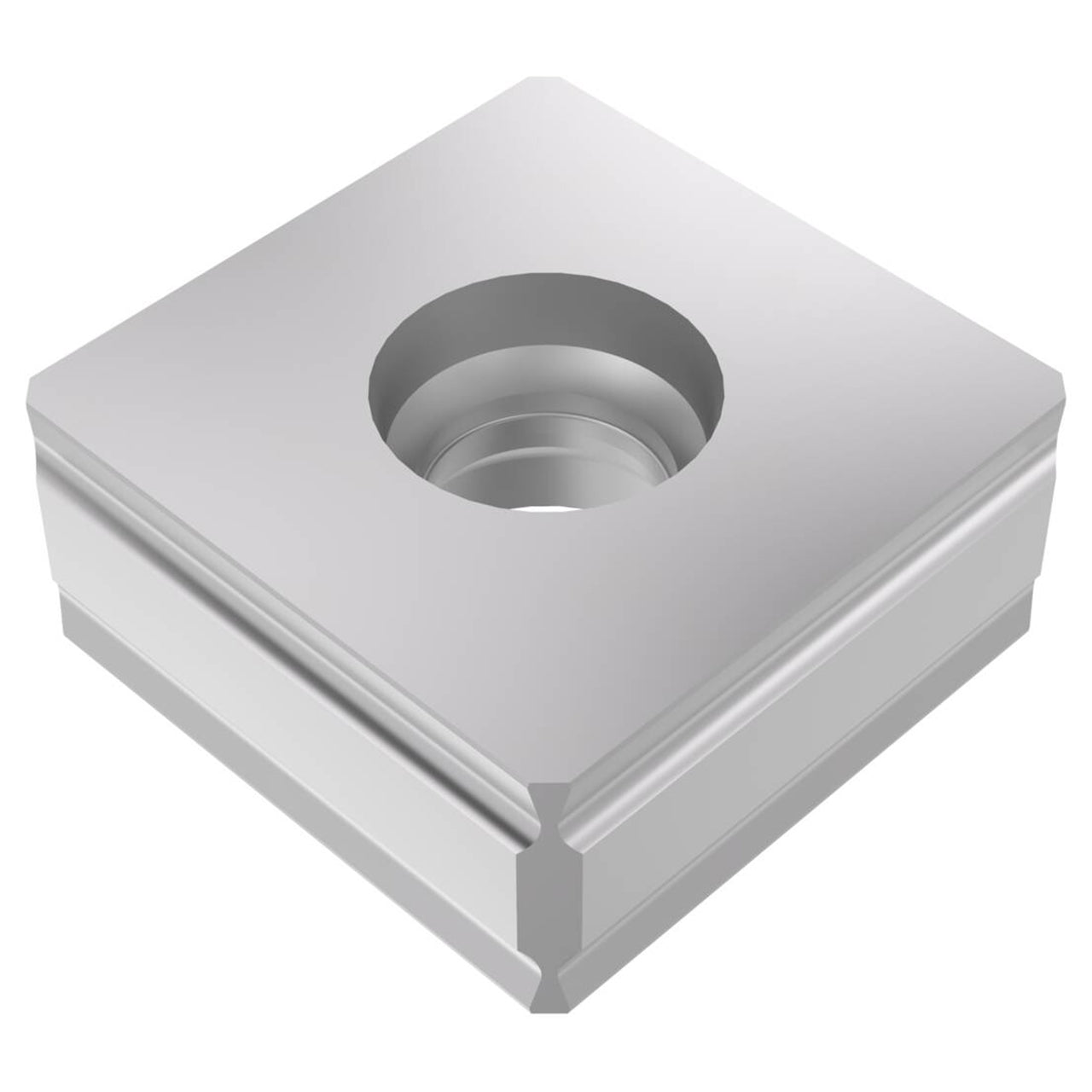

| Product Type | Disc Milling Insert |
