Product Specifications
| Manufacturer Part Number | 03272719 |
| Fixing Hole Diameter (Decimal Inch) | 0.114" |
| Fixing Hole Diameter (mm) | 2.90mm |

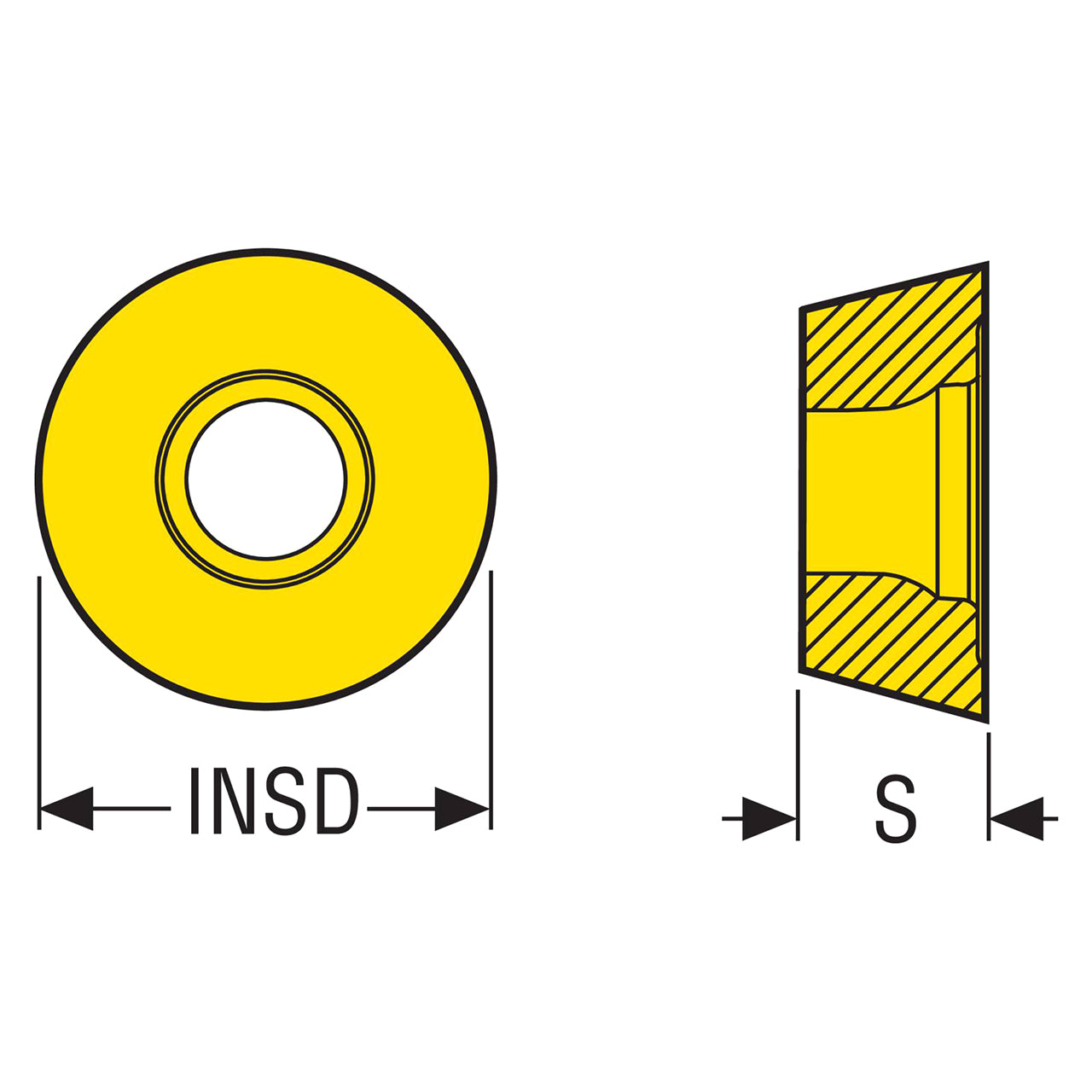

| Inscribed Circle Diameter (Decimal Inch) | 0.315" |
| Inscribed Circle Diameter (mm) | 8.00mm |
| Insert Diameter (Decimal Inch) | 0.315" |
| Insert Diameter (mm) | 8.00mm |
| Corner Radius (Decimal Inch) | 0.158" |
| Corner Radius (mm) | 4.00mm |
| Insert Thickness (Decimal Inch) | 0.125" |
| Insert Thickness (mm) | 3.18mm |
| Cutting Edge Count | 4 |
| Clearance Angle Major (Degree) | 15 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD05 |
| Pocket Seat Code of The Cutter | RD..0803 |
| Insert Size And Shape | RDKW0803 |
| Insert Shape Code | R |
| Material | Carbide |

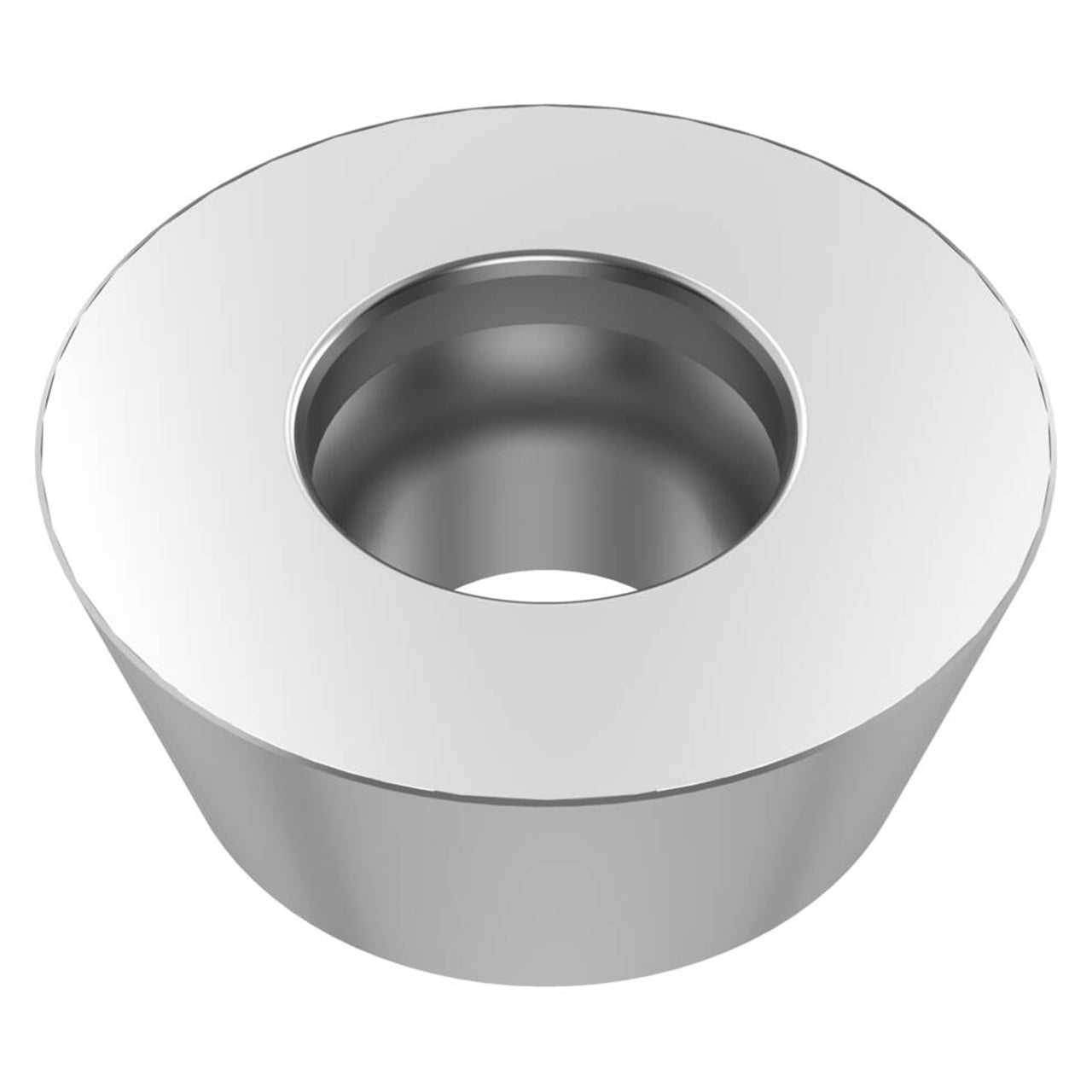

| Product Type | Milling Insert |
