Product Specifications
| Manufacturer Part Number | 03252435 |
| Fixing Hole Diameter (Decimal Inch) | 0.236" |
| Fixing Hole Diameter (mm) | 6.00mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.750" |
| Inscribed Circle Diameter (mm) | 19.05mm |
| Insert Diameter (Decimal Inch) | 0.750" |
| Insert Diameter (mm) | 19.05mm |
| Corner Radius (Decimal Inch) | 0.375" |
| Corner Radius (mm) | 9.53mm |
| Insert Thickness (Decimal Inch) | 0.252" |
| Insert Thickness (mm) | 6.39mm |
| Cutting Edge Count | 6 |
| Clearance Angle Major (Degree) | 11 Degree |
| Insert Rake Angle (Degree) | 16 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M13 |
| Pocket Seat Code of The Cutter | RP..1906 |
| Insert Size And Shape | RPHT1906 |
| Insert Shape Code | R |
| Material | Carbide |

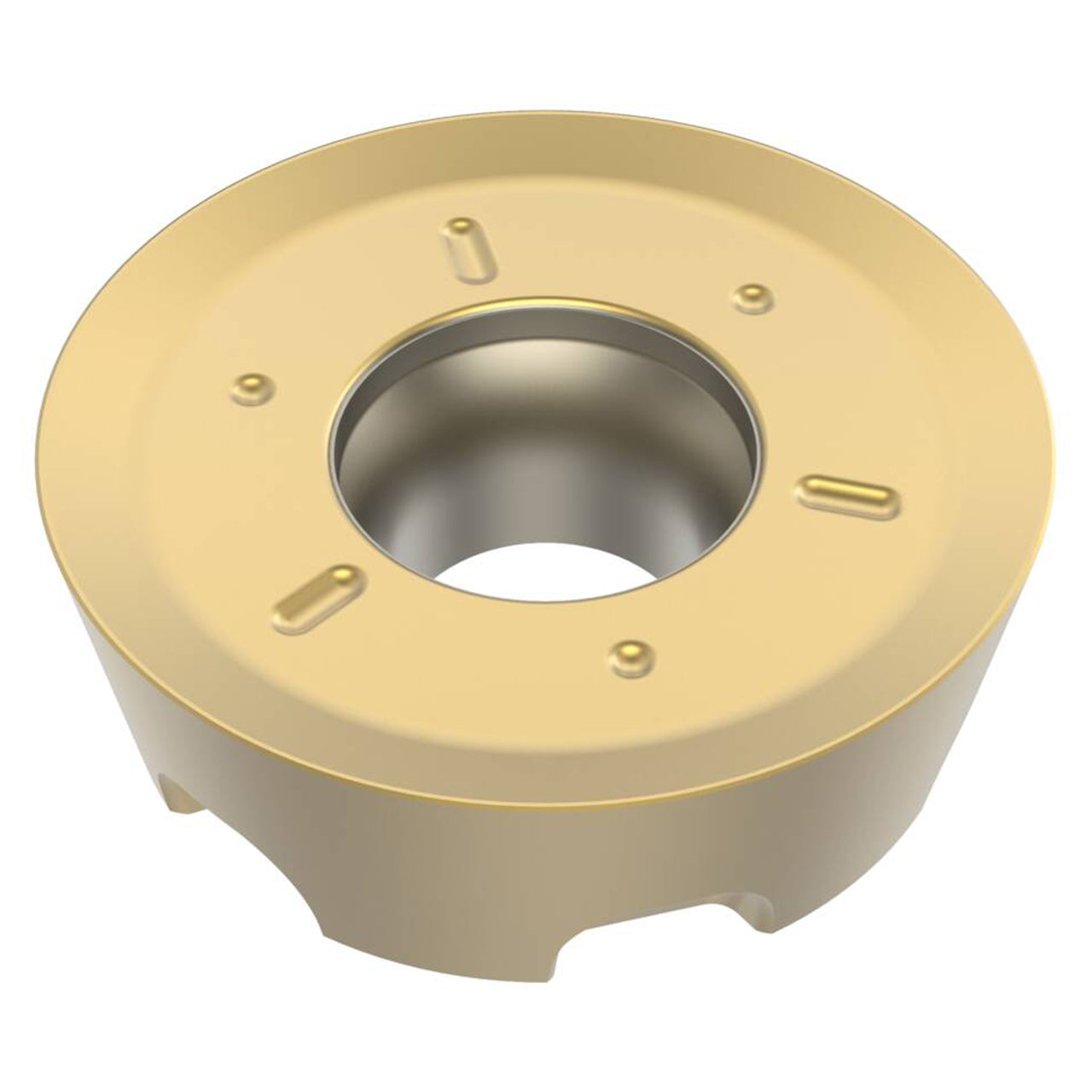

| Product Type | Milling Insert |
