Product Specifications
| Manufacturer Part Number | 03245304 |

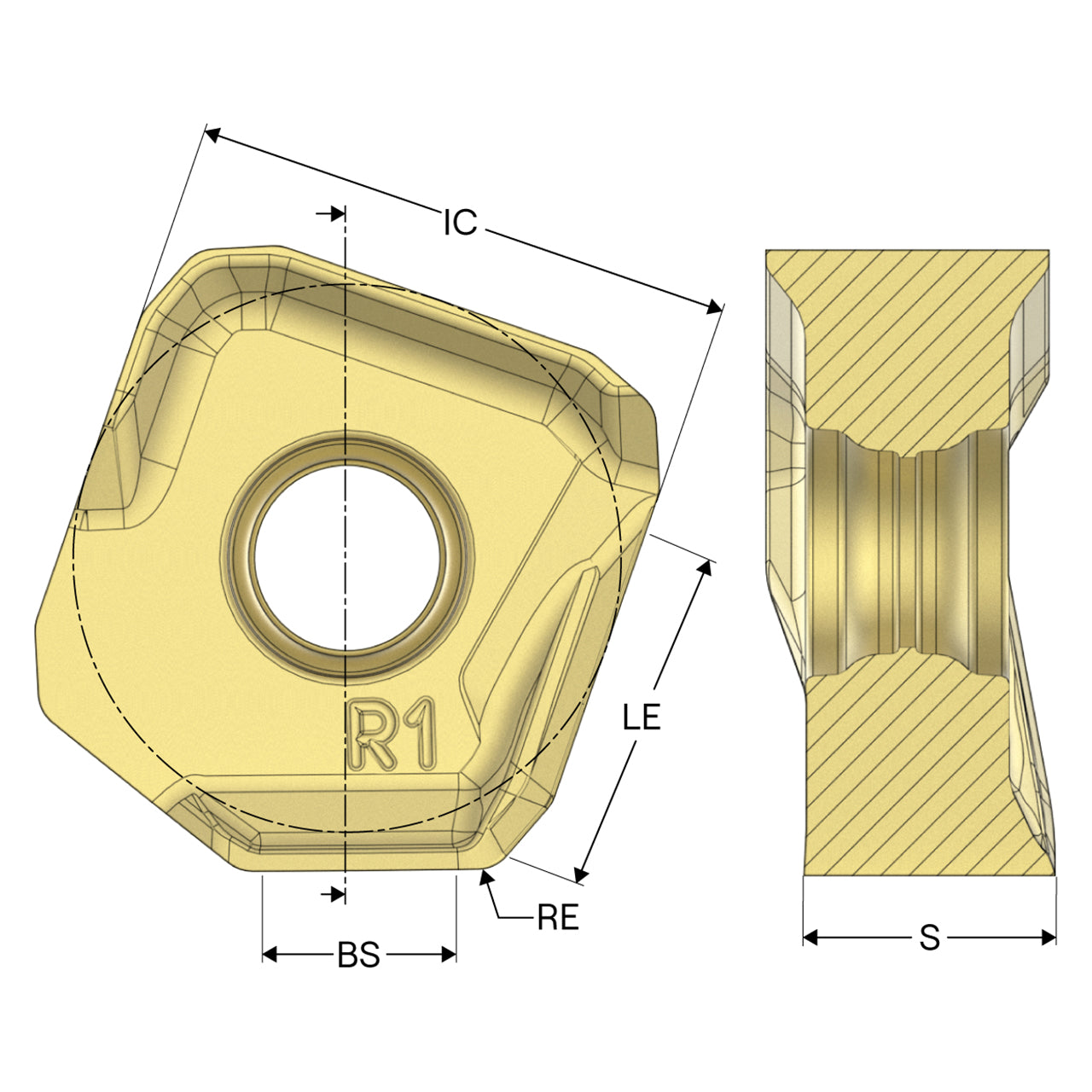

| Wiper Edge Length (Decimal Inch) | 0.224" |
| Cutting edge count | 2 |
| Cutting Geometry Type Technical | M10 |
| Insert size and shape | SNEX1407ZZ |
| Grade Type | Carbide PVD |
| Inscribed Circle Diameter (Decimal Inch) | 0.552" |
| Insert Hand | Right Hand |
| Cutting Edge Effective Length (Decimal Inch) | 0.374" |
| Corner Radius (Decimal Inch) | 0.039" |
| Insert Thickness (Decimal Inch) | 0.244" |
| Product Series | SNEX |
| Product Type | Milling Insert |
