Product Specifications
| Manufacturer Part Number | 03244874 |
| Minimum Initial Plunge Diameter (mm) | 140.00mm |
| Maximum Initial Plunge Diameter (mm) | 230.00mm |
| Functional Length (mm) | 43.00mm |
| Head Length (mm) | 43.00mm |
| Overall Length (mm) | 127.00mm |
| Functional Height (mm) | 24.95mm |
| Height of Tool Holder Shank (mm) | 25.00mm |
| Shank Width (mm) | 25.00mm |
| Cutting Width (mm) | 3.00mm |
| Maximum Cutting Depth (mm) | 18.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 96 Degree |
| Cutting Direction | Right Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Shank Type | Square shank |

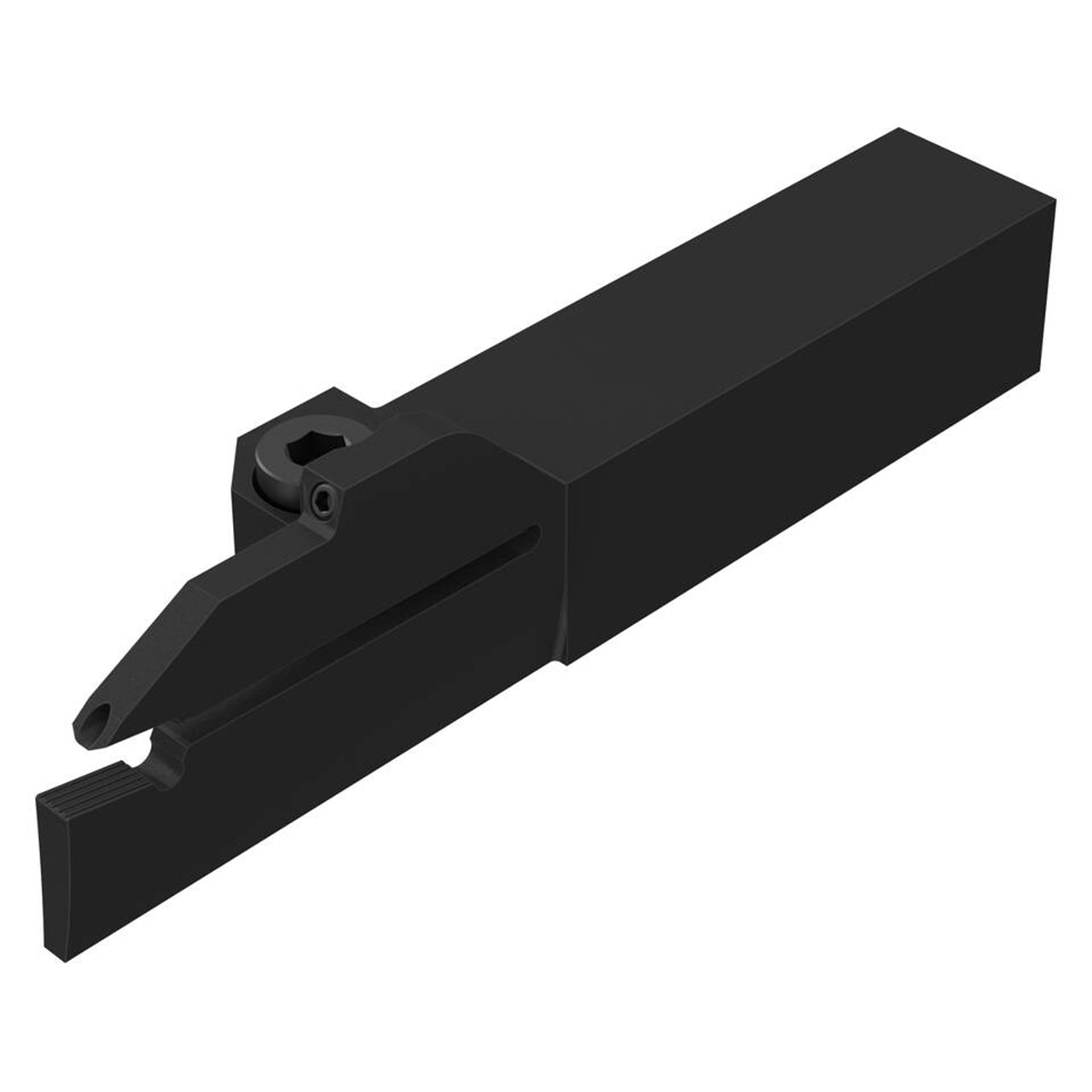

| Product Type | Indexable Grooving Toolholder |
