Product Specifications
| Manufacturer Part Number | 03229703 |

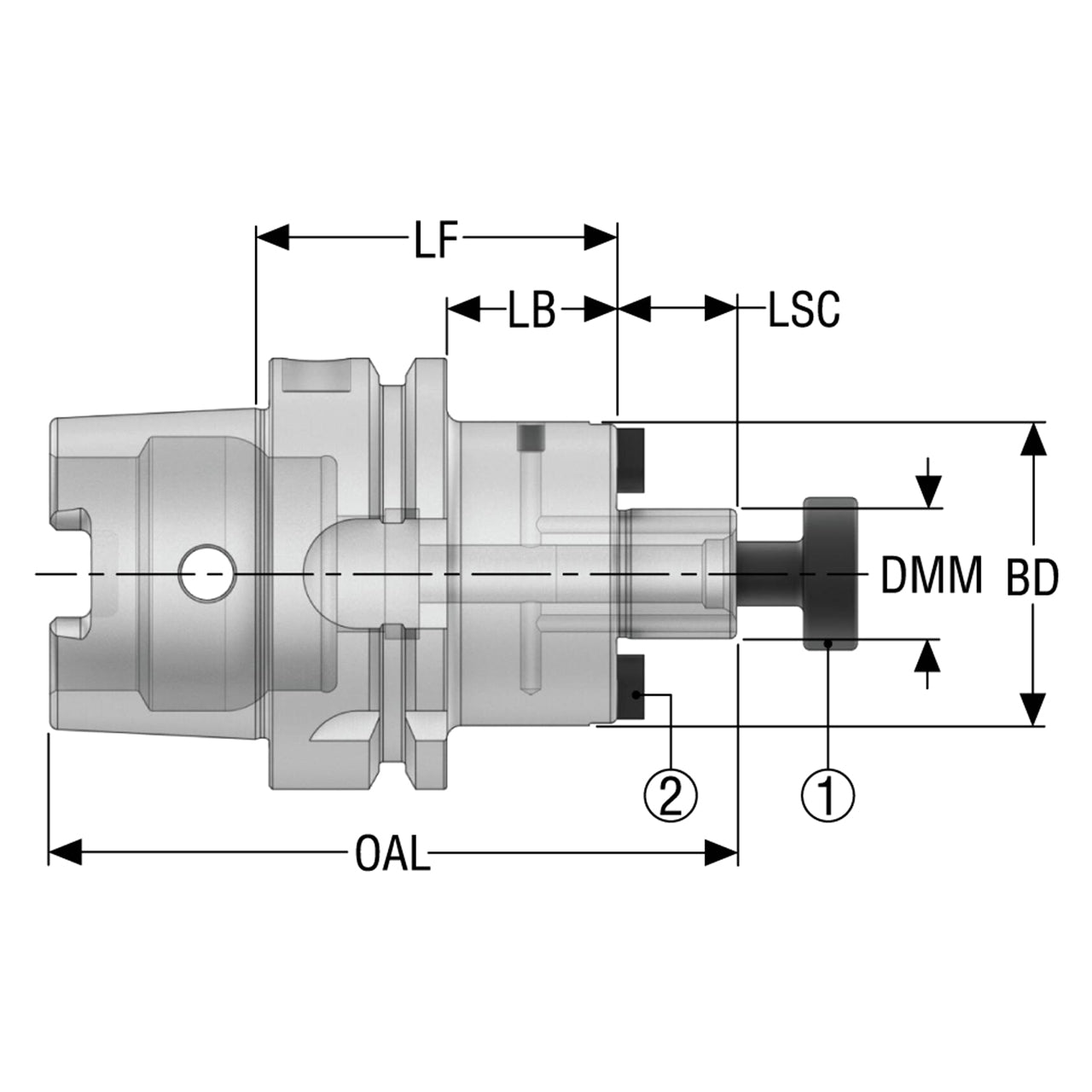

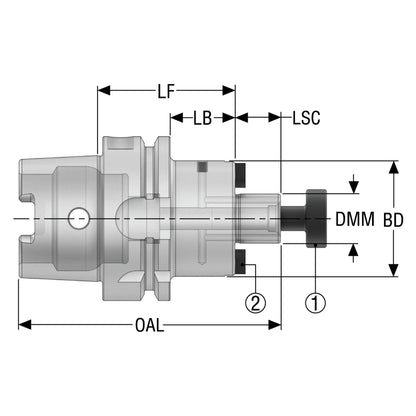

| Body Diameter (Decimal Inch) | 2.250" |
| Body Diameter (mm) | 57.15mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.000" |
| Connection Diameter Workpiece Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Body Length (Decimal Inch) | 2.858" |
| Body Length (mm) | 72.60mm |
| Functional Length (Decimal Inch) | 4.000" |
| Functional Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 0.689" |
| Clamping Length (mm) | 17.50mm |
| Overall Length (Decimal Inch) | 7.169" |
| Overall Length (mm) | 182.10mm |
| Data Chip Provision | 1 |

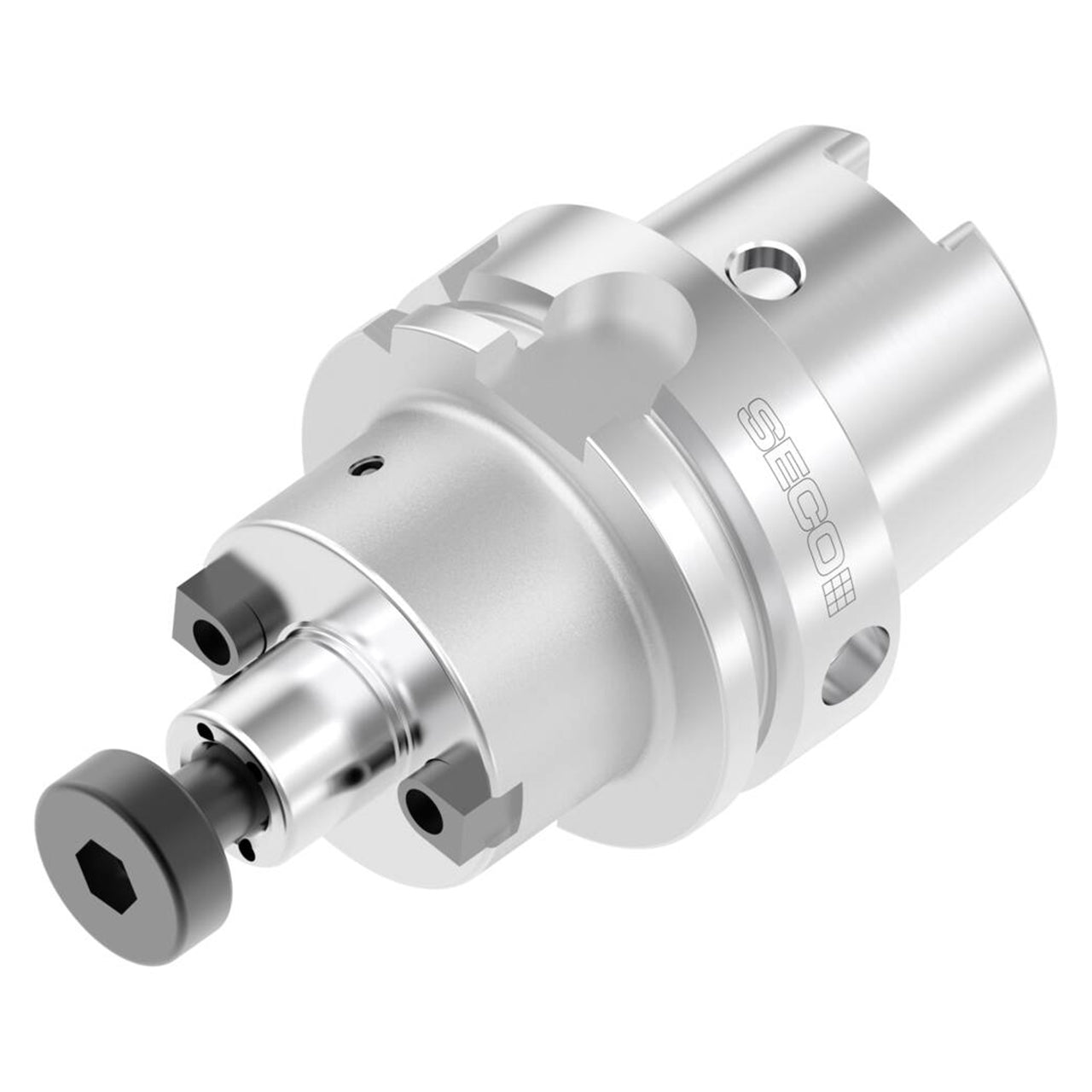

| Product Type | Shell Mill Holder |
