Product Specifications
| Manufacturer Part Number | 03229686 |
| Body Diameter 1 (Decimal Inch) | 0.945" |
| Body Diameter 1 (mm) | 24.00mm |
| Body Diameter 2 (Decimal Inch) | 1.260" |
| Body Diameter 2 (mm) | 32.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.375" |
| Connection Bore Diameter (mm) | 9.53mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.375" |
| Minimum Connection Bore Diameter (mm) | 9.53mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.375" |
| Maximum Connection Bore Diameter (mm) | 9.53mm |
| Thread Diameter Size | M8x1 |
| Body Length (Decimal Inch) | 2.858" |
| Body Length (mm) | 72.60mm |
| Functional Length (Decimal Inch) | 2.780" |
| Functional Length (mm) | 70.60mm |
| Minimum Functional Length (Decimal Inch) | 2.386" |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 1.221" |
| Clamping Length (mm) | 31.00mm |
| Overall Length (Decimal Inch) | 6.480" |
| Overall Length (mm) | 164.60mm |
| Connection Bore Depth (mm) | 42.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.512" |
| Radial Location (mm) | 13.00mm |

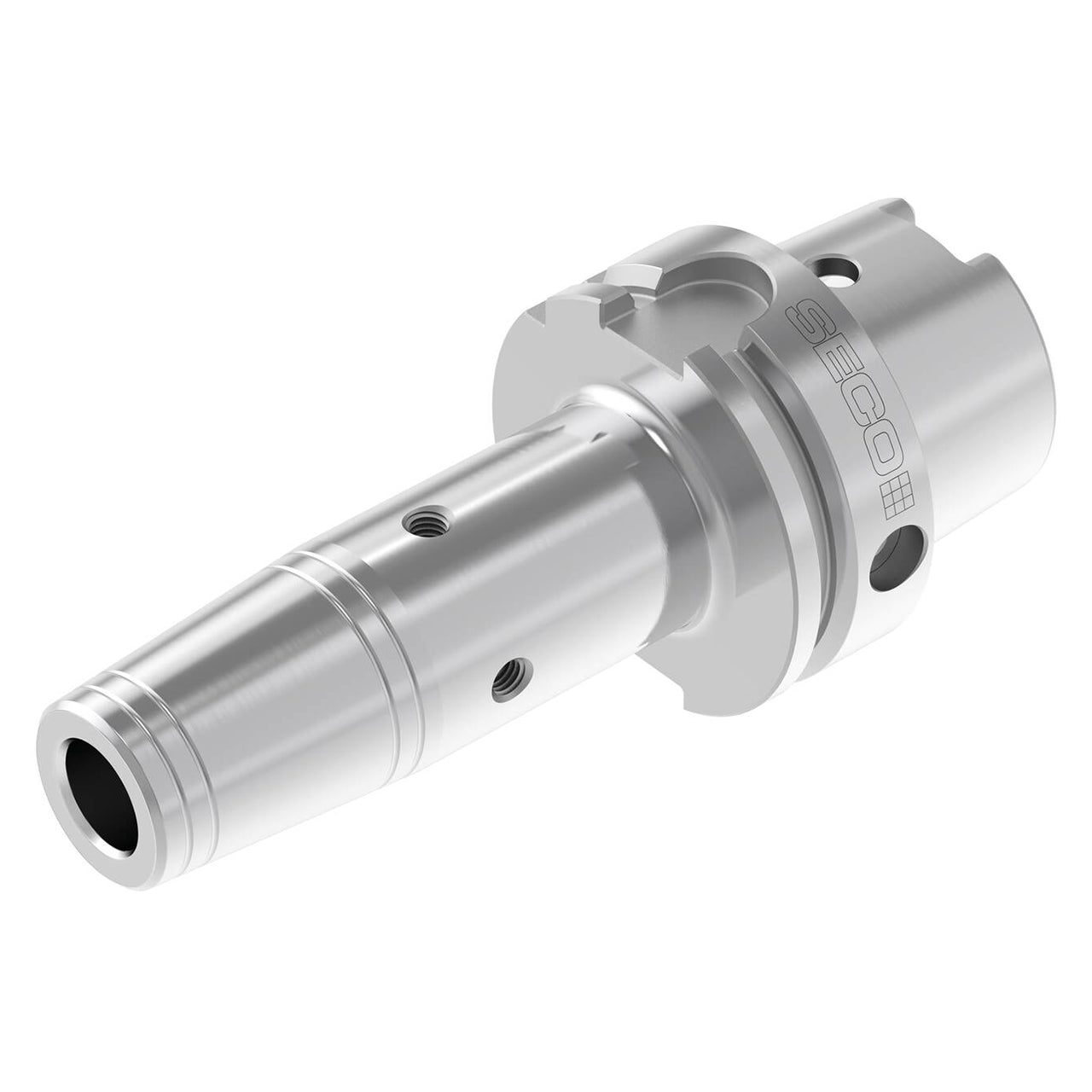

| Product Type | Shrink-Fit Tool Holder |
