Product Specifications
| Manufacturer Part Number | 03229680 |
| Body Diameter (Decimal Inch) | 2.500" |
| Body Diameter (mm) | 63.50mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Minimum Connection Bore Diameter (mm) | 25.40mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.000" |
| Maximum Connection Bore Diameter (mm) | 25.40mm |
| Body Length (Decimal Inch) | 3.108" |
| Body Length (mm) | 78.95mm |
| Functional Length Secondary (Decimal Inch) | 3.130" |
| Functional Length Secondary (mm) | 79.50mm |
| Protruding Length (Decimal Inch) | 4.250" |
| Protruding Length (mm) | 107.95mm |
| Clamping Length (Decimal Inch) | 2.244" |
| Clamping Length (mm) | 57.00mm |
| Overall Length (Decimal Inch) | 6.730" |
| Overall Length (mm) | 170.95mm |
| Data Chip Provision | 1 |

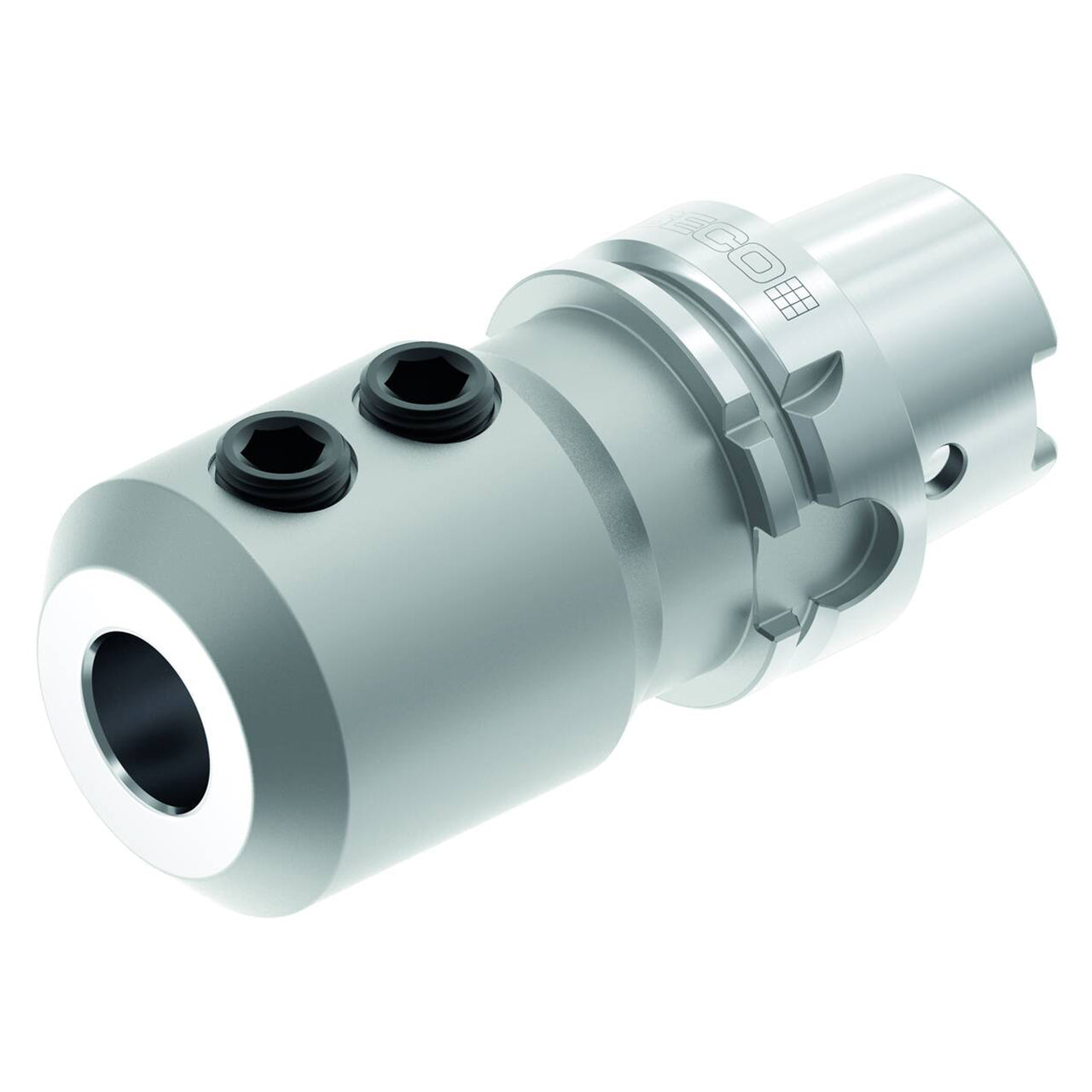

| Product Type | End Mill Holder |
