Product Specifications
| Manufacturer Part Number | 03229679 |
| Body Diameter (Decimal Inch) | 2.000" |
| Body Diameter (mm) | 50.80mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Minimum Connection Bore Diameter (mm) | 19.05mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Maximum Connection Bore Diameter (mm) | 19.05mm |
| Body Length (Decimal Inch) | 4.858" |
| Body Length (mm) | 123.40mm |
| Functional Length Secondary (Decimal Inch) | 5.000" |
| Functional Length Secondary (mm) | 127.00mm |
| Protruding Length (Decimal Inch) | 6.000" |
| Protruding Length (mm) | 152.40mm |
| Clamping Length (Decimal Inch) | 2.008" |
| Clamping Length (mm) | 51.00mm |
| Overall Length (Decimal Inch) | 8.480" |
| Overall Length (mm) | 215.40mm |
| Data Chip Provision | 1 |

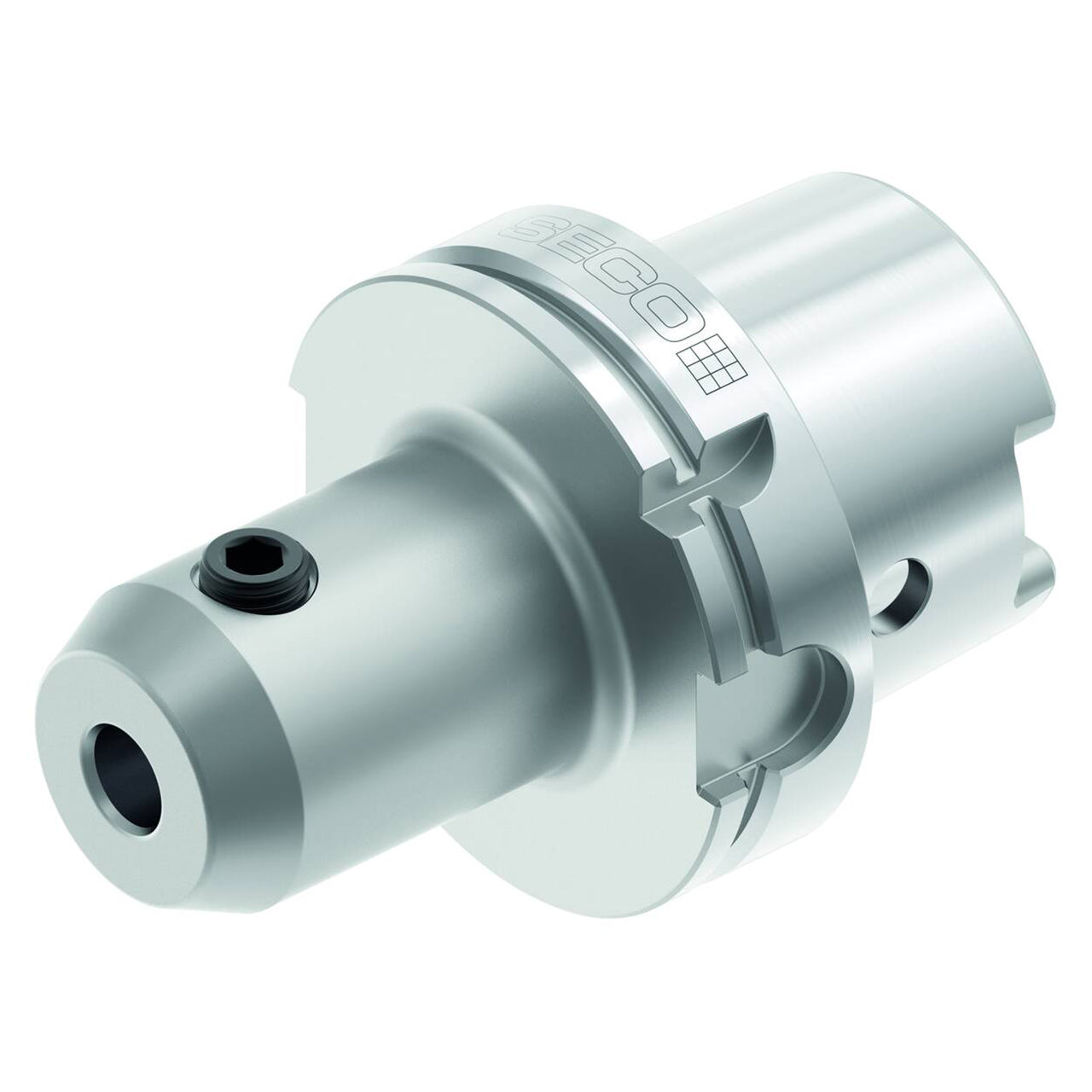

| Product Type | End Mill Holder |
