Product Specifications
| Manufacturer Part Number | 03229638 |
| Body Diameter 1 (Decimal Inch) | 1.654" |
| Body Diameter 1 (mm) | 42.00mm |
| Body Diameter 2 (Decimal Inch) | 1.654" |
| Body Diameter 2 (mm) | 42.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.039" |
| Minimum Connection Bore Diameter (mm) | 1.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 3.583" |
| Body Length (mm) | 91.00mm |
| Functional Length (Decimal Inch) | 3.228" |
| Functional Length (mm) | 82.00mm |
| Minimum Functional Length (Decimal Inch) | 2.244" |
| Protruding Length (Decimal Inch) | 4.724" |
| Protruding Length (mm) | 120.00mm |
| Overall Length (Decimal Inch) | 7.205" |
| Overall Length (mm) | 183.00mm |
| Data Chip Provision | 1 |

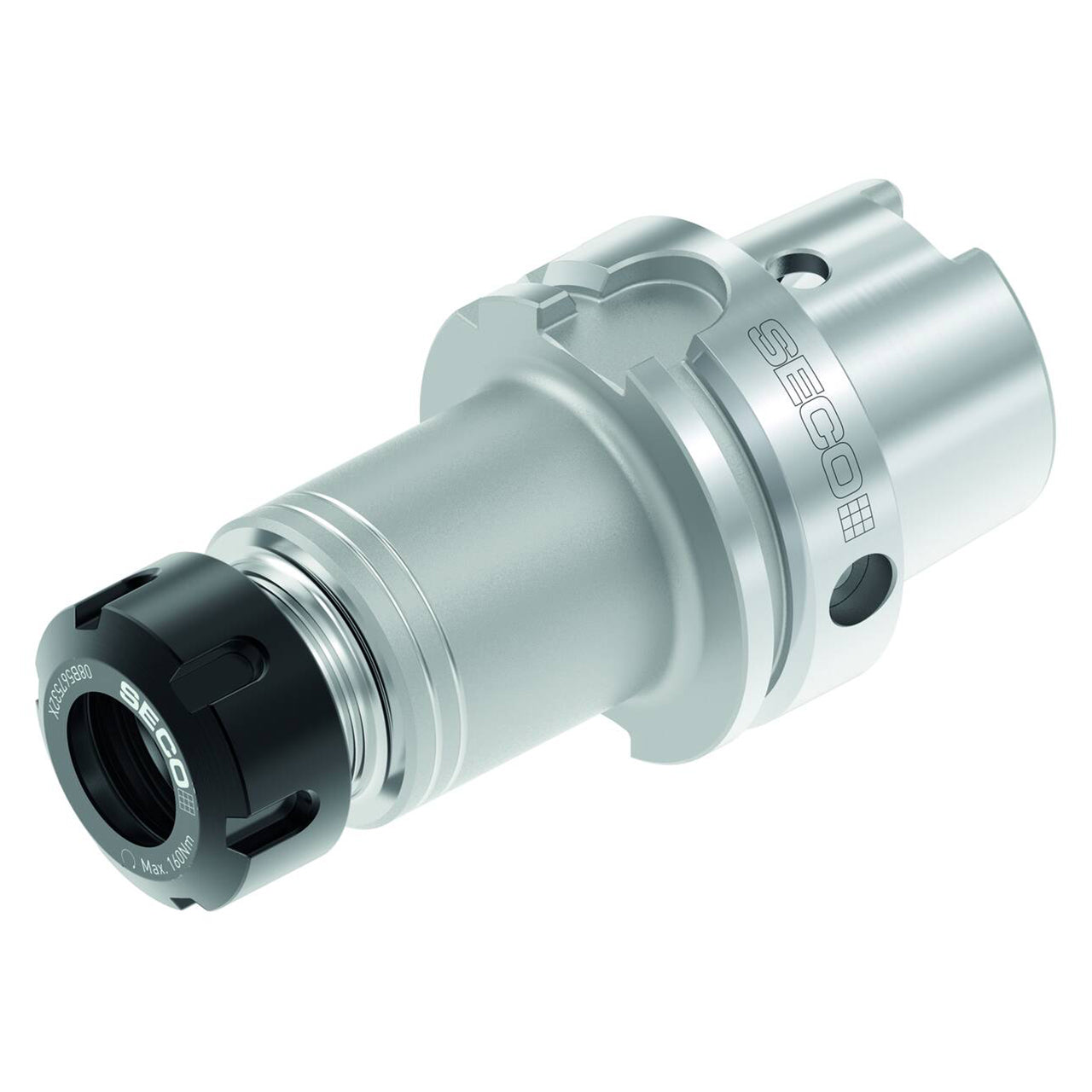

| Product Type | Collet Chuck |
