Product Specifications
| Manufacturer Part Number | 03229636 |
| Body Diameter (Decimal Inch) | 3.150" |
| Body Diameter (mm) | 80.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.575" |
| Minimum Connection Bore Diameter (mm) | 40.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.575" |
| Maximum Connection Bore Diameter (mm) | 40.00mm |
| Body Length (Decimal Inch) | 3.583" |
| Body Length (mm) | 91.00mm |
| Functional Length Secondary (Decimal Inch) | 3.543" |
| Functional Length Secondary (mm) | 90.00mm |
| Protruding Length (Decimal Inch) | 4.724" |
| Protruding Length (mm) | 120.00mm |
| Clamping Length (Decimal Inch) | 2.677" |
| Clamping Length (mm) | 68.00mm |
| Overall Length (Decimal Inch) | 7.205" |
| Overall Length (mm) | 183.00mm |
| Data Chip Provision | 1 |

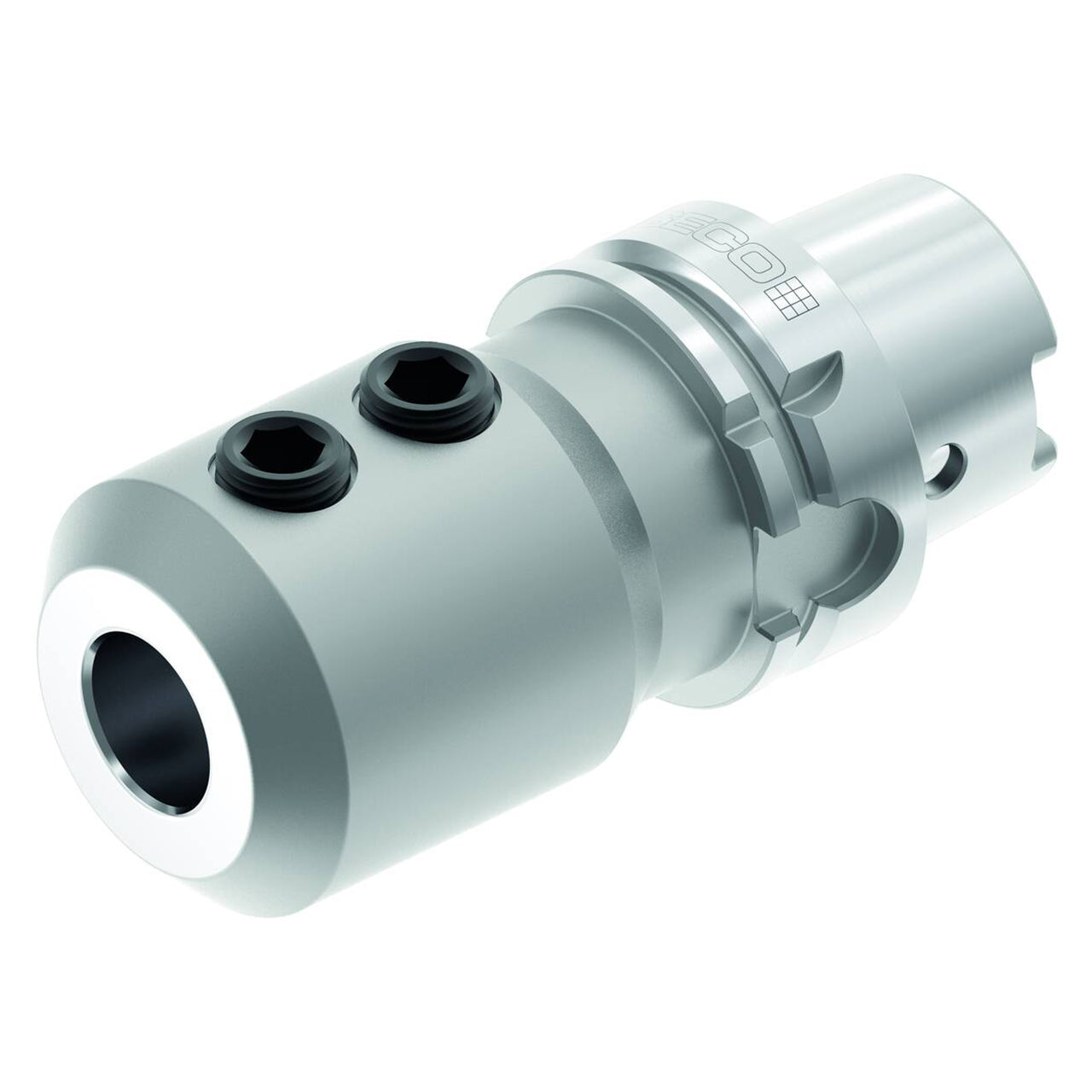

| Product Type | End Mill Holder |
