Product Specifications
| Manufacturer Part Number | 03214286 |
| Body Diameter (Decimal Inch) | 1.000" |
| Body Diameter (mm) | 25.40mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Thread Diameter Size | G 1/4 |
| Body Length (Decimal Inch) | 5.250" |
| Body Length (mm) | 133.35mm |
| Functional Length (Decimal Inch) | 9.250" |
| Functional Length (mm) | 234.95mm |
| Shank Length (Decimal Inch) | 4.000" |
| Shank Length (mm) | 101.60mm |
| Overall Length (Decimal Inch) | 9.427" |
| Overall Length (mm) | 239.45mm |
| Shank Width (Decimal Inch) | 0.945" |
| Shank Width (mm) | 24.00mm |
| Coolant Entry Thread Size | G 1/4 |

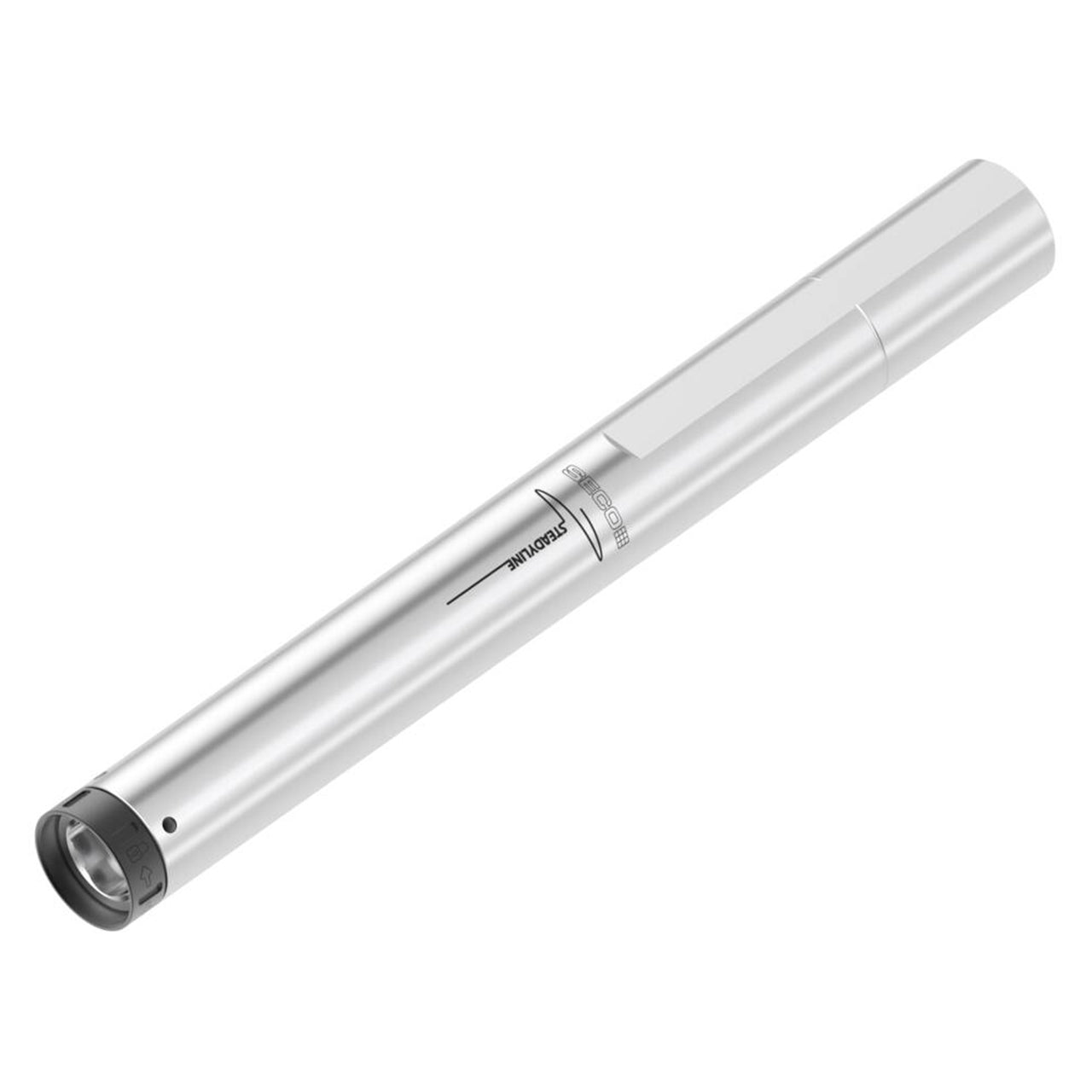

| Product Type | Collet Chuck Extension |
