Product Specifications
| Manufacturer Part Number | 03212903 |
| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 0.071" |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Cutting Diameter (Decimal Inch) | 1.488" |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Bore Diameter (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.750" |
| Cutting Diameter Maximum (Decimal Inch) | 2.000" |
| Functional Length (Decimal Inch) | 1.500" |
| Rotational Speed Maximum | 24600 rpm |
| Shank Type | Arbor |
| Uncut Thickness (Decimal Inch) | 0.028" |
| Peripheral Effective Cutting Edge Count | 6 |
| Product Series | R220.21 |

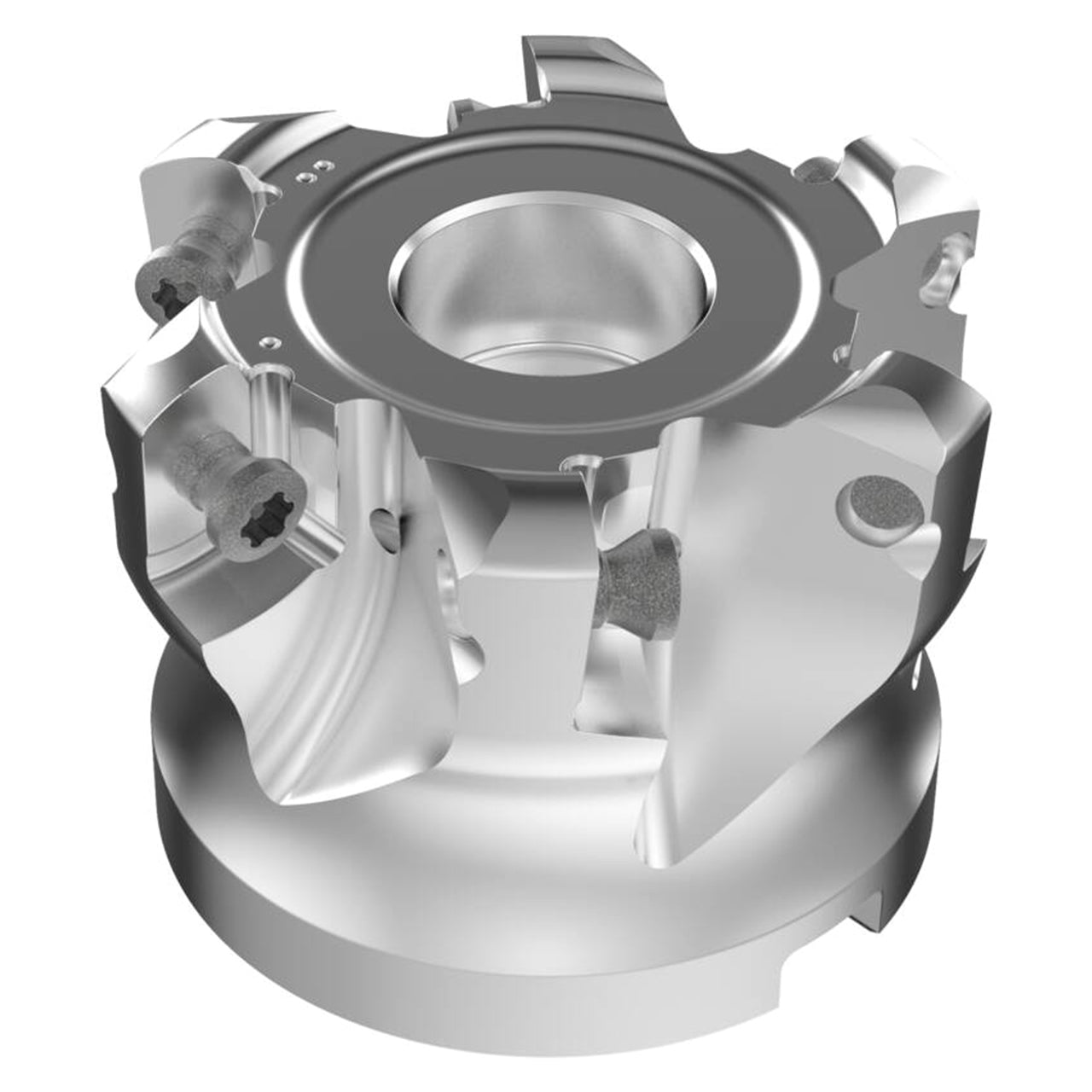

| Product Type | Indexable High-Feed Face Mill |
