Product Specifications
| Manufacturer Part Number | 03212900 |
| Cutting Diameter (Decimal Inch) | 0.744" |
| Cutting Diameter (mm) | 18.90mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.250" |
| Maximum Cutting Diameter (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.421" |
| Maximum Helical Interpolation Hole Diameter (mm) | 61.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.994" |
| Minimum Helical Interpolation Hole Diameter (mm) | 50.65mm |
| Protruding Length (Decimal Inch) | 5.719" |
| Protruding Length (mm) | 145.26mm |
| Shank Length (Decimal Inch) | 6.102" |
| Shank Length (mm) | 155.00mm |
| Overall Length (Decimal Inch) | 8.000" |
| Overall Length (mm) | 203.20mm |
| Maximum Depth of Cut (mm) | 1.87mm |
| Maximum Depth of Cut (Decimal Inch) | 0.074" |
| Programming Radius (Decimal Inch) | 0.137" |
| Programming Radius (mm) | 3.47mm |
| Uncut Thickness (Decimal Inch) | 0.0276 |
| Uncut Thickness (mm) | 0.7 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -8 Degree |
| Axial Rake Angle (Degree) | 2 Degree |
| Maximum Ramping Angle (Degree) | 4.9 Degree |
| Maximum Rotational Speed (rpm) | 31200 rpm |
| Insert Shape Code | L |
| Shank Type | Cylindrical |

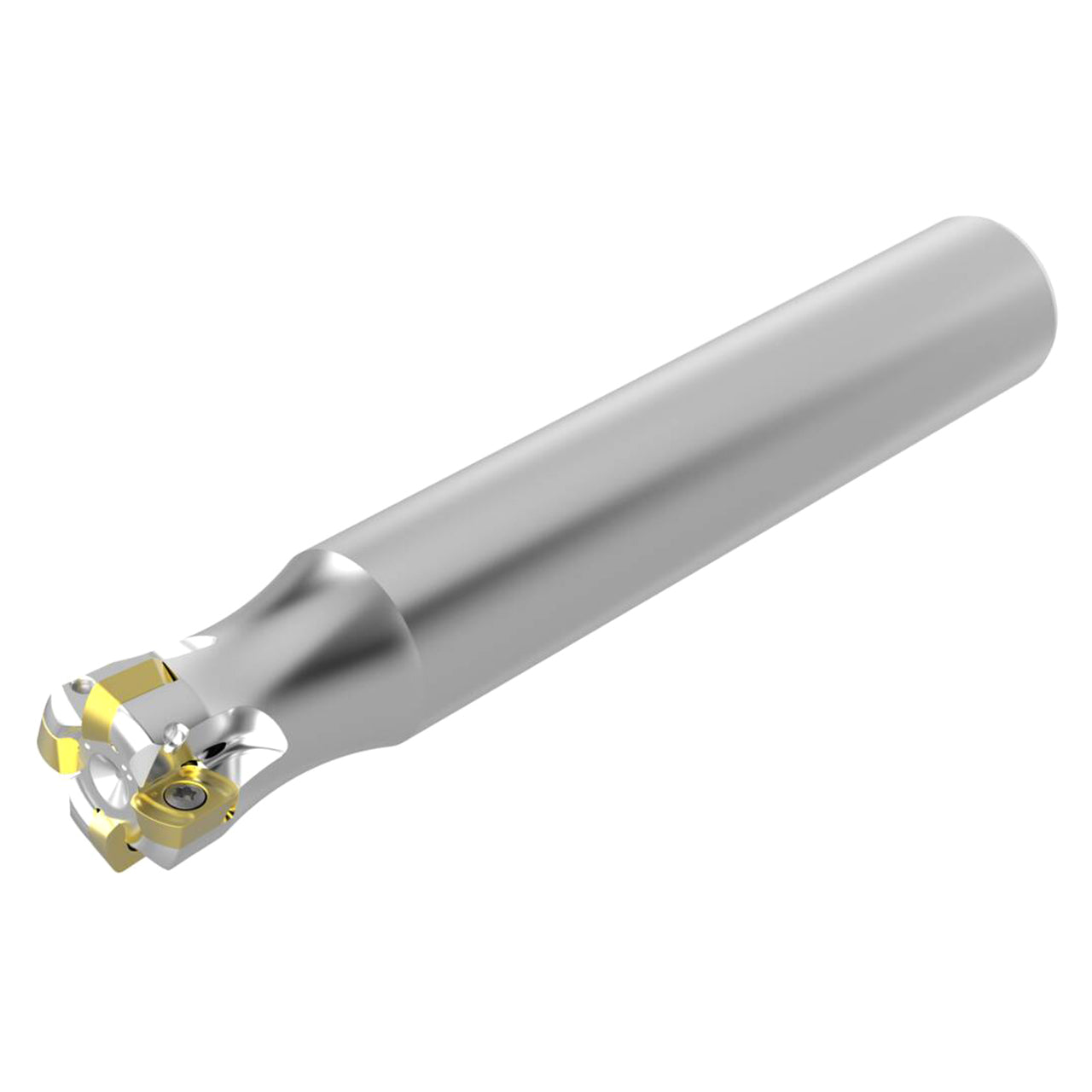

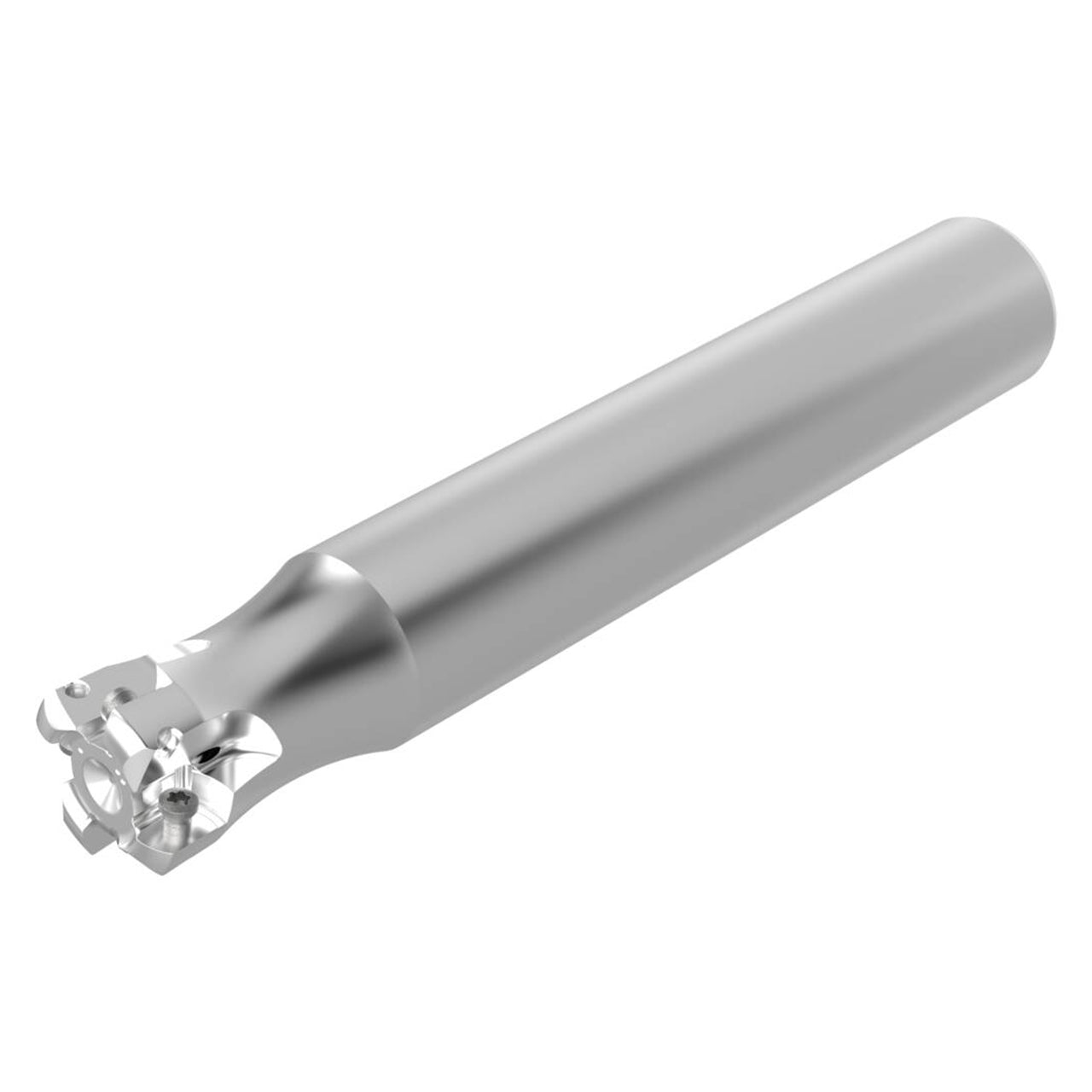

| Product Type | Indexable High-Feed End Mill |
