Product Specifications
| Manufacturer Part Number | 03211329 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.260" |
| Minimum Cutting Diameter Internal (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.984" |
| Contact Surface Diameter Machine Side (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 0.787" |
| Functional Length (mm) | 20.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.039" |
| Maximum Radial Cutting Depth (mm) | 1.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.022" |
| Maximum Cutting Depth (mm) | 0.56mm |
| Connection Size Code | 3 |
| Shank Type | GL-Connection |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Insert Size And Shape | TC11 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Tool Cutting Edge Angle Code | F |

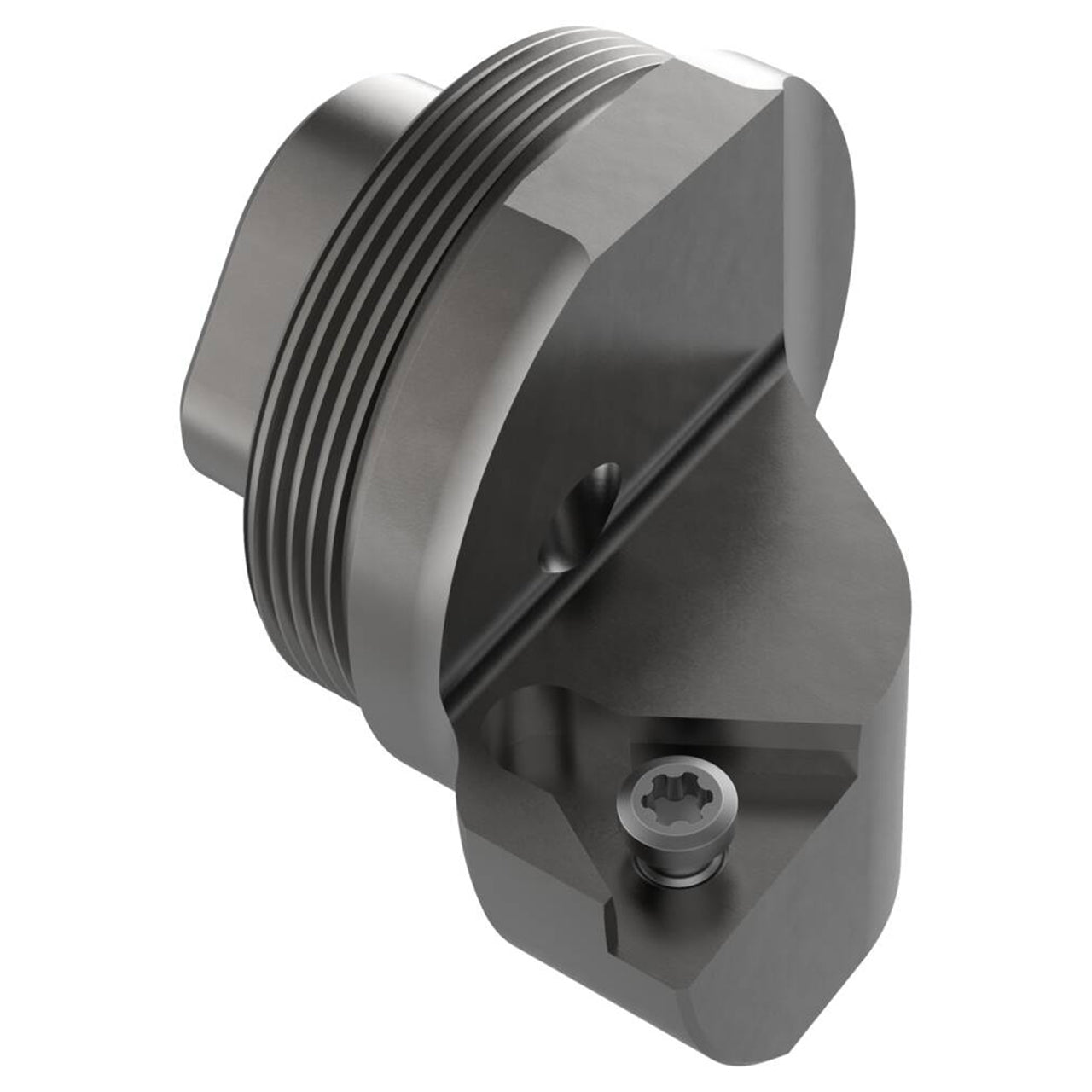

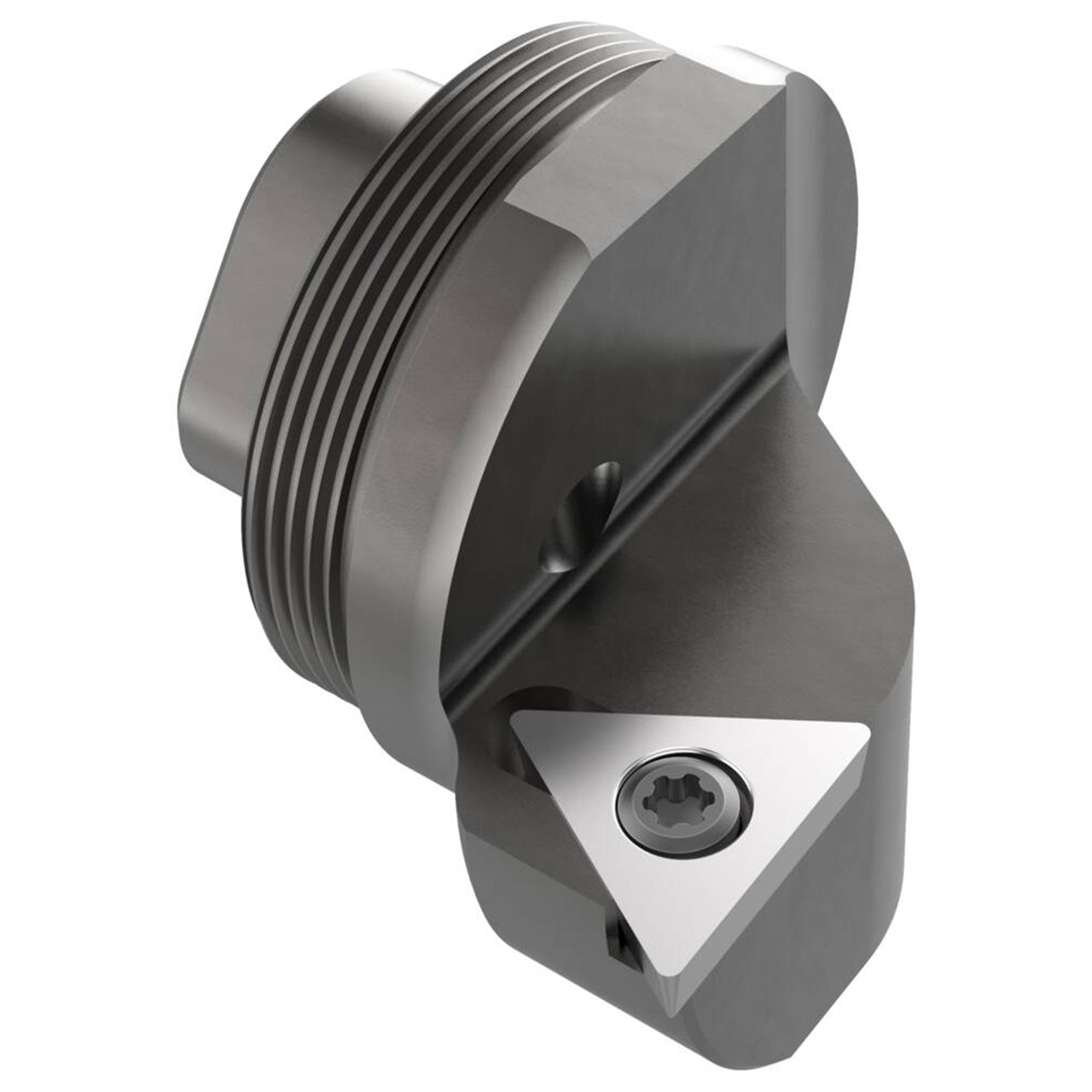

| Product Type | Modular Cutting Head |
