Product Specifications
| Manufacturer Part Number | 03211320 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.260" |
| Minimum Cutting Diameter Internal (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.984" |
| Contact Surface Diameter Machine Side (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 0.787" |
| Functional Length (mm) | 20.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.172" |
| Maximum Radial Cutting Depth (mm) | 4.38mm |
| Maximum Cutting Depth (Decimal Inch) | 0.026" |
| Maximum Cutting Depth (mm) | 0.66mm |
| Connection Size Code | 3 |
| Shank Type | GL-Connection |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Insert Size And Shape | DC07 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 93 Degree |

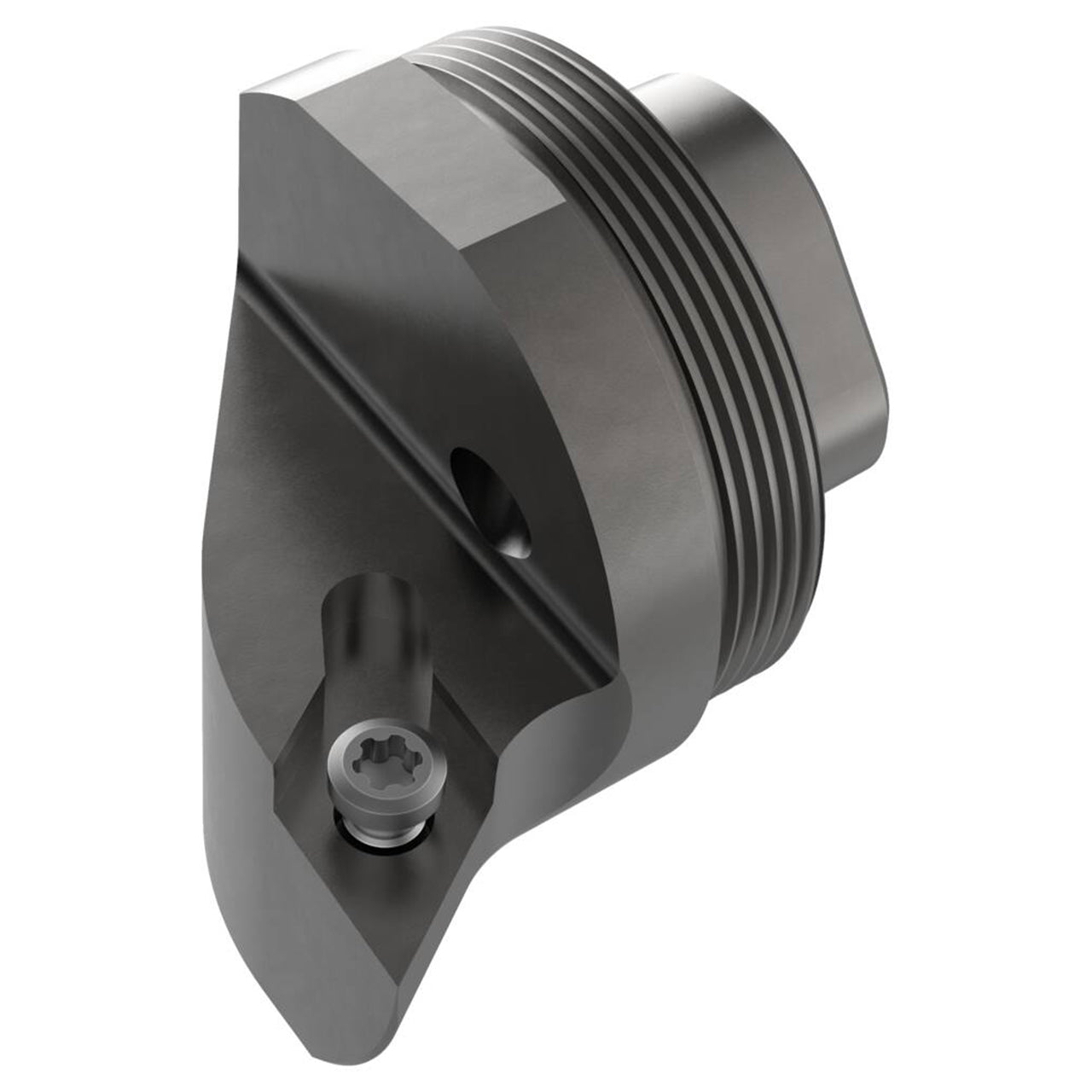

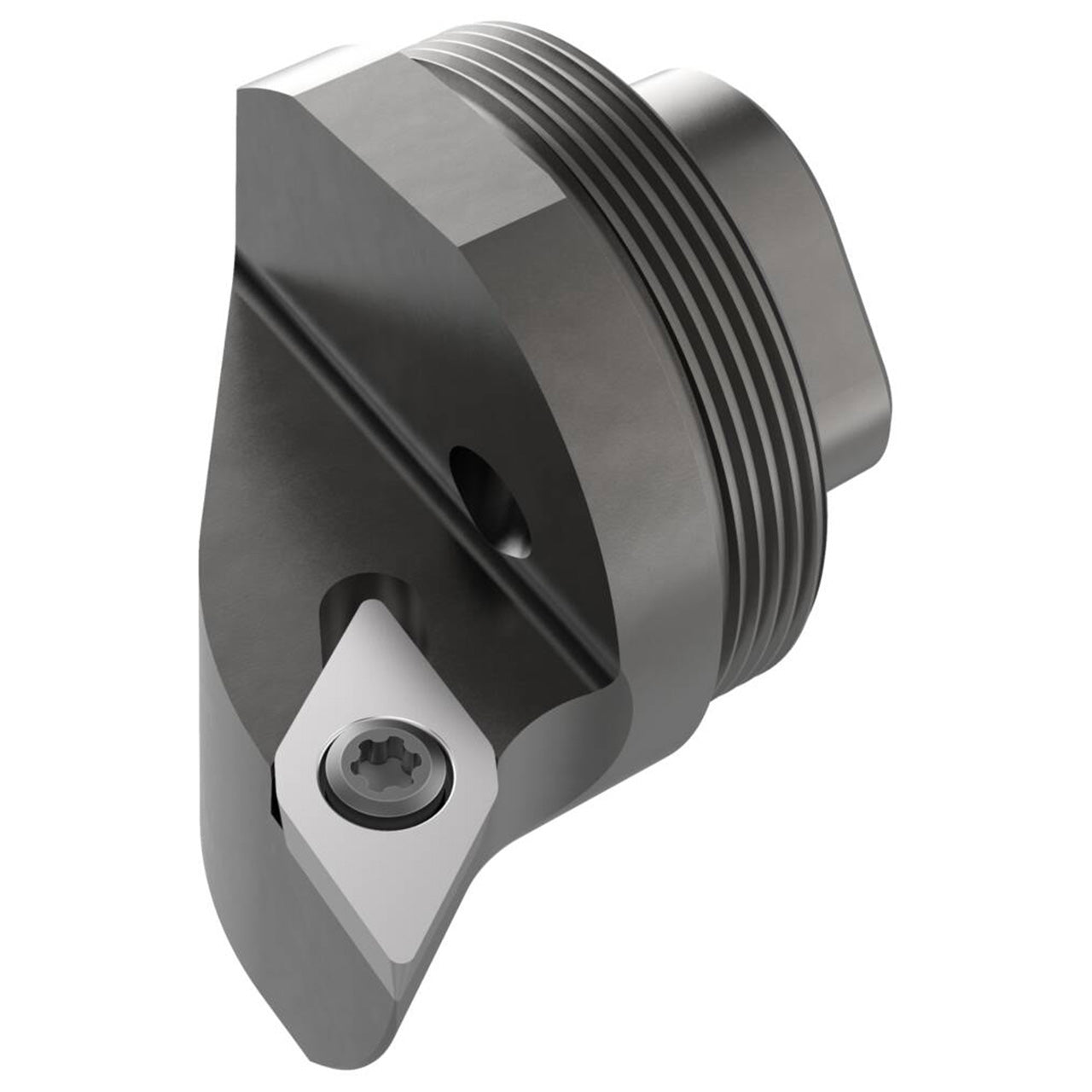

| Product Type | Modular Cutting Head |
