Product Specifications

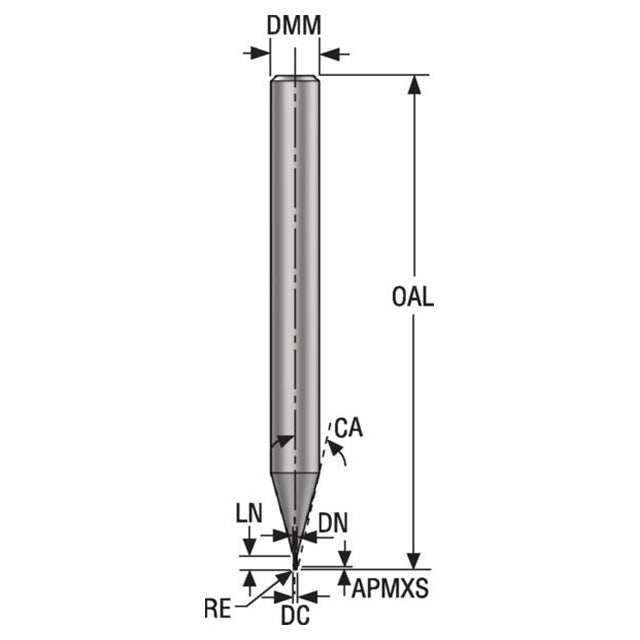

| Manufacturer Part Number | 03205099 |
| Cutting Diameter (mm) | 0.60mm |
| Cutting Diameter 1 (mm) | 0.60mm |
| Connection Diameter Machine Side (mm) | 4.00mm |
| Shank Diameter (mm) | 4.00mm |
| Neck Diameter (mm) | 0.56mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 1.10mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 0.78mm |
| Overall Length (mm) | 40.00mm |
| Neck Length (mm) | 0.90mm |
| Neck Length 1 (mm) | 0.90mm |
| Cutting Edge Effective Length (mm) | 0.45mm |
| Maximum Depth of Cut (mm) | 0.45mm |
| Corner Radius (mm) | 0.05mm |
| Shank Type | Cylindrical |
| Collision Angle (Degree) | 13.67 Degree |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | JME142 |
| Cutting Geometry Type Technical | JME142 |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 28 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | -1 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Number of Flute | 2 |
| Material | Carbide |
| Coating | HXT |

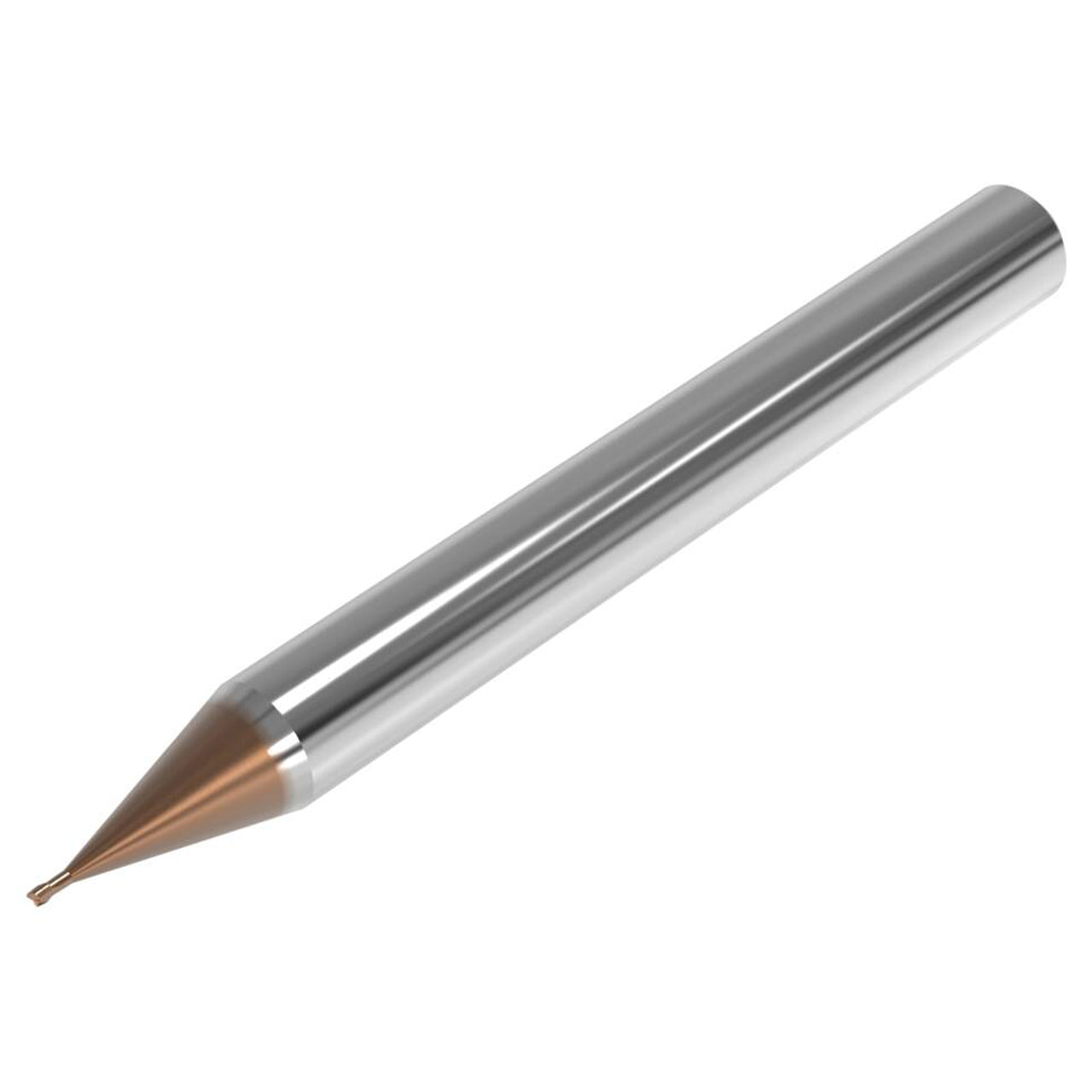

| Product Type | Corner Radius End Mill |
