Product Specifications

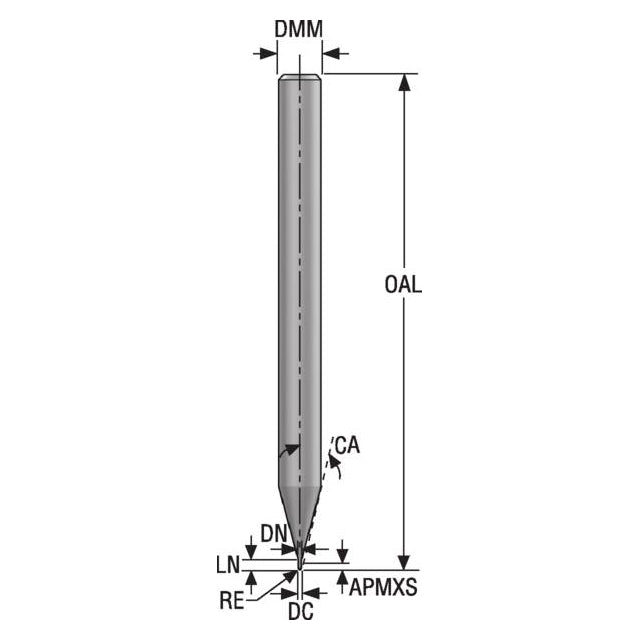

| Manufacturer Part Number | 03204964 |
| Cutting Diameter (mm) | 0.20mm |
| Cutting Diameter 1 (mm) | 0.20mm |
| Connection Diameter Machine Side (mm) | 4.00mm |
| Shank Diameter (mm) | 4.00mm |
| Neck Diameter (mm) | 0.18mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 0.26mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 0.36mm |
| Cutting Edge Effective Length (mm) | 0.15mm |
| Neck Length (mm) | 0.40mm |
| Neck Length 1 (mm) | 0.40mm |
| Minimum Clamping Length (mm) | 28.00mm |
| Length Variant Cataloque | 1 |
| Theoretical Cutting Edge Length (mm) | 0.15mm |
| Overall Length (mm) | 40.00mm |
| Number of Flute | 2 |
| Pheripheral Cutting Edge Count | 2 |
| Maximum Depth of Cut (mm) | 0.15mm |
| Profile Radius (mm) | 0.10mm |
| Corner Radius (mm) | 0.10mm |
| Cutting Edge Count | 2 |
| Face Cutting Edge Count | 2 |
| Tool Cutting Edge Angle (Degree) | 91 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Collision Angle (Degree) | 15.11 Degree |
| Flute Helix Angle (Degree) | 28 Degree |
| Rake Radial Angle (Degree) | -1 Degree |
| Maximum Ramping Angle (Degree) | 0.5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | JMB112 |
| Cutting Geometry Type Technical | JMB112 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | HXT |

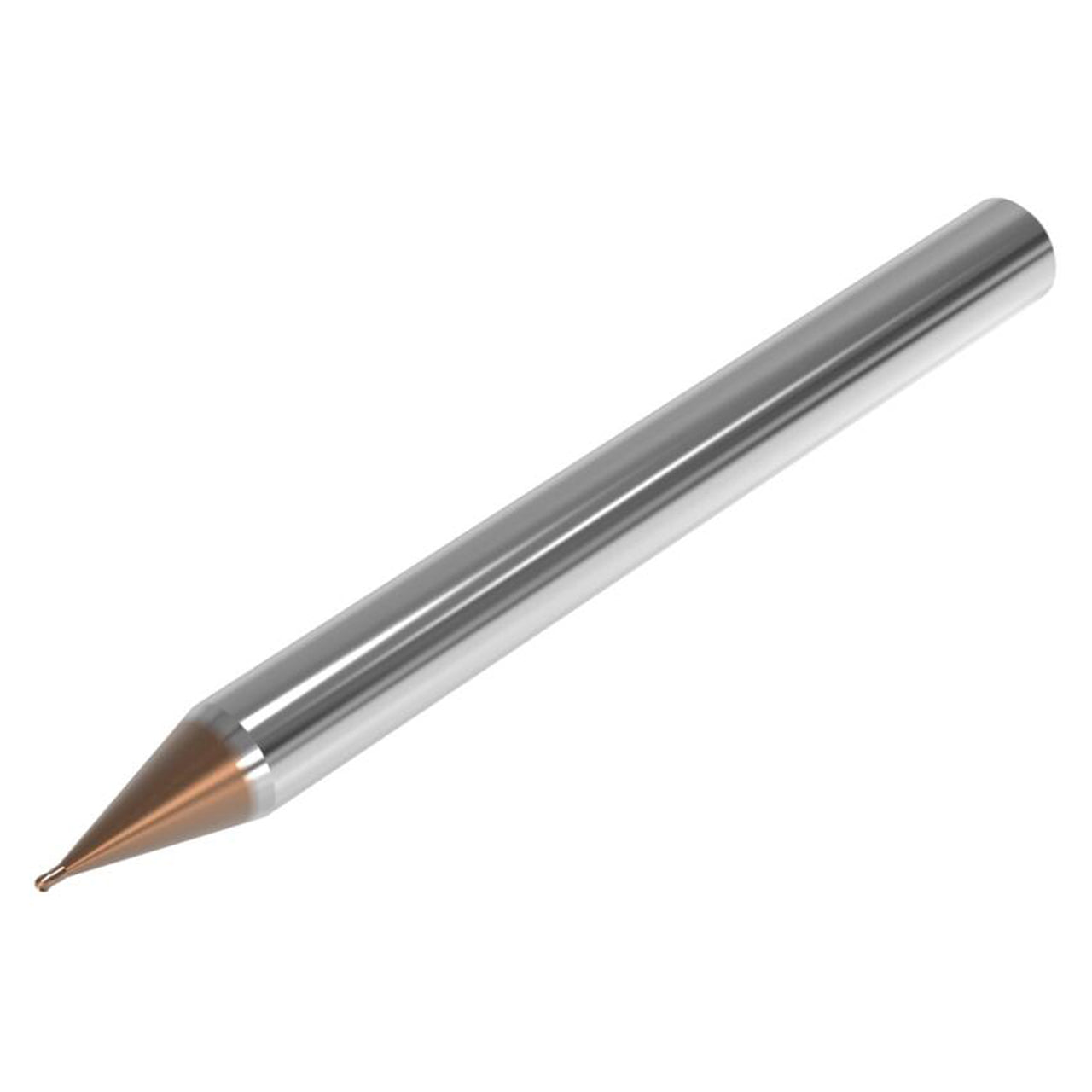

| Product Type | Ball End Mill |
