Product Specifications
| Manufacturer Part Number | 03201534 |
| Body Diameter (Decimal Inch) | 3.750" |
| Body Diameter (mm) | 95.25mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 2.000" |
| Minimum Connection Bore Diameter (mm) | 50.80mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 2.000" |
| Maximum Connection Bore Diameter (mm) | 50.80mm |
| Body Length (Decimal Inch) | 4.875" |
| Body Length (mm) | 123.83mm |
| Functional Length Secondary (Decimal Inch) | 4.219" |
| Functional Length Secondary (mm) | 107.17mm |
| Protruding Length (Decimal Inch) | 5.620" |
| Protruding Length (mm) | 142.75mm |
| Clamping Length (Decimal Inch) | 3.250" |
| Clamping Length (mm) | 82.55mm |
| Overall Length (Decimal Inch) | 9.625" |
| Overall Length (mm) | 244.48mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |

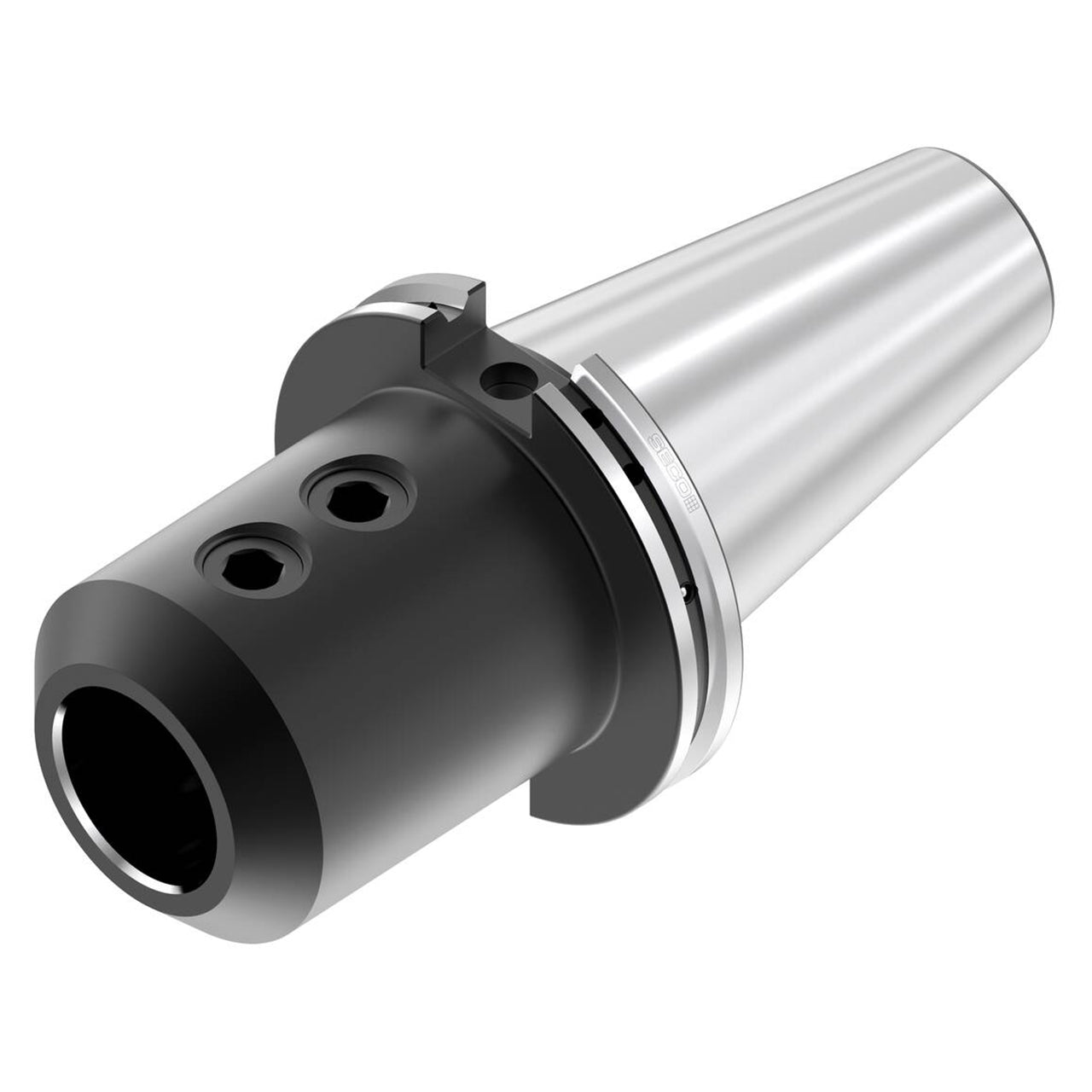

| Product Type | End Mill Holder |
