Product Specifications

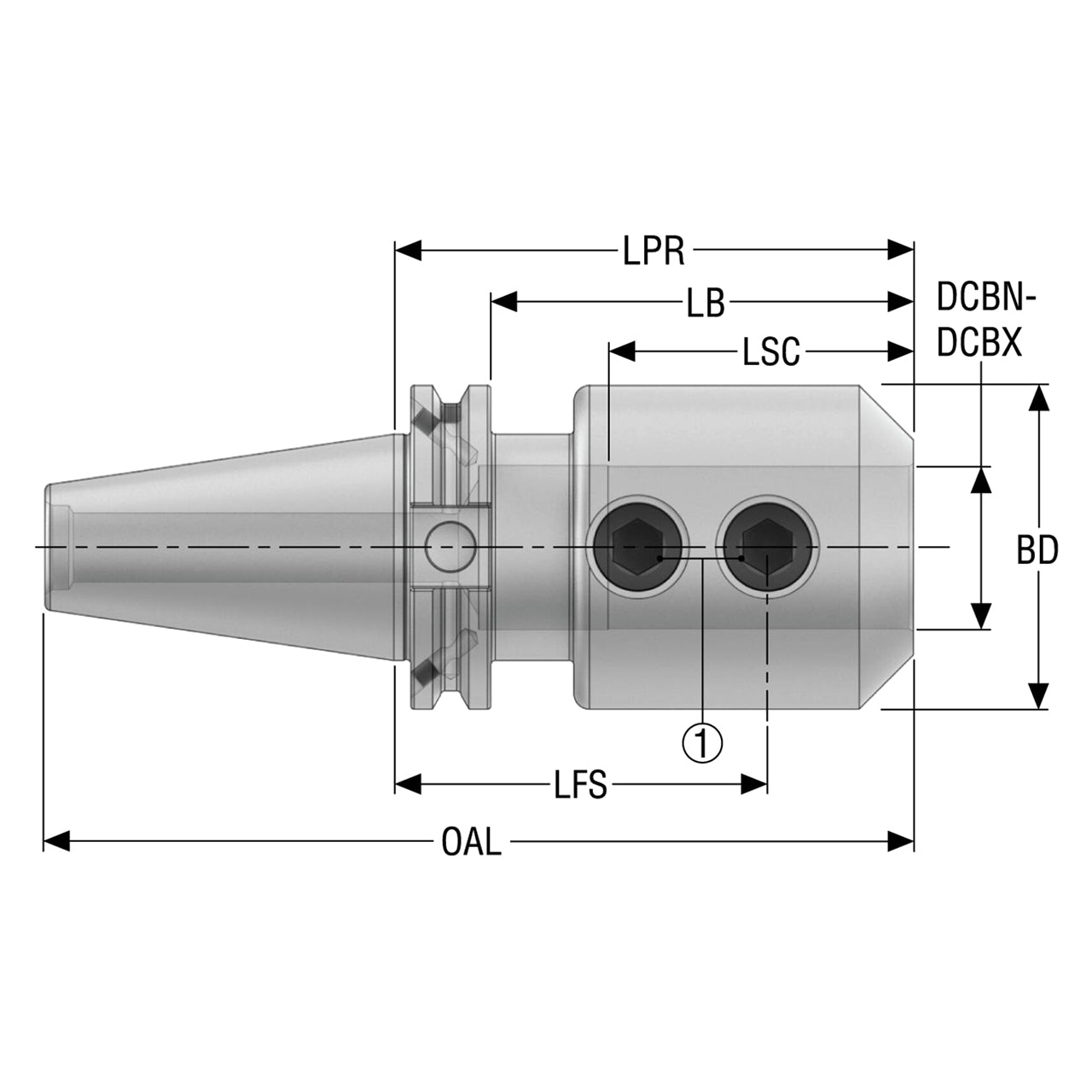

| Manufacturer Part Number | 03201533 |
| Body Diameter (Decimal Inch) | 2.750" |
| Body Diameter (mm) | 69.85mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.500" |
| Minimum Connection Bore Diameter (mm) | 38.10mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.500" |
| Maximum Connection Bore Diameter (mm) | 38.10mm |
| Body Length (Decimal Inch) | 5.250" |
| Body Length (mm) | 133.35mm |
| Functional Length Secondary (Decimal Inch) | 4.875" |
| Functional Length Secondary (mm) | 123.83mm |
| Protruding Length (Decimal Inch) | 6.000" |
| Protruding Length (mm) | 152.40mm |
| Clamping Length (Decimal Inch) | 3.000" |
| Clamping Length (mm) | 76.20mm |
| Overall Length (Decimal Inch) | 10.000" |
| Overall Length (mm) | 254.00mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |

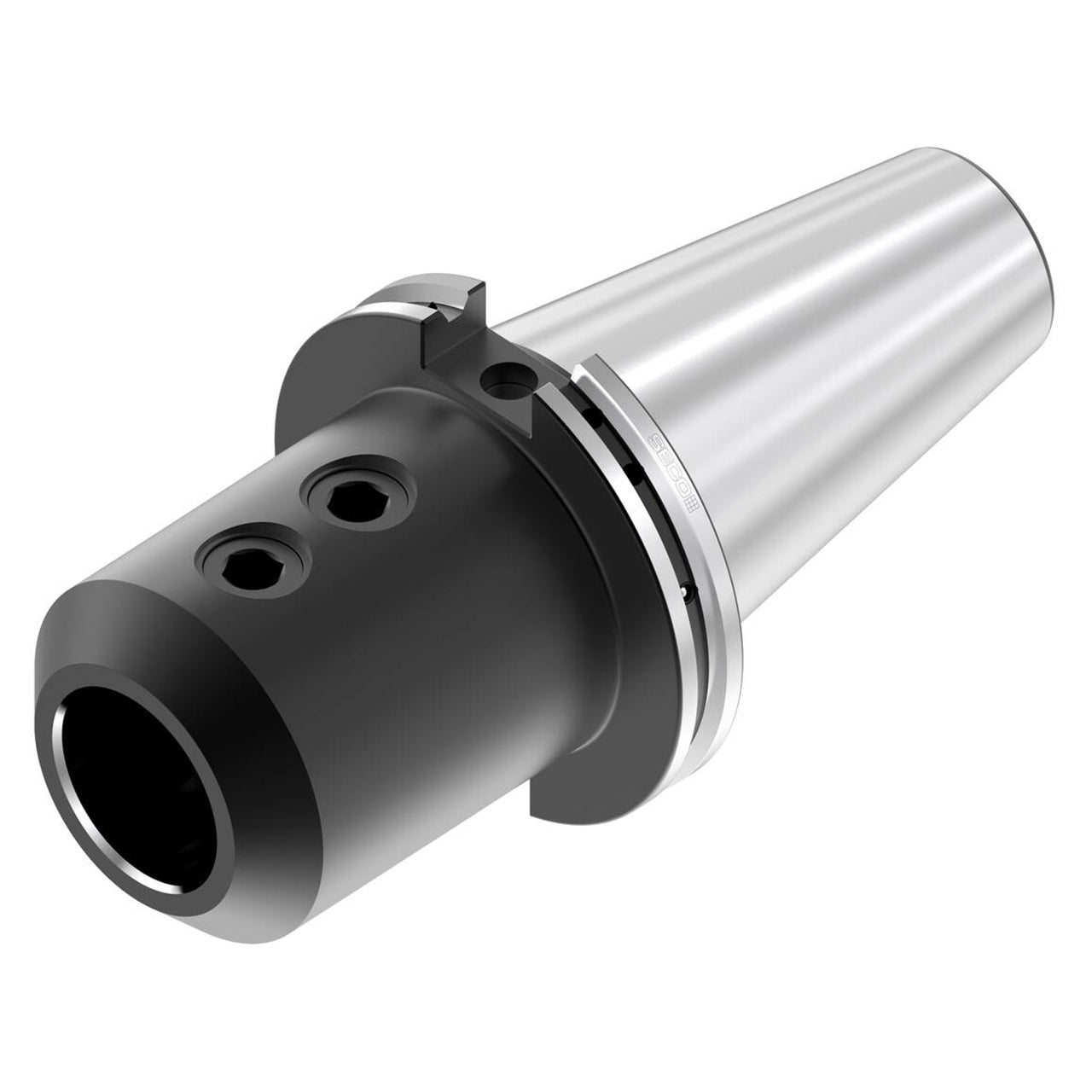

| Product Type | End Mill Holder |
