Product Specifications

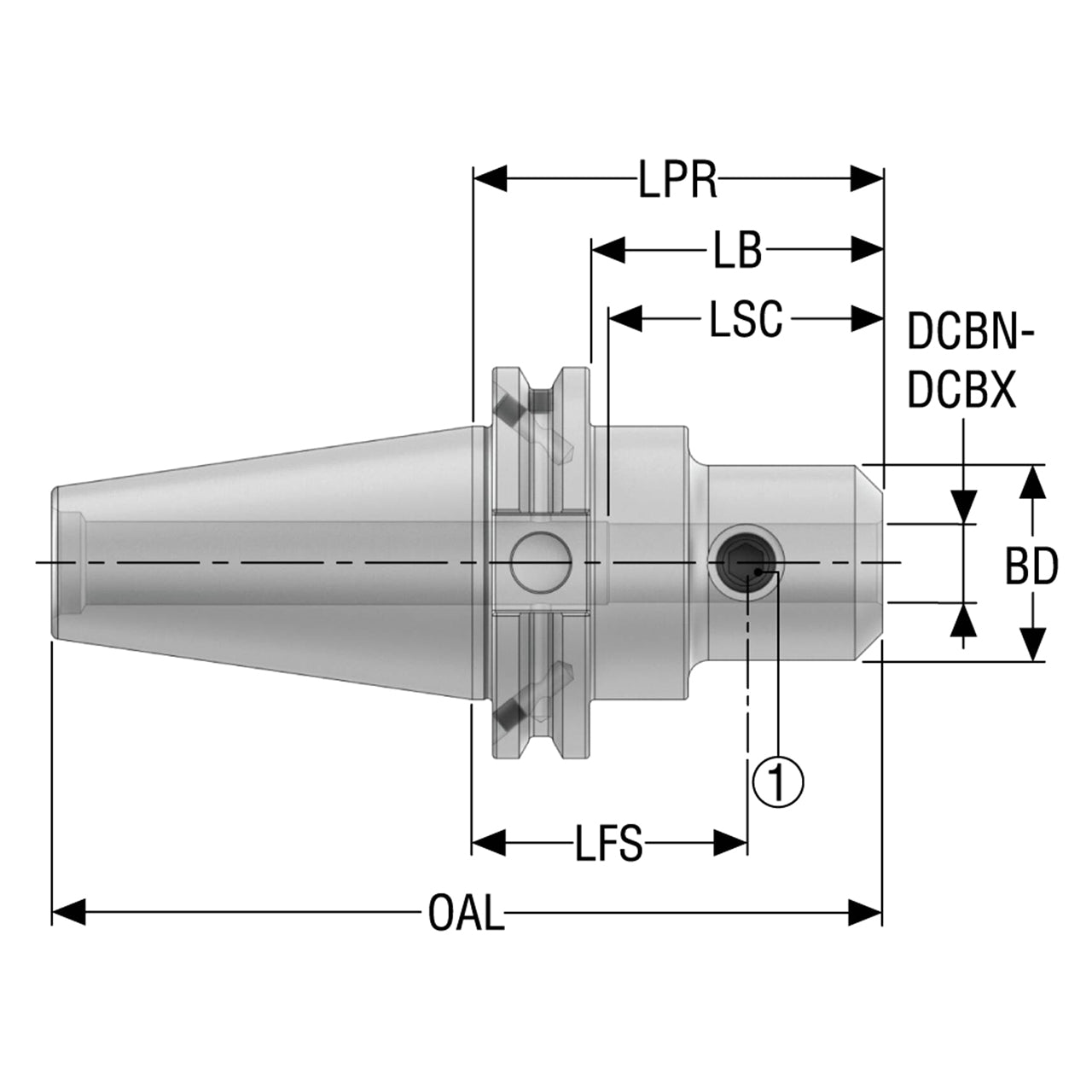

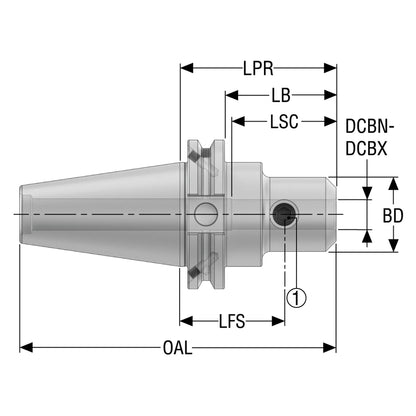

| Manufacturer Part Number | 03201522 |
| Body Diameter (Decimal Inch) | 1.750" |
| Body Diameter (mm) | 44.45mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Minimum Connection Bore Diameter (mm) | 19.05mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.750" |
| Maximum Connection Bore Diameter (mm) | 19.05mm |
| Body Length (Decimal Inch) | 3.000" |
| Body Length (mm) | 76.20mm |
| Functional Length Secondary (Decimal Inch) | 2.750" |
| Functional Length Secondary (mm) | 69.85mm |
| Protruding Length (Decimal Inch) | 3.750" |
| Protruding Length (mm) | 95.25mm |
| Clamping Length (Decimal Inch) | 2.000" |
| Clamping Length (mm) | 50.80mm |
| Overall Length (Decimal Inch) | 7.750" |
| Overall Length (mm) | 196.85mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |

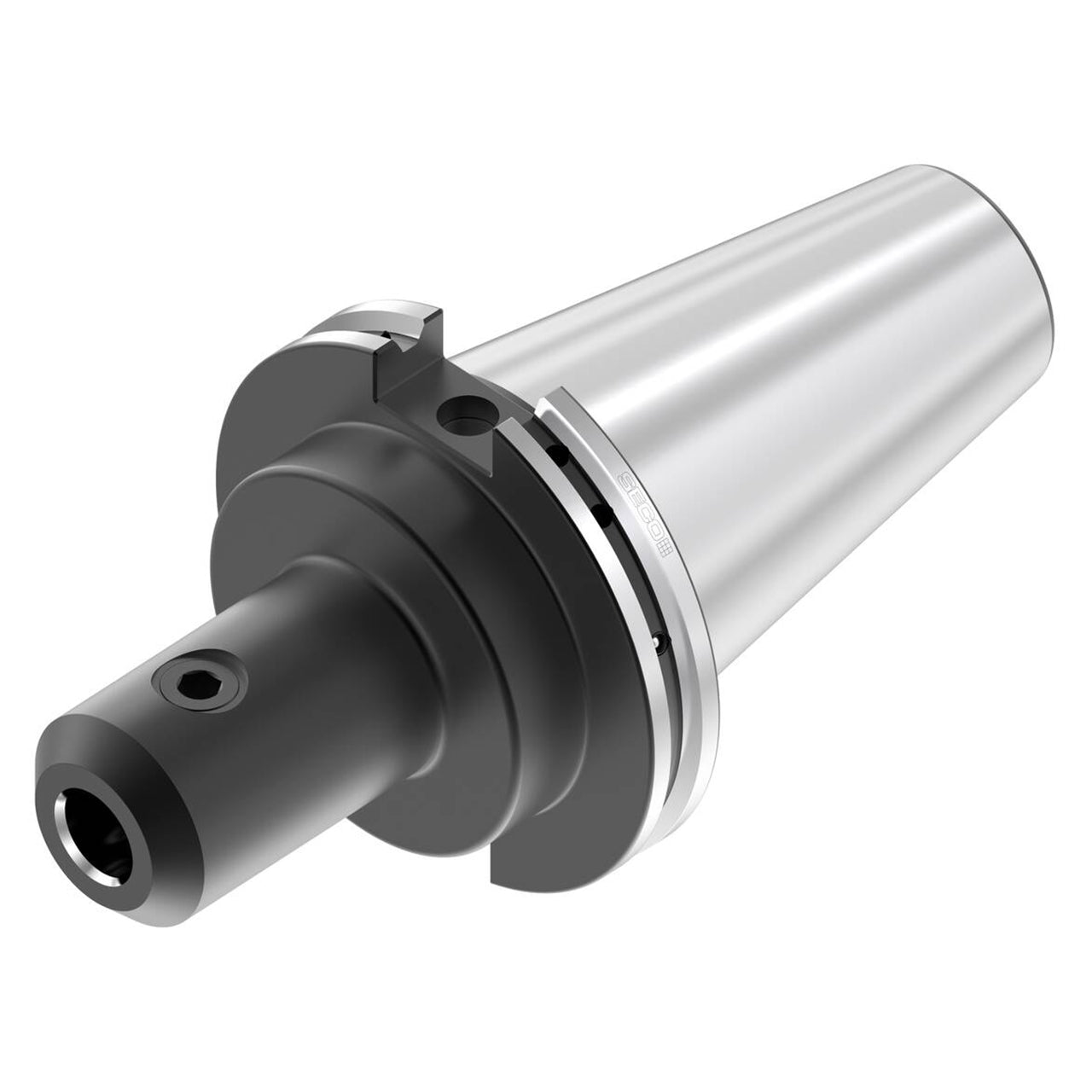

| Product Type | End Mill Holder |
