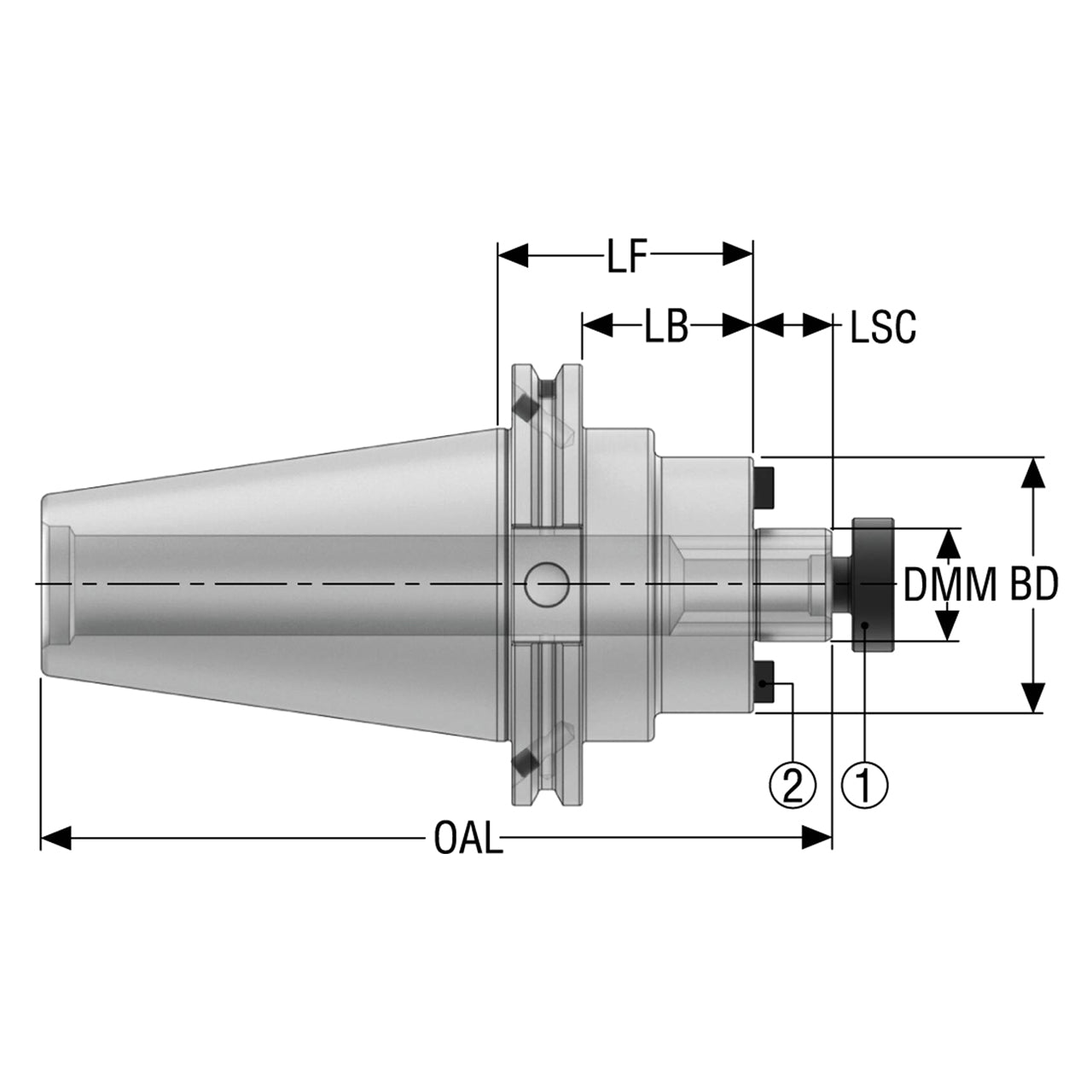

Product Specifications
| Manufacturer Part Number | 03197145 |
| Body Diameter (Decimal Inch) | 2.250" |
| Body Diameter (mm) | 57.15mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Body Length (Decimal Inch) | 1.500" |
| Body Length (mm) | 38.10mm |
| Functional Length (Decimal Inch) | 2.250" |
| Functional Length (mm) | 57.15mm |
| Clamping Length (Decimal Inch) | 0.687" |
| Clamping Length (mm) | 17.45mm |
| Overall Length (Decimal Inch) | 6.937" |
| Overall Length (mm) | 176.20mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |

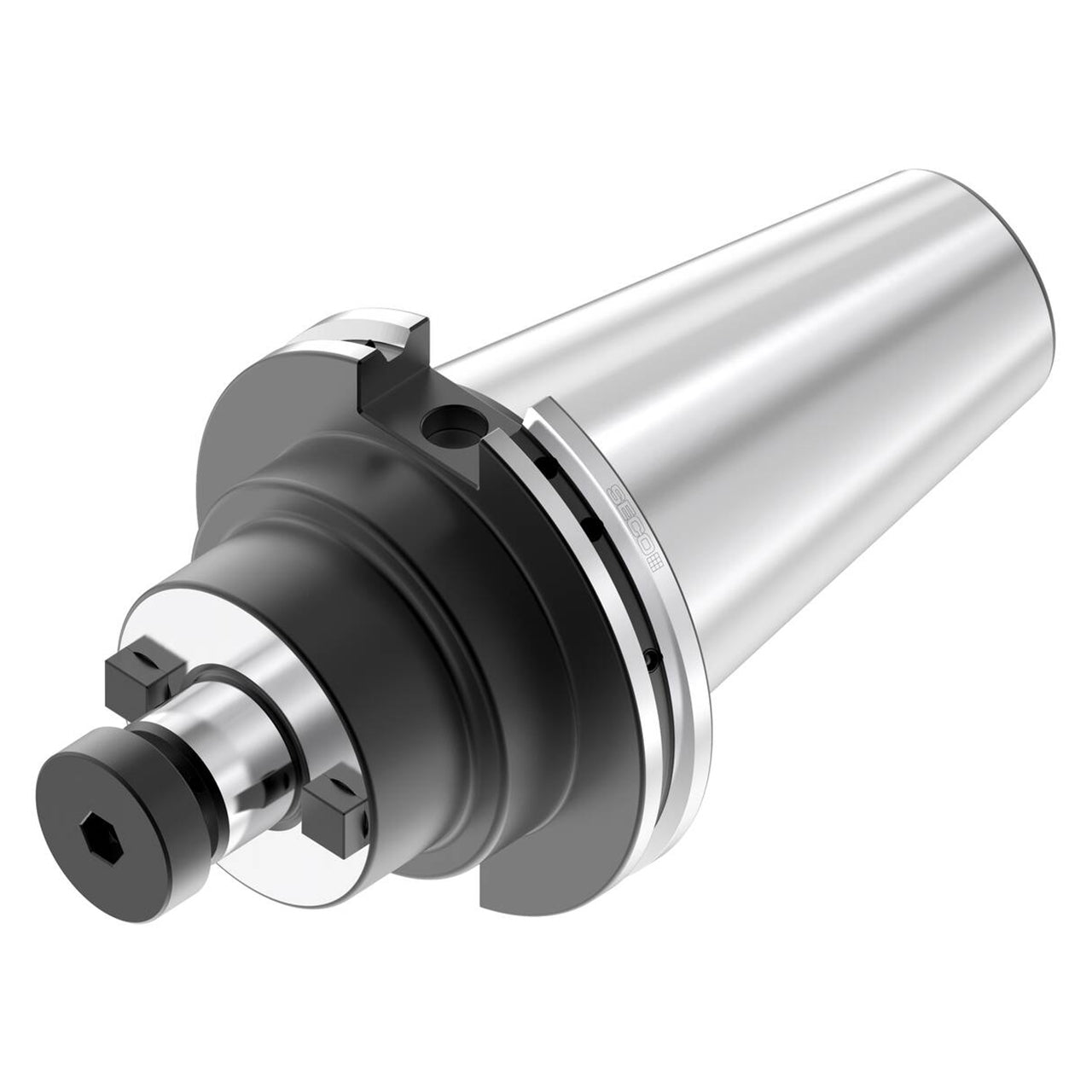

| Product Type | Shell Mill Holder |
