Product Specifications

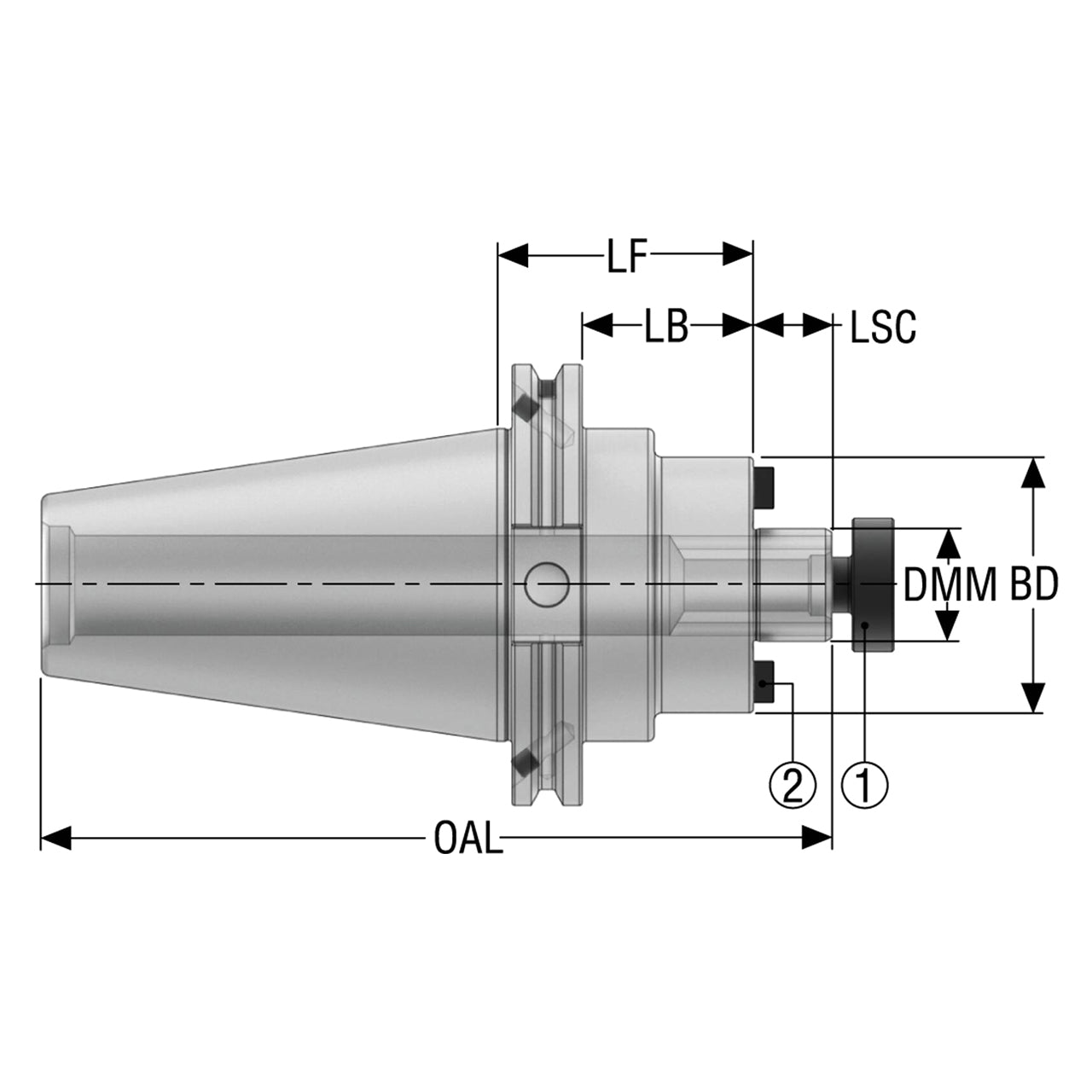

| Manufacturer Part Number | 03197143 |
| Body Diameter (Decimal Inch) | 1.750" |
| Body Diameter (mm) | 44.45mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 0.750" |
| Connection Diameter Workpiece Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Body Length (Decimal Inch) | 4.750" |
| Body Length (mm) | 120.65mm |
| Functional Length (Decimal Inch) | 5.500" |
| Functional Length (mm) | 139.70mm |
| Clamping Length (Decimal Inch) | 0.687" |
| Clamping Length (mm) | 17.45mm |
| Overall Length (Decimal Inch) | 10.187" |
| Overall Length (mm) | 258.75mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 12000 rpm |

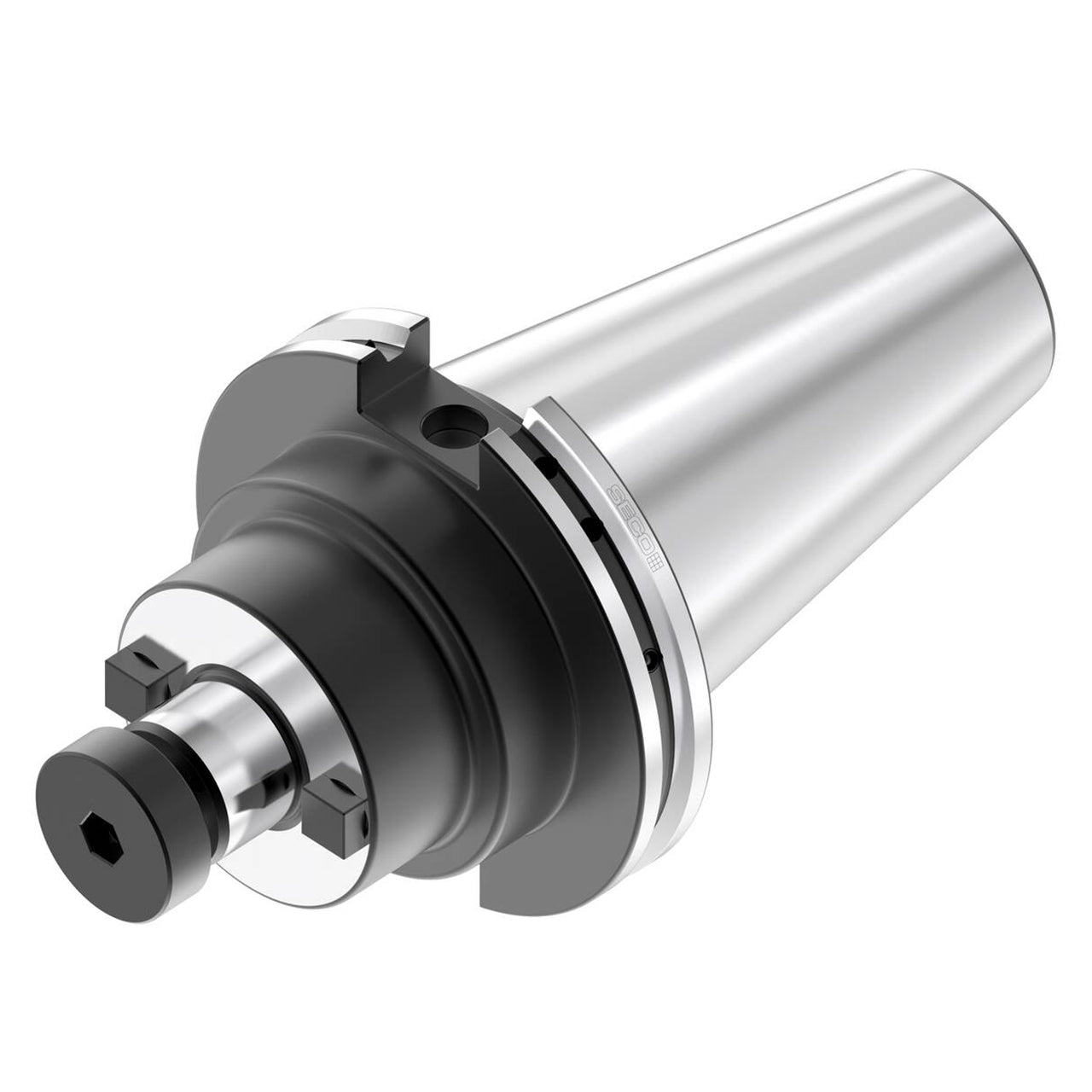

| Product Type | Shell Mill Holder |
