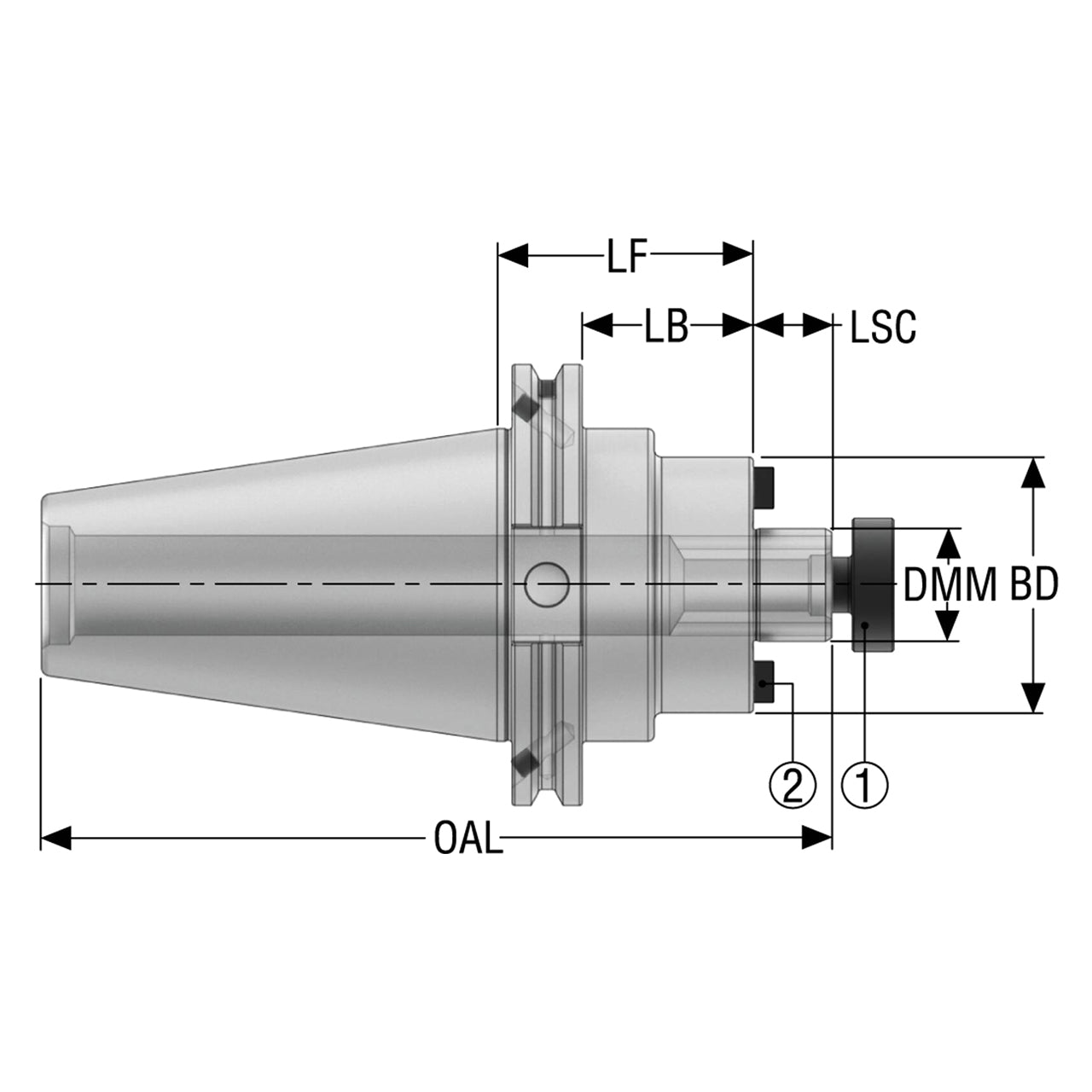

Product Specifications
| Manufacturer Part Number | 03197134 |
| Body Diameter (Decimal Inch) | 2.750" |
| Body Diameter (mm) | 69.85mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 1.250" |
| Connection Diameter Workpiece Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Body Length (Decimal Inch) | 1.500" |
| Body Length (mm) | 38.10mm |
| Functional Length (Decimal Inch) | 2.250" |
| Functional Length (mm) | 57.15mm |
| Clamping Length (Decimal Inch) | 0.687" |
| Clamping Length (mm) | 17.45mm |
| Overall Length (Decimal Inch) | 5.624" |
| Overall Length (mm) | 142.85mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |

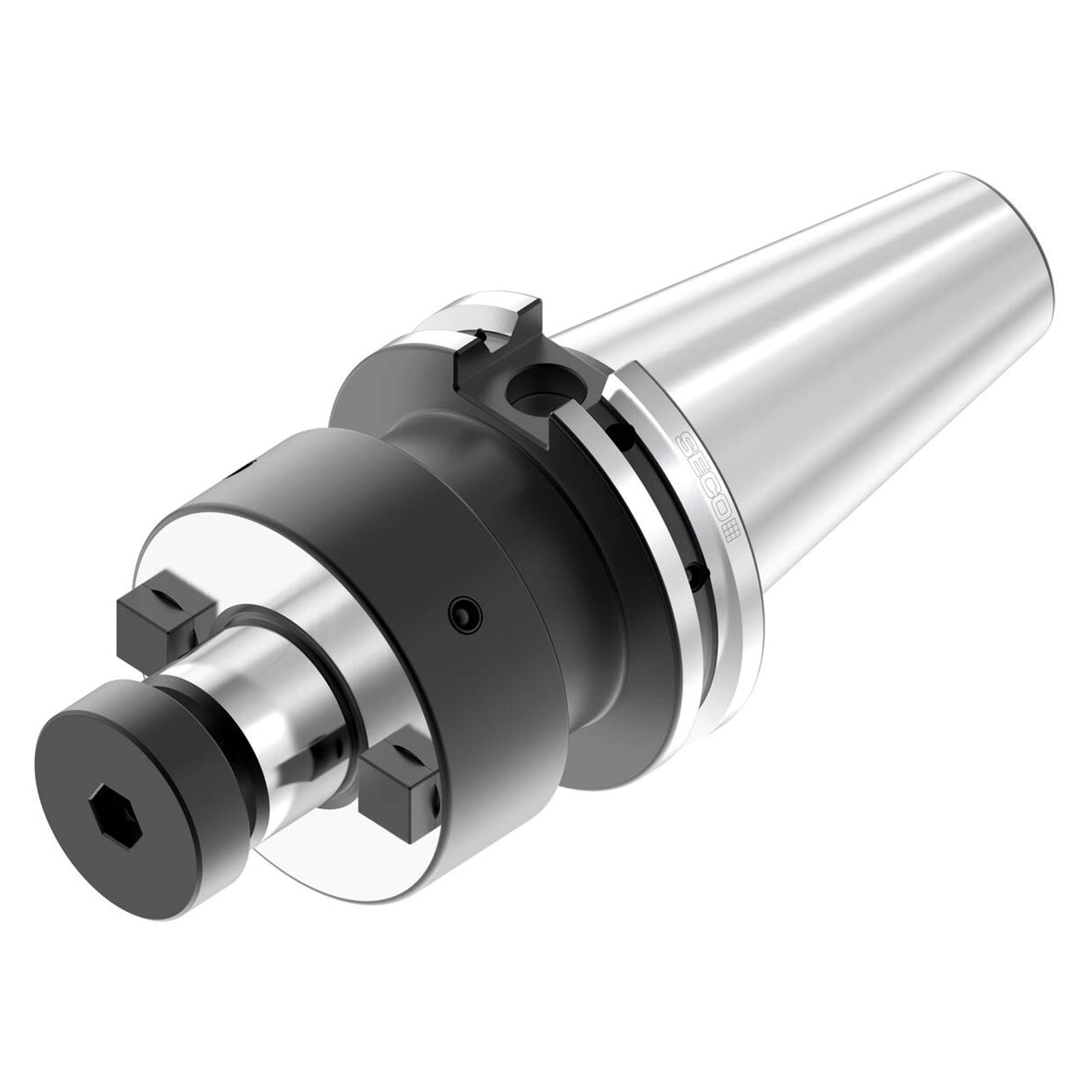

| Product Type | Shell Mill Holder |
