Product Specifications
| Manufacturer Part Number | 03187138 |

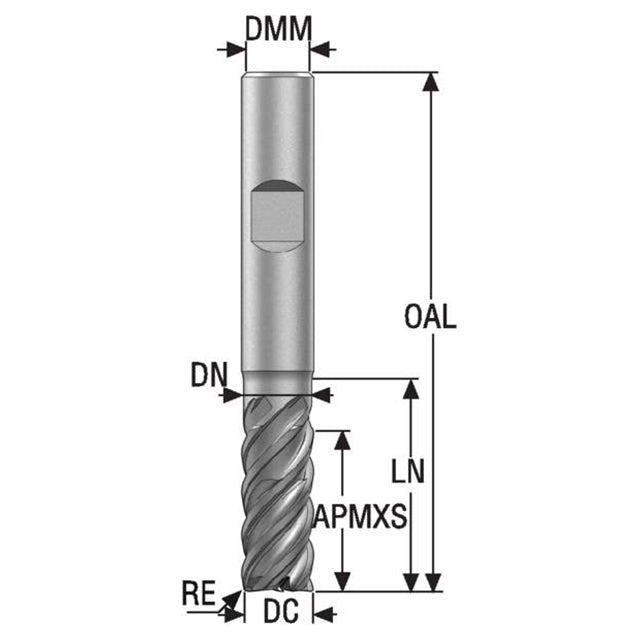

| Cutting Diameter (mm) | 20.00mm |
| Cutting Diameter 1 (mm) | 20.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Neck Diameter (mm) | 19.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 27.40mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 26.00mm |
| Overall Length (mm) | 125.00mm |
| Neck Length (mm) | 72.00mm |
| Neck Length 1 (mm) | 72.00mm |
| Cutting Edge Effective Length (mm) | 61.00mm |
| Maximum Depth of Cut (mm) | 61.00mm |
| Corner Radius (mm) | 6.00mm |
| Shank Type | Weldon |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 5 |
| Cutting Geometry Type | JS755 |
| Cutting Geometry Type Technical | JS755 |
| Face Cutting Edge Count | 5 |
| Flute Helix Angle (Degree) | 48 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 8 Degree |
| Axial Rake Angle (Degree) | 48 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 5 |
| Material | Carbide |
| Coating | HXT |

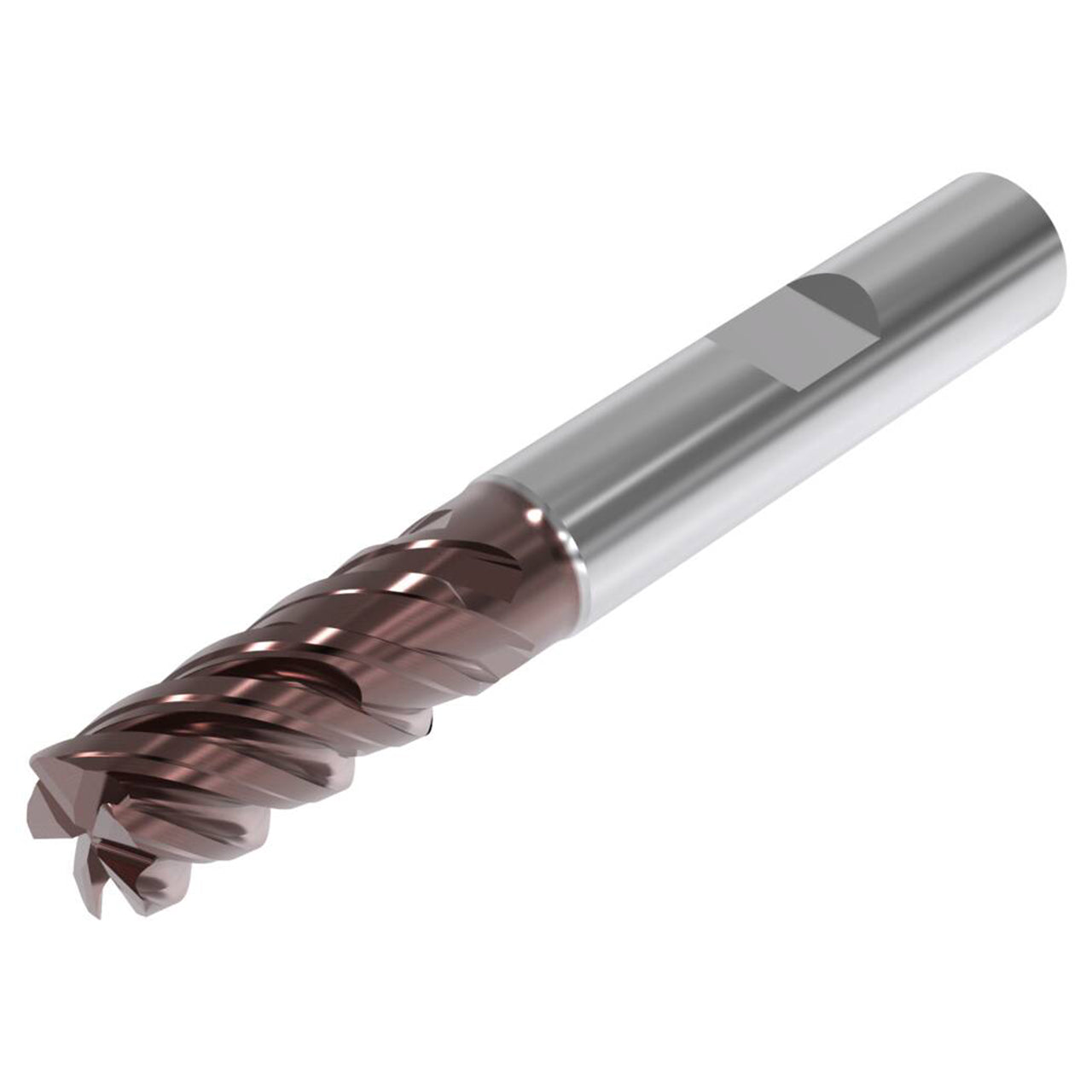

| Product Type | Corner Radius End Mill |
