Product Specifications
| Manufacturer Part Number | 03180083 |
| Body Diameter 1 (Decimal Inch) | 1.299" |
| Body Diameter 1 (mm) | 33.00mm |
| Body Diameter 2 (Decimal Inch) | 1.654" |
| Body Diameter 2 (mm) | 42.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Thread Diameter Size | M16x1 |
| Body Length (Decimal Inch) | 2.992" |
| Body Length (mm) | 76.00mm |
| Functional Length (Decimal Inch) | 2.520" |
| Functional Length (mm) | 64.00mm |
| Minimum Functional Length (Decimal Inch) | 2.008" |
| Protruding Length (Decimal Inch) | 4.134" |
| Protruding Length (mm) | 105.00mm |
| Clamping Length (Decimal Inch) | 1.614" |
| Clamping Length (mm) | 41.00mm |
| Overall Length (Decimal Inch) | 6.102" |
| Overall Length (mm) | 155.00mm |
| Connection Bore Depth (mm) | 55.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.709" |
| Radial Location (mm) | 18.00mm |

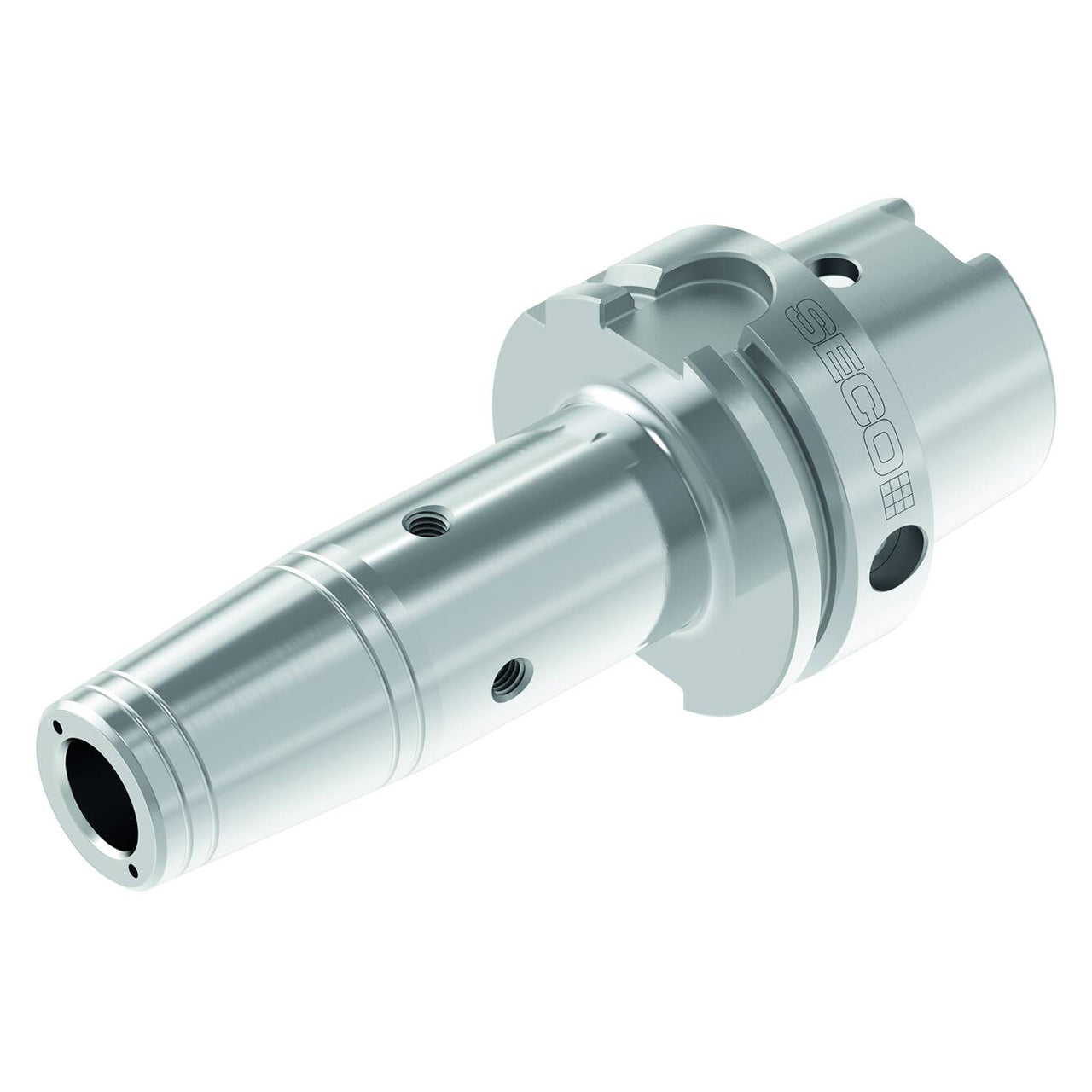

| Product Type | Shrink-Fit Tool Holder |
