Product Specifications
| Manufacturer Part Number | 03166971 |

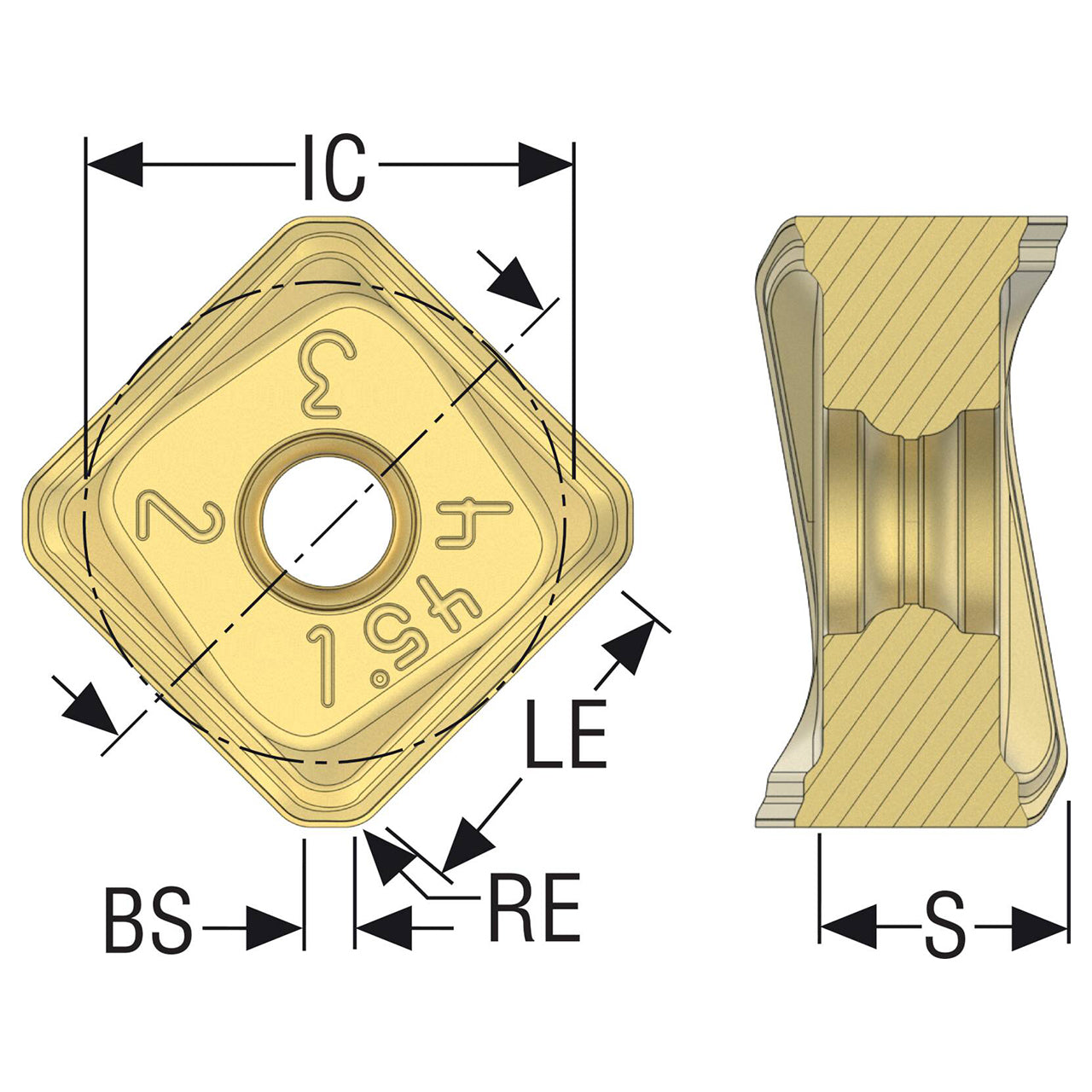

| Inscribed Circle Diameter (Decimal Inch) | 0.866" |
| Inscribed Circle Diameter (mm) | 22.00mm |
| Wiper Edge Length (Decimal Inch) | 0.059" |
| Wiper Edge Length (mm) | 1.50mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.583" |
| Cutting Edge Effective Length (mm) | 14.80mm |
| Corner Radius (Decimal Inch) | 0.079" |
| Corner Radius (mm) | 2.00mm |
| Insert Thickness (Decimal Inch) | 0.347" |
| Insert Thickness (mm) | 8.81mm |
| Insert Thickness 1 (Decimal Inch) | 0.250" |
| Insert Thickness 1 (mm) | 6.35mm |
| Cutting Edge Count | 8 |
| Cutting Geometry Type Technical | M18 |
| Pocket Seat Code of The Cutter | SN.X2209AN.R |
| Insert Size And Shape | SNMX2209AN.R |
| Insert Rake Angle (Degree) | 25 Degree |
| Insert Hand | Right Hand |
| Material | Carbide |

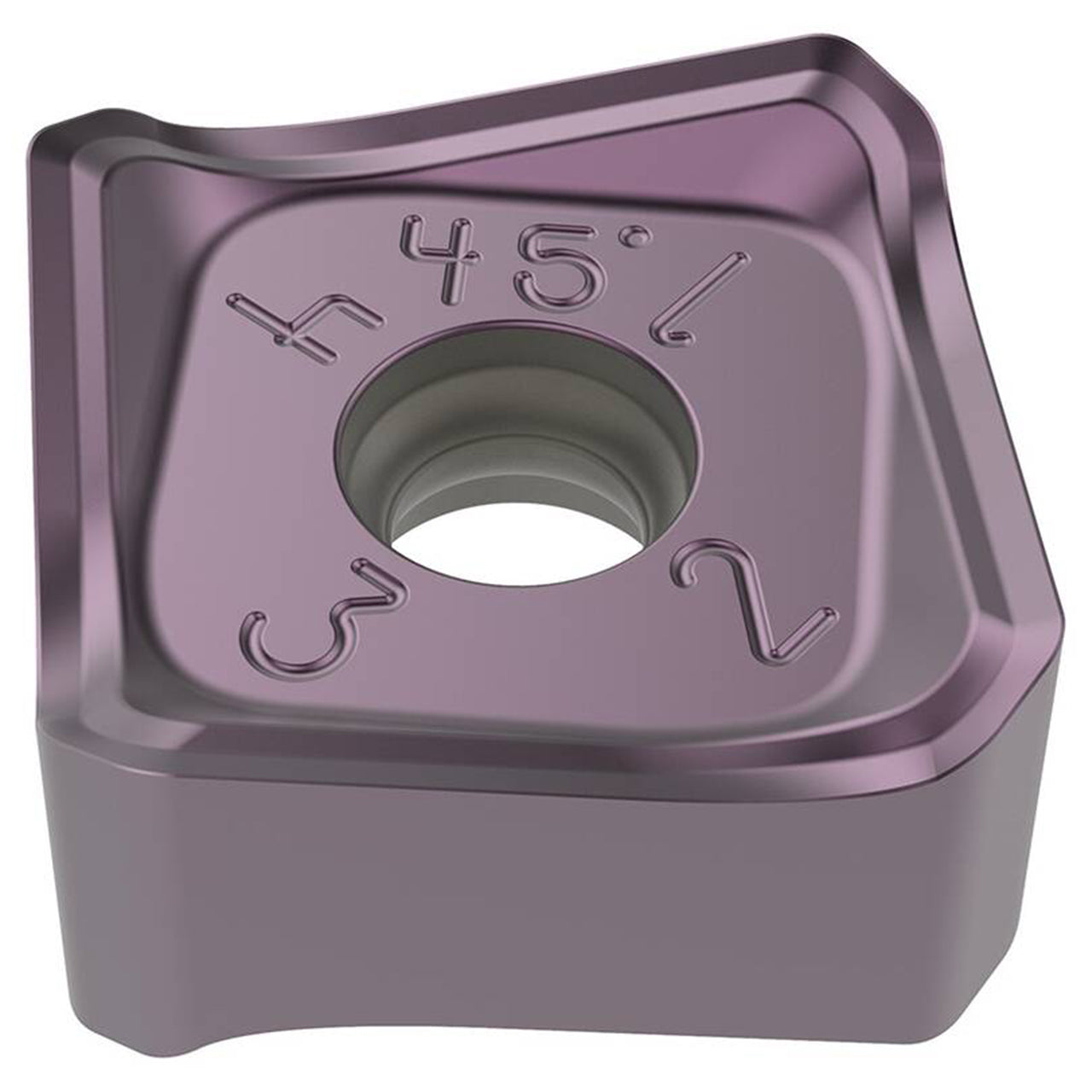

| Product Type | Milling Insert |
