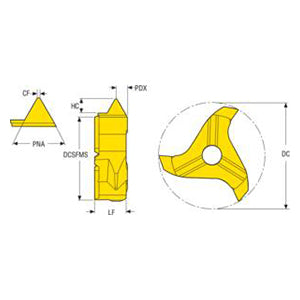

Product Specifications
| Manufacturer Part Number | 03137320 |
| Cutting Diameter (Decimal Inch) | 1.091" |
| Cutting Diameter (mm) | 27.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.551" |
| Contact Surface Diameter Machine Side (mm) | 14.00mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Functional Length (Decimal Inch) | 0.260" |
| Functional Length (mm) | 6.60mm |
| Spot Chamfer (Decimal Inch) | 0.020" |
| Spot Chamfer (mm) | 0.50mm |
| Minimum Thread Pitch (Decimal Inch) | 0.1575 |
| Minimum Thread Pitch (mm) | 4.0 |
| Maximum Thread Pitch (Decimal Inch) | 0.2362 |
| Maximum Thread Pitch (mm) | 6.0 |
| Cutting Edge Count | 1 |
| Material | Carbide |
| Tooth Count | 1 |
| Profile Included Angle (Degree) | 60 Degree |

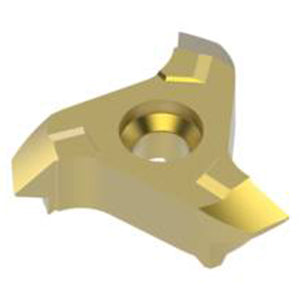

| Product Type | Thread Mill Insert |
