Product Specifications

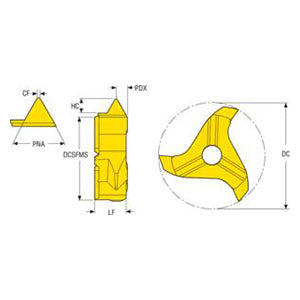

| Manufacturer Part Number | 03137316 |
| Cutting Diameter (Decimal Inch) | 0.854" |
| Cutting Diameter (mm) | 21.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.472" |
| Contact Surface Diameter Machine Side (mm) | 12.00mm |
| Corner Radius (Decimal Inch) | 0.010" |
| Corner Radius (mm) | 0.25mm |
| Functional Length (Decimal Inch) | 0.230" |
| Functional Length (mm) | 5.85mm |
| Spot Chamfer (Decimal Inch) | 0.010" |
| Spot Chamfer (mm) | 0.25mm |
| Minimum Thread Pitch (Decimal Inch) | 0.0787 |
| Minimum Thread Pitch (mm) | 2.0 |
| Maximum Thread Pitch (Decimal Inch) | 0.1476 |
| Maximum Thread Pitch (mm) | 3.75 |
| Cutting Edge Count | 1 |
| Material | Carbide |
| Tooth Count | 1 |
| Profile Included Angle (Degree) | 60 Degree |

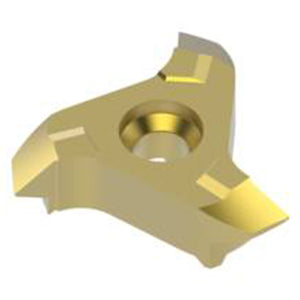

| Product Type | Thread Mill Insert |
