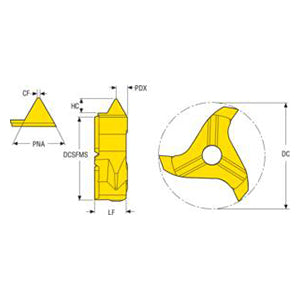

Product Specifications
| Manufacturer Part Number | 03137314 |
| Cutting Diameter (Decimal Inch) | 0.697" |
| Cutting Diameter (mm) | 17.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.354" |
| Contact Surface Diameter Machine Side (mm) | 9.00mm |
| Corner Radius (Decimal Inch) | 0.015" |
| Corner Radius (mm) | 0.38mm |
| Functional Length (Decimal Inch) | 0.230" |
| Functional Length (mm) | 5.85mm |
| Spot Chamfer (Decimal Inch) | 0.015" |
| Spot Chamfer (mm) | 0.38mm |
| Minimum Thread Pitch (Decimal Inch) | 0.1181 |
| Minimum Thread Pitch (mm) | 3.0 |
| Maximum Thread Pitch (Decimal Inch) | 0.2165 |
| Maximum Thread Pitch (mm) | 5.5 |
| Cutting Edge Count | 1 |
| Material | Carbide |
| Tooth Count | 1 |
| Profile Included Angle (Degree) | 60 Degree |

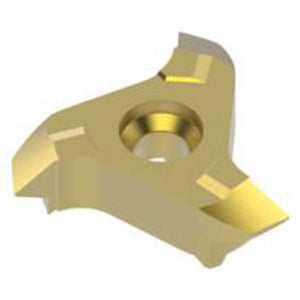

| Product Type | Thread Mill Insert |
