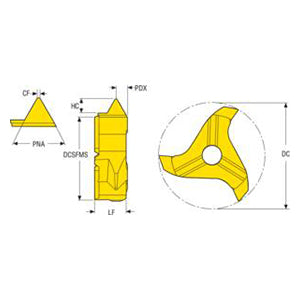

Product Specifications
| Manufacturer Part Number | 03137282 |
| Cutting Diameter (Decimal Inch) | 0.697" |
| Cutting Diameter (mm) | 17.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.354" |
| Contact Surface Diameter Machine Side (mm) | 9.00mm |
| Corner Radius (Decimal Inch) | 0.005" |
| Corner Radius (mm) | 0.13mm |
| Functional Length (Decimal Inch) | 0.230" |
| Functional Length (mm) | 5.85mm |
| Spot Chamfer (Decimal Inch) | 0.005" |
| Spot Chamfer (mm) | 0.13mm |
| Cutting Edge Count | 1 |
| Material | Carbide |
| Tooth Count | 1 |
| Profile Included Angle (Degree) | 60 Degree |

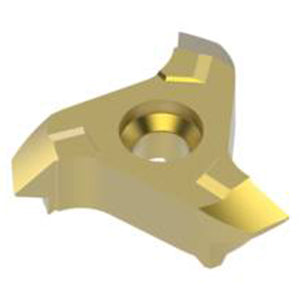

| Product Type | Thread Mill Insert |
