Product Specifications
| Manufacturer Part Number | 03136665 |
| Cutting Diameter (mm) | 35.70mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Maximum Cutting Diameter (mm) | 52.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 102.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 87.70mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 1.80mm |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (mm) | 10.40mm |
| Programming Radius (mm) | 3.03mm |
| Uncut Thickness (mm) | 1.03 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Orthogonal Angle (Degree) | -7 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 0.8 Degree |
| Maximum Rotational Speed (rpm) | 12700 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Arbor |

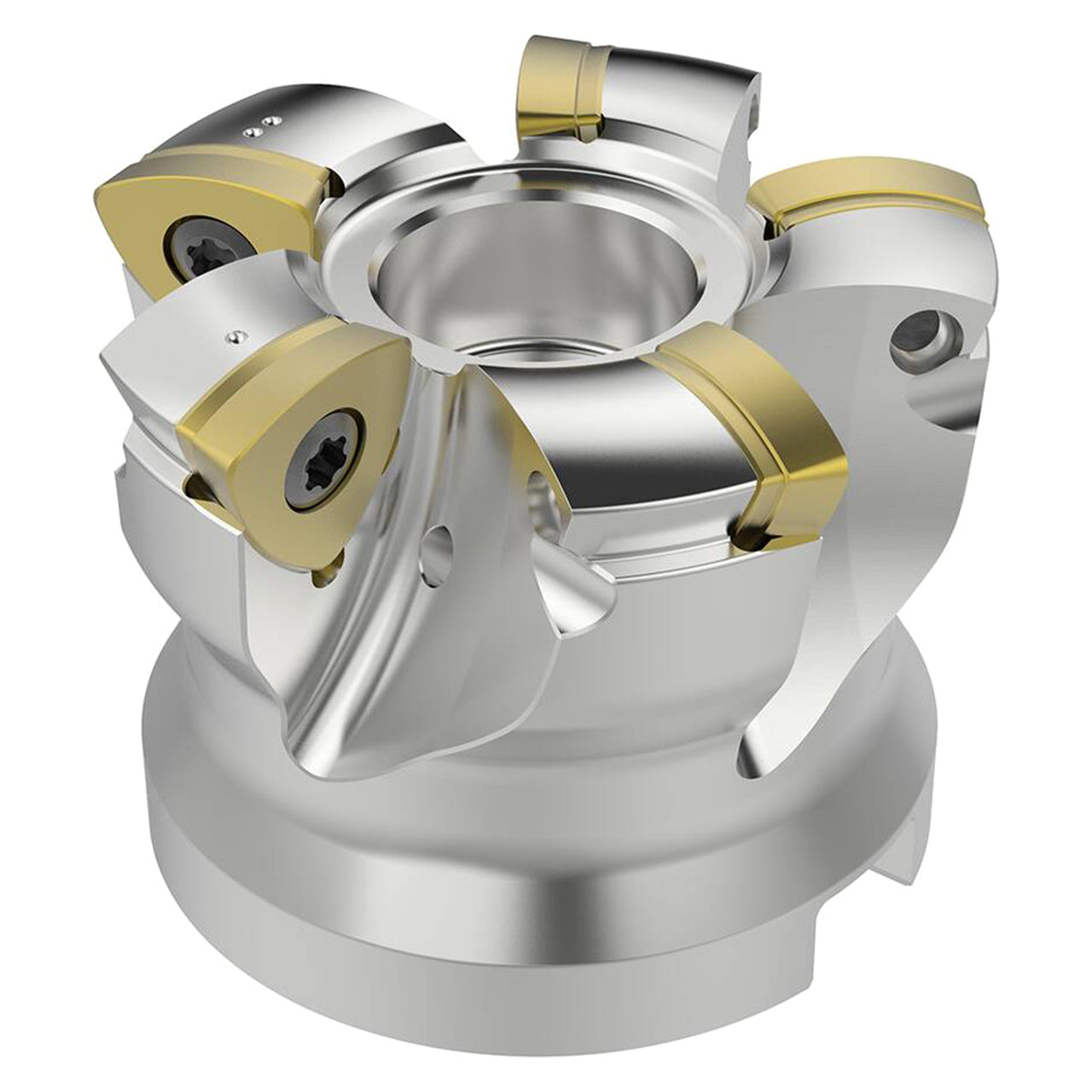

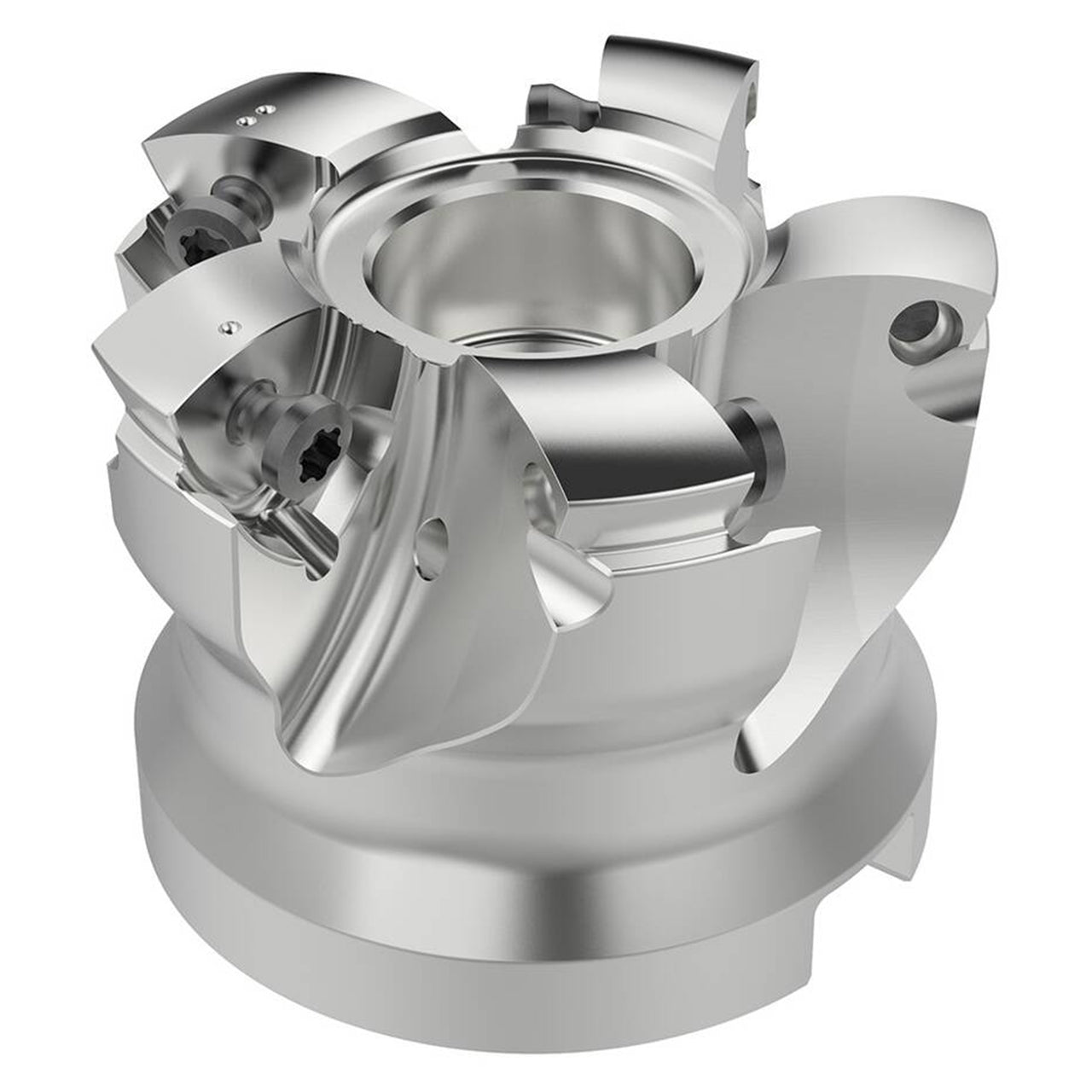

| Product Type | High Feed Trigon Shape Insert |
