Product Specifications
| Manufacturer Part Number | 03135127 |

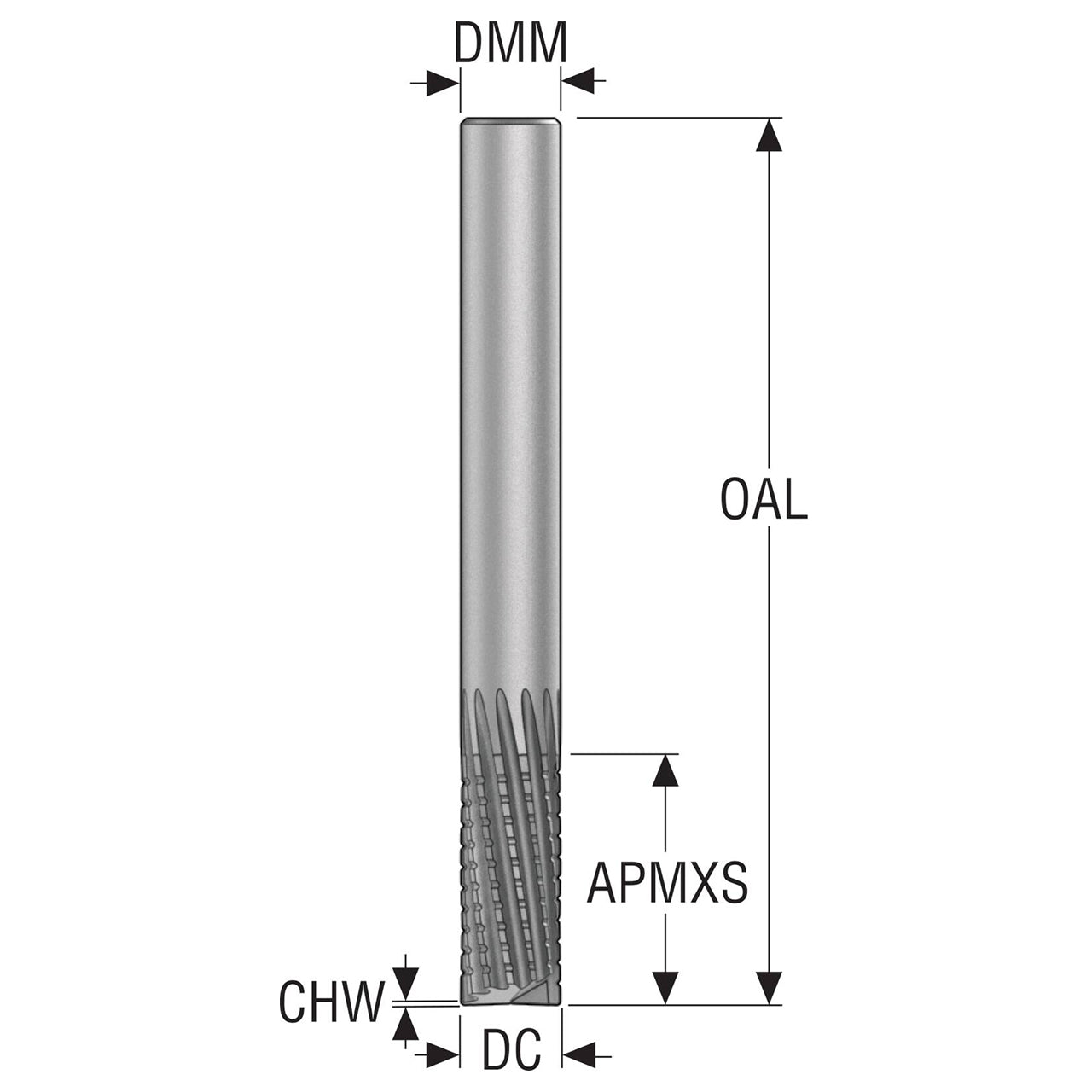

| Cutting Diameter (Decimal Inch) | 0.375" |
| Cutting Diameter (mm) | 9.53mm |
| Cutting Diameter 1 (Decimal Inch) | 0.375" |
| Cutting Diameter 1 (mm) | 9.53mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.375" |
| Connection Diameter Machine Side (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.740" |
| Maximum Helical Interpolation Hole Diameter (mm) | 18.78mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.505" |
| Minimum Helical Interpolation Hole Diameter (mm) | 12.84mm |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Cutting Edge Effective Length (Decimal Inch) | 1.000" |
| Cutting Edge Effective Length (mm) | 25.40mm |
| Maximum Depth of Cut (Decimal Inch) | 1.000" |
| Maximum Depth of Cut (mm) | 25.40mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 12 |
| Cutting Geometry Type | JC876 |
| Cutting Geometry Type Technical | JC876 |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | -10 Degree |
| Flute Helix Direction | Left |
| Axial Rake Angle (Degree) | -10 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Number of Flute | 12 |
| Material | Carbide |
| Coating | DURA |

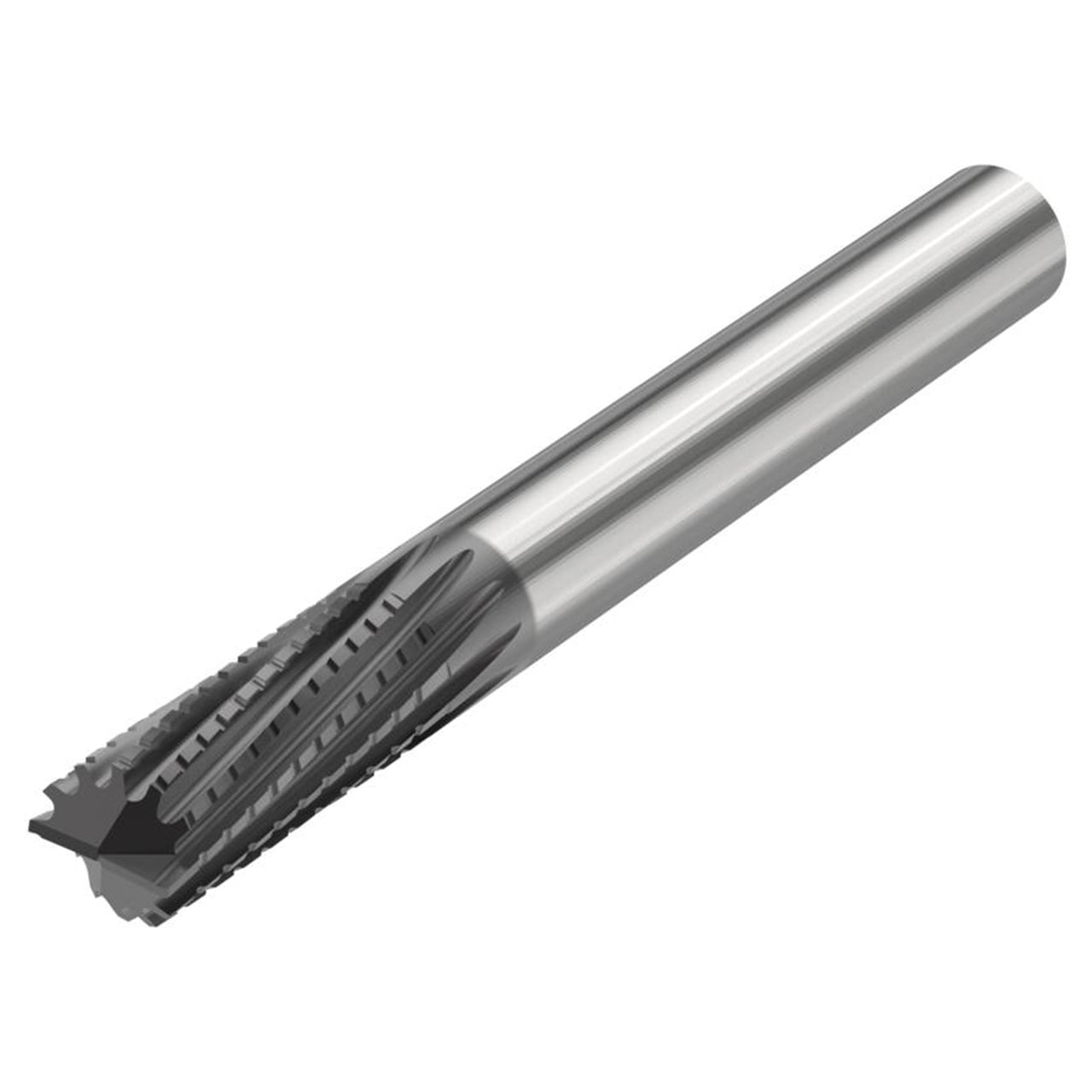

| Product Type | Corner Chamfer End Mill |
