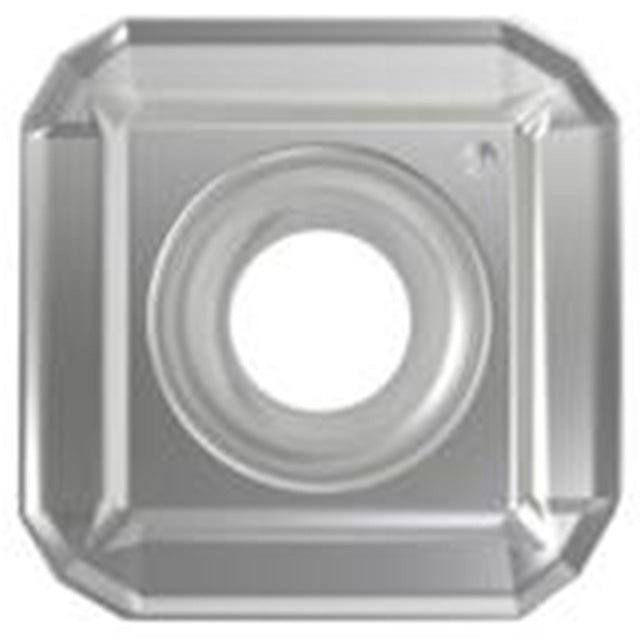

Product Specifications
| Manufacturer Part Number | 03134323 |
| Inscribed Circle Diameter (Decimal Inch) | 0.453" |
| Inscribed Circle Diameter (mm) | 11.51mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | MC |
| Insert Included Angle (Degree) | 90 Degree |
| Material | Carbide |
| Product Type | Indexable Drill Insert |
