Product Specifications
| Manufacturer Part Number | 03131695 |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.492" |
| Minimum Connection Bore Diameter (mm) | 12.50mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.492" |
| Maximum Connection Bore Diameter (mm) | 12.50mm |
| Body Diameter 1 (Decimal Inch) | 1.614" |
| Body Diameter 1 (mm) | 41.00mm |
| Keyway Width (Decimal Inch) | 0.394" |
| Keyway Width (mm) | 10.00mm |
| Body Length (Decimal Inch) | 0.976" |
| Body Length (mm) | 24.80mm |
| Overall Length (Decimal Inch) | 1.811" |
| Overall Length (mm) | 46.00mm |
| Body Half Taper Angle Degree) | 8 Degree |

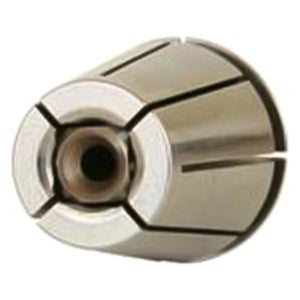

| Product Type | Collet |
