Product Specifications
| Manufacturer Part Number | 03131173 |
| Body Diameter (Decimal Inch) | 3.386" |
| Body Diameter (mm) | 86.00mm |
| Body Diameter 1 (Decimal Inch) | 3.071" |
| Body Diameter 1 (mm) | 78.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.866" |
| Minimum Connection Bore Diameter (mm) | 22.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.260" |
| Maximum Connection Bore Diameter (mm) | 32.00mm |
| Body Length (Decimal Inch) | 5.295" |
| Body Length (mm) | 134.50mm |
| Body Length 1 (Decimal Inch) | 3.012" |
| Body Length 1 (mm) | 76.50mm |
| Protruding Length (Decimal Inch) | 8.189" |
| Protruding Length (mm) | 208.00mm |
| Overall Length (Decimal Inch) | 9.685" |
| Overall Length (mm) | 246.00mm |

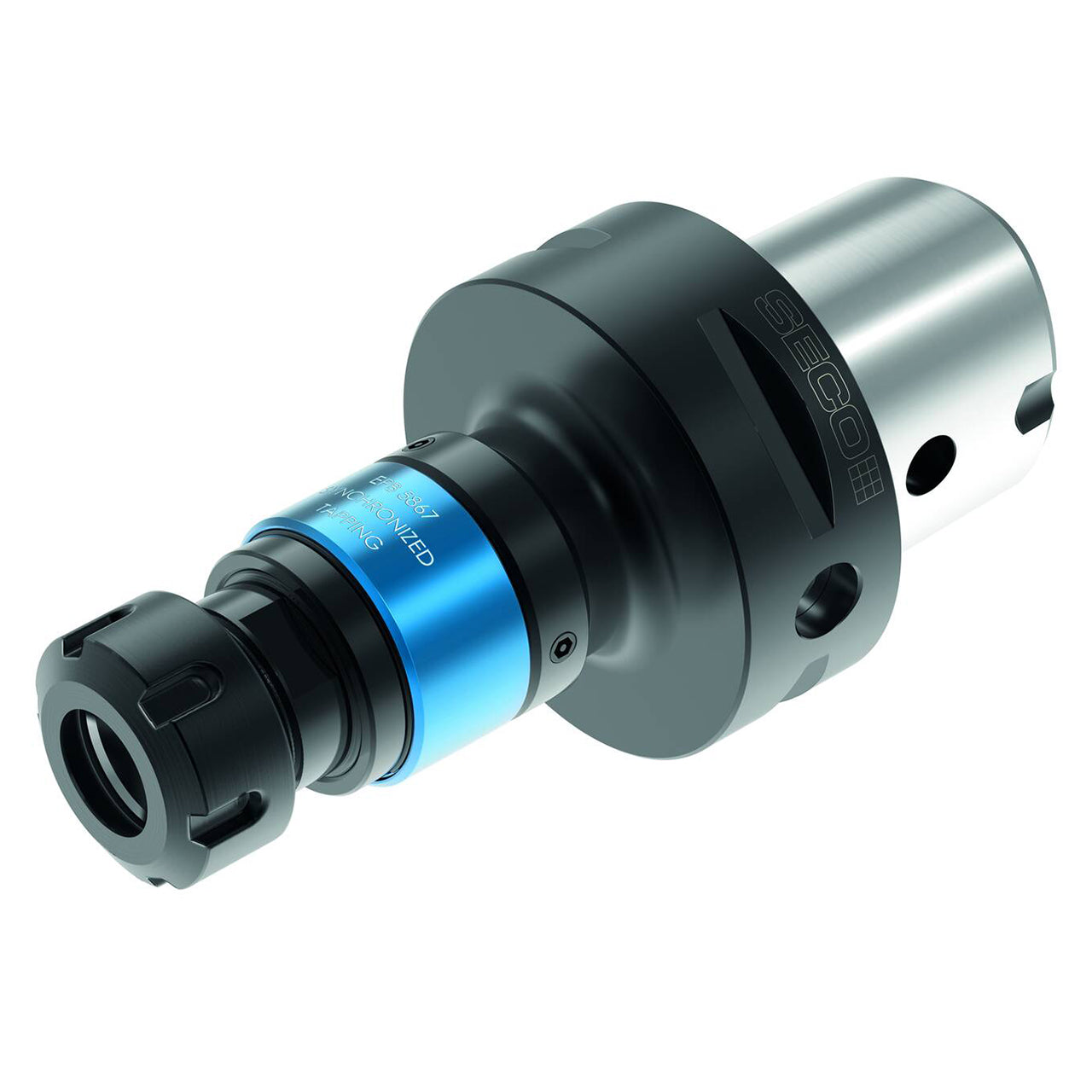

| Product Type | Tapping Chuck |
