Product Specifications
| Manufacturer Part Number | 03131168 |

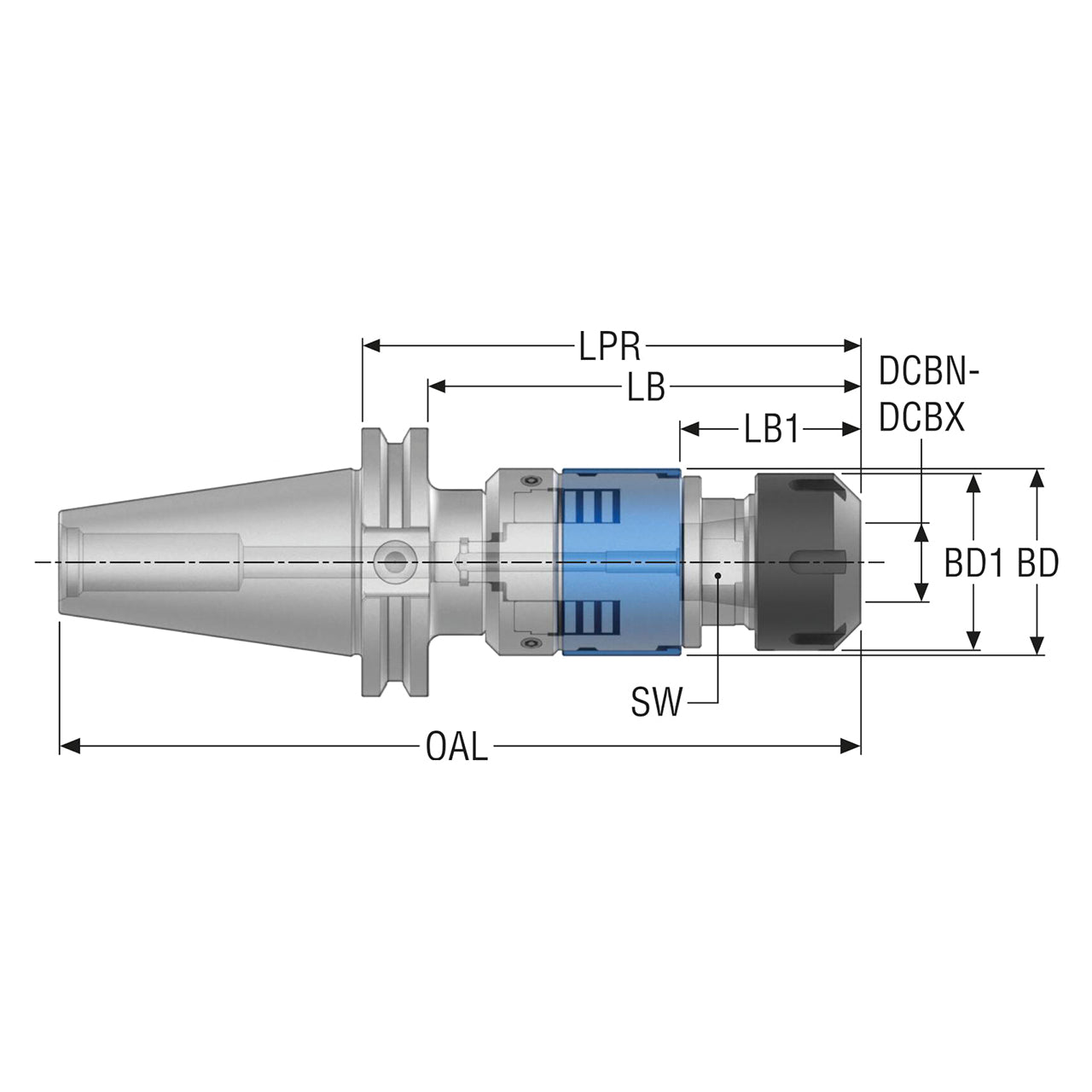

| Body Diameter (Decimal Inch) | 1.339" |
| Body Diameter (mm) | 34.00mm |
| Body Diameter 1 (Decimal Inch) | 1.378" |
| Body Diameter 1 (mm) | 35.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.158" |
| Minimum Connection Bore Diameter (mm) | 4.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Body Length (Decimal Inch) | 3.079" |
| Body Length (mm) | 78.20mm |
| Body Length 1 (Decimal Inch) | 1.390" |
| Body Length 1 (mm) | 35.30mm |
| Protruding Length (Decimal Inch) | 3.827" |
| Protruding Length (mm) | 97.20mm |
| Overall Length (Decimal Inch) | 6.514" |
| Overall Length (mm) | 165.45mm |

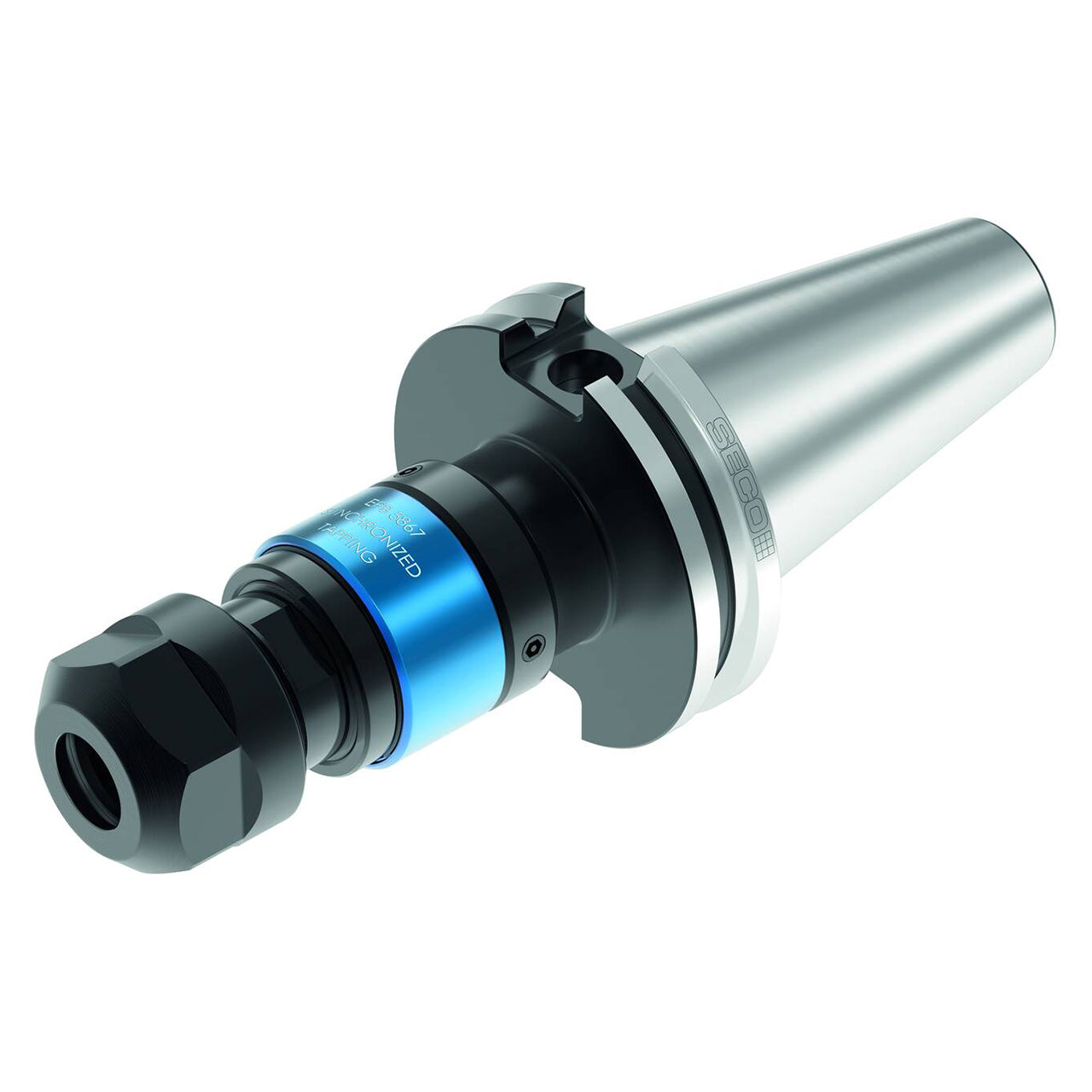

| Product Type | Tapping Chuck |
