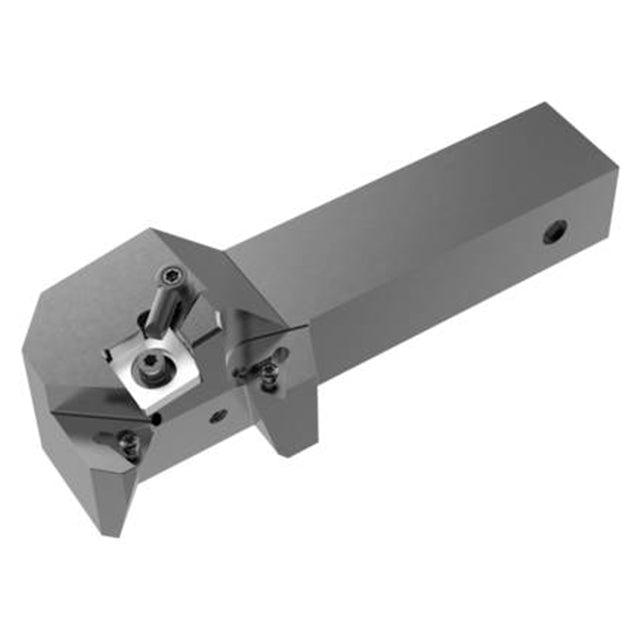

Product Specifications
| Manufacturer Part Number | 03120993 |
| Functional Length (Decimal Inch) | 6.850" |
| Functional Length (mm) | 174.00mm |
| Overall Length (Decimal Inch) | 7.701" |
| Overall Length (mm) | 195.60mm |
| Functional Height (Decimal Inch) | 1.260" |
| Functional Height (mm) | 32.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Shank Width (Decimal Inch) | 1.500" |
| Shank Width (mm) | 38.10mm |
| Maximum Cutting Depth (Decimal Inch) | 0.197" |
| Maximum Cutting Depth (mm) | 5.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Cutting Direction | Right Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Insert Clamping System | D |
| Shank Type | Square shank |
| Insert Shape Code | SN..19 |
| Product Type | Indexable Turning Toolholder |
