Product Specifications
| Manufacturer Part Number | 03120991 |
| Functional Length (Decimal Inch) | 6.693" |
| Functional Length (mm) | 170.00mm |
| Head Length (Decimal Inch) | 2.545" |
| Head Length (mm) | 64.64mm |
| Shank Length (Decimal Inch) | 4.148" |
| Shank Length (mm) | 105.35mm |
| Functional Height (Decimal Inch) | 1.250" |
| Functional Height (mm) | 31.75mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Shank Width (Decimal Inch) | 1.250" |
| Shank Width (mm) | 31.75mm |
| Maximum Cutting Depth (Decimal Inch) | 0.276" |
| Maximum Cutting Depth (mm) | 7.00mm |
| Tool Cutting Edge Angle (Degree) | 30 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 120 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 30 Degree |
| Inclination Angle (Degree) | 2.54 Degree |
| Rake Radial Angle (Degree) | 2.54 Degree |
| Rake Orthogonal Angle (Degree) | 4.09 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |
| Shank Type | Square shank |
| Insert Shape Code | SCNN25 |

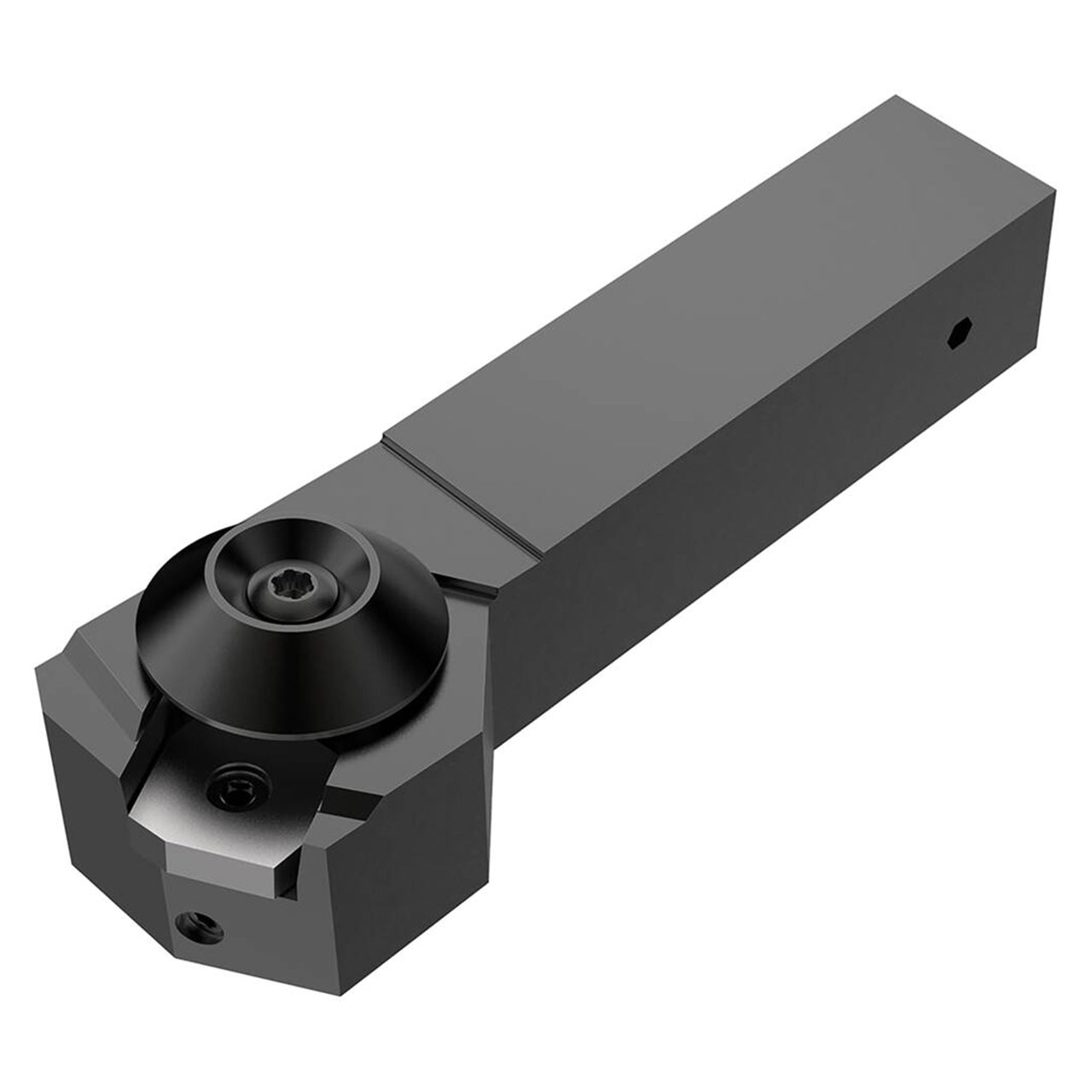

| Product Type | Indexable Turning Toolholder |
