Product Specifications
| Manufacturer Part Number | 03119990 |
| Body Diameter 1 (Decimal Inch) | 0.591" |
| Body Diameter 1 (mm) | 15.00mm |
| Body Diameter 2 (Decimal Inch) | 0.394" |
| Body Diameter 2 (mm) | 10.00mm |
| Flange Diameter (Decimal Inch) | 0.909" |
| Flange Diameter (mm) | 23.10mm |
| Body Length 1 (Decimal Inch) | 1.000" |
| Body Length 1 (mm) | 25.40mm |
| Protruding Length (Decimal Inch) | 1.264" |
| Protruding Length (mm) | 32.10mm |
| Overall Length (Decimal Inch) | 2.264" |
| Overall Length (mm) | 57.50mm |
| Connection Retention Knob Thread Size | 5/8-11 UNC |
| Body Half Taper Angle Degree) | 45 Degree |
| Driving Key (mm) | 18.90mm |
| Driving Key (Decimal Inch) | 0.744" |

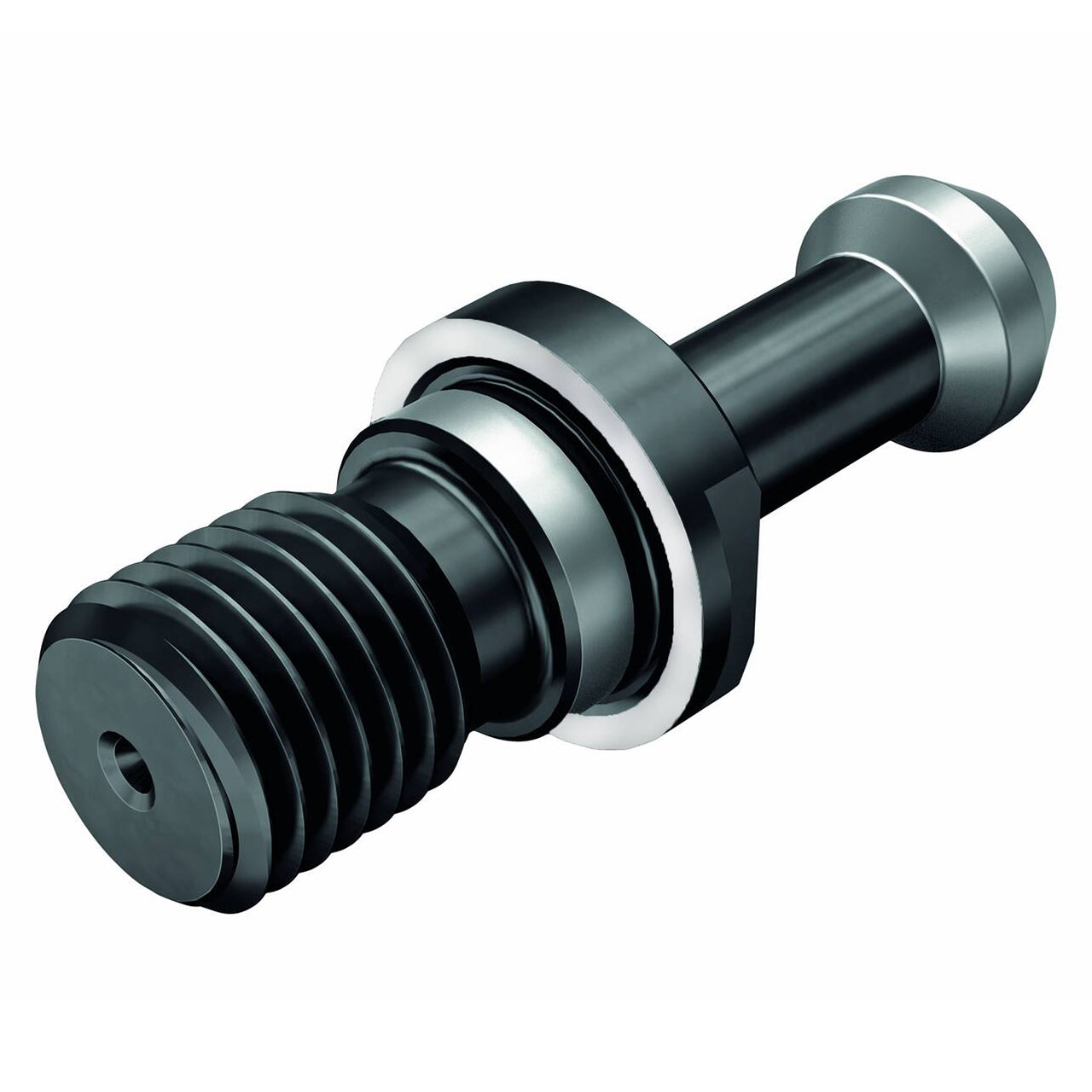

| Product Type | Retention Knob |
