Product Specifications
| Manufacturer Part Number | 03119988 |
| Body Diameter 1 (Decimal Inch) | 0.744" |
| Body Diameter 1 (mm) | 18.90mm |
| Body Diameter 2 (Decimal Inch) | 0.547" |
| Body Diameter 2 (mm) | 13.90mm |
| Body Diameter 3 (Decimal Inch) | 0.642" |
| Body Diameter 3 (mm) | 16.30mm |
| Flange Diameter (Decimal Inch) | 0.906" |
| Flange Diameter (mm) | 23.00mm |
| Coolant Entry Diameter (Decimal Inch) | 0.236" |
| Coolant Entry Diameter (mm) | 6.00mm |
| Body Length 1 (Decimal Inch) | 0.787" |
| Body Length 1 (mm) | 20.00mm |
| Protruding Length (Decimal Inch) | 1.024" |
| Protruding Length (mm) | 26.00mm |
| Overall Length (Decimal Inch) | 2.122" |
| Overall Length (mm) | 53.90mm |
| Connection Retention Knob Thread Size | 5/8-11 UNC |
| Body Half Taper Angle Degree) | 15 Degree |
| Driving Key (mm) | 18.80mm |
| Driving Key (Decimal Inch) | 0.740" |

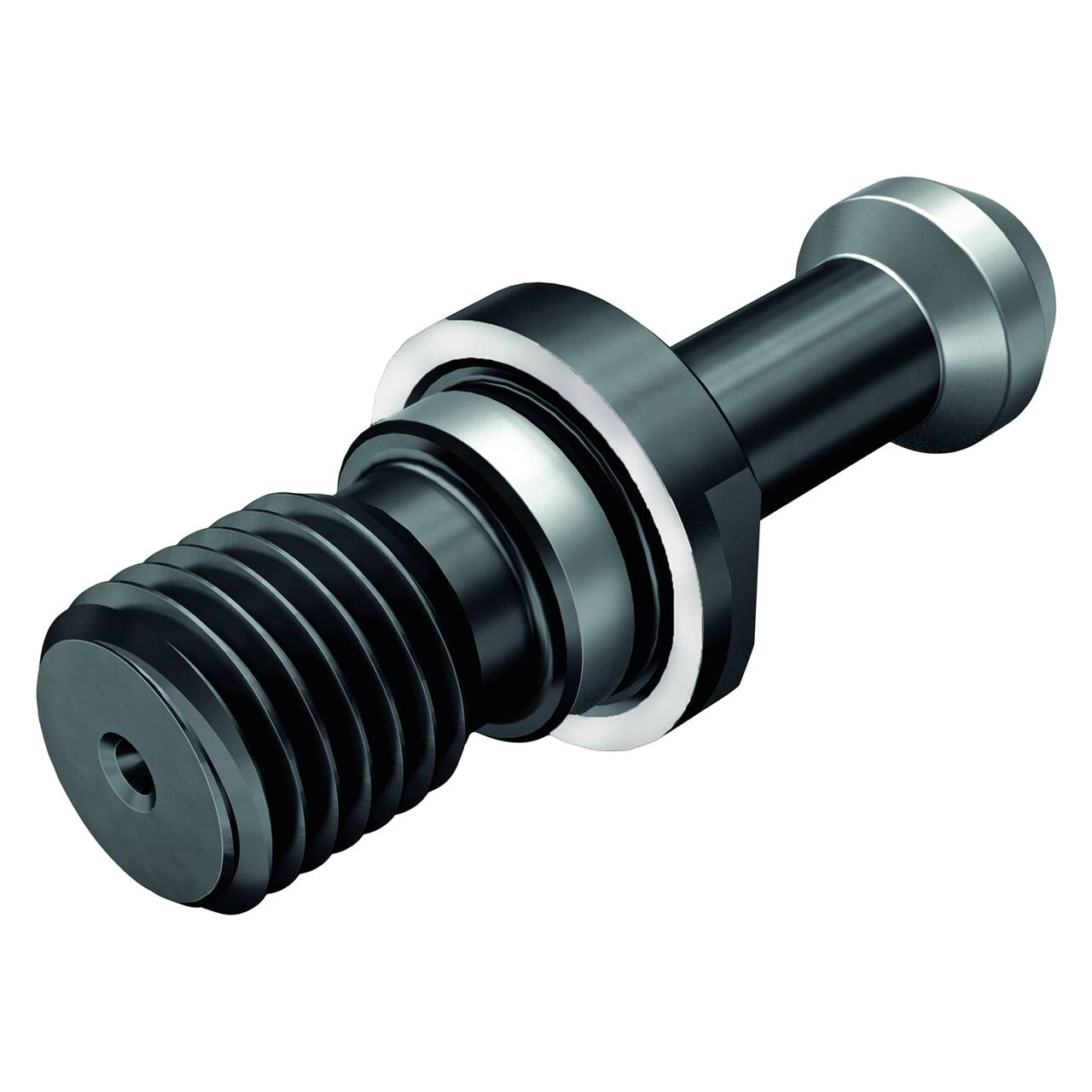

| Product Type | Retention Knob |
