Product Specifications
| Manufacturer Part Number | 03119980 |
| Body Diameter 1 (Decimal Inch) | 0.591" |
| Body Diameter 1 (mm) | 15.00mm |
| Body Diameter 2 (Decimal Inch) | 0.394" |
| Body Diameter 2 (mm) | 10.00mm |
| Body Diameter 3 (Decimal Inch) | 0.642" |
| Body Diameter 3 (mm) | 16.30mm |
| Flange Diameter (Decimal Inch) | 0.941" |
| Flange Diameter (mm) | 23.90mm |
| Coolant Entry Diameter (Decimal Inch) | 0.197" |
| Coolant Entry Diameter (mm) | 5.00mm |
| Body Length 1 (Decimal Inch) | 0.988" |
| Body Length 1 (mm) | 25.10mm |
| Protruding Length (Decimal Inch) | 1.264" |
| Protruding Length (mm) | 32.10mm |
| Overall Length (Decimal Inch) | 2.303" |
| Overall Length (mm) | 58.50mm |
| Connection Retention Knob Thread Size | 5/8-11 UNC |
| Body Half Taper Angle Degree) | 45 Degree |
| Driving Key (mm) | 18.90mm |
| Driving Key (Decimal Inch) | 0.744" |

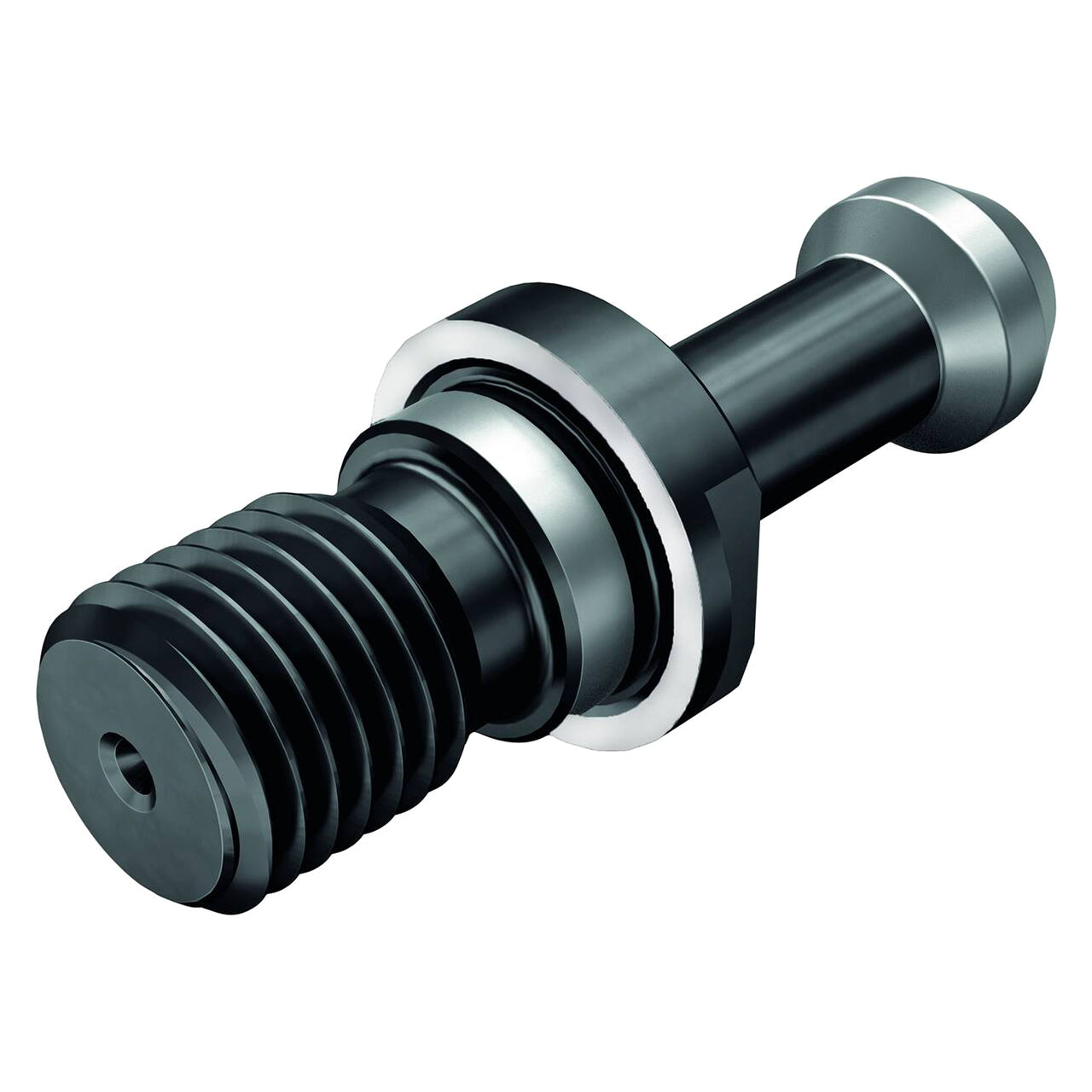

| Product Type | Retention Knob |
