Product Specifications
| Manufacturer Part Number | 03119976 |
| Body Diameter 1 (Decimal Inch) | 0.906" |
| Body Diameter 1 (mm) | 23.00mm |
| Body Diameter 2 (Decimal Inch) | 0.665" |
| Body Diameter 2 (mm) | 16.90mm |
| Body Diameter 3 (Decimal Inch) | 0.984" |
| Body Diameter 3 (mm) | 25.00mm |
| Flange Diameter (Decimal Inch) | 1.496" |
| Flange Diameter (mm) | 38.00mm |
| Coolant Entry Diameter (Decimal Inch) | 0.252" |
| Coolant Entry Diameter (mm) | 6.40mm |
| Body Length 1 (Decimal Inch) | 1.386" |
| Body Length 1 (mm) | 35.20mm |
| Protruding Length (Decimal Inch) | 1.780" |
| Protruding Length (mm) | 45.20mm |
| Overall Length (Decimal Inch) | 3.142" |
| Overall Length (mm) | 79.80mm |
| Connection Retention Knob Thread Size | 1-8 UNC |
| Body Half Taper Angle Degree) | 45 Degree |
| Driving Key (mm) | 30.00mm |
| Driving Key (Decimal Inch) | 1.181" |

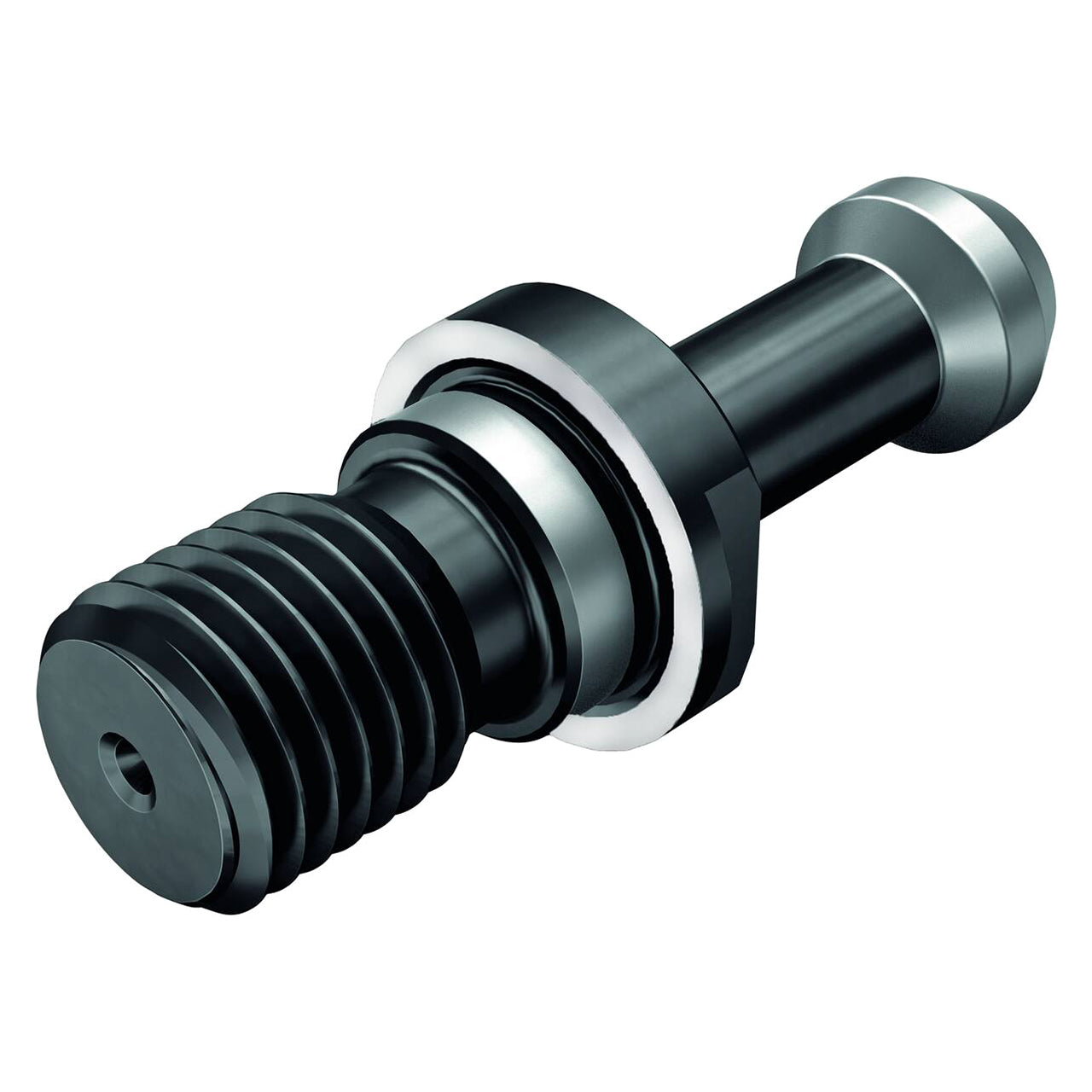

| Product Type | Retention Knob |
