Product Specifications
| Manufacturer Part Number | 03119972 |
| Body Diameter 1 (Decimal Inch) | 1.142" |
| Body Diameter 1 (mm) | 29.00mm |
| Body Diameter 2 (Decimal Inch) | 0.819" |
| Body Diameter 2 (mm) | 20.80mm |
| Body Diameter 3 (Decimal Inch) | 0.984" |
| Body Diameter 3 (mm) | 25.00mm |
| Flange Diameter (Decimal Inch) | 1.429" |
| Flange Diameter (mm) | 36.30mm |
| Coolant Entry Diameter (Decimal Inch) | 0.469" |
| Coolant Entry Diameter (mm) | 11.90mm |
| Body Length 1 (Decimal Inch) | 0.701" |
| Body Length 1 (mm) | 17.80mm |
| Protruding Length (Decimal Inch) | 1.000" |
| Protruding Length (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 2.579" |
| Overall Length (mm) | 65.50mm |
| Connection Retention Knob Thread Size | M24 |
| Body Half Taper Angle Degree) | 45 Degree |
| Driving Key (mm) | 31.80mm |
| Driving Key (Decimal Inch) | 1.252" |

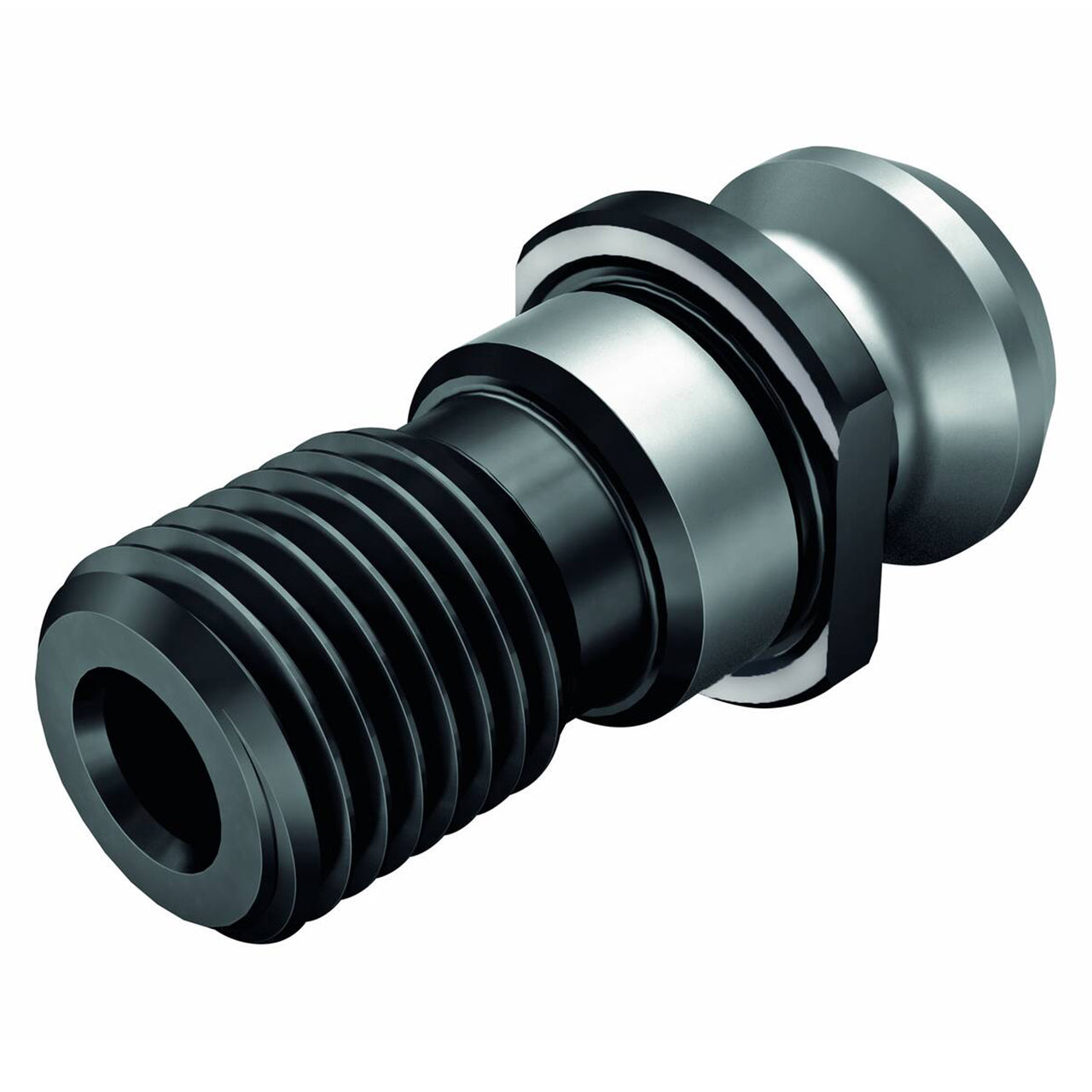

| Product Type | Retention Knob |
