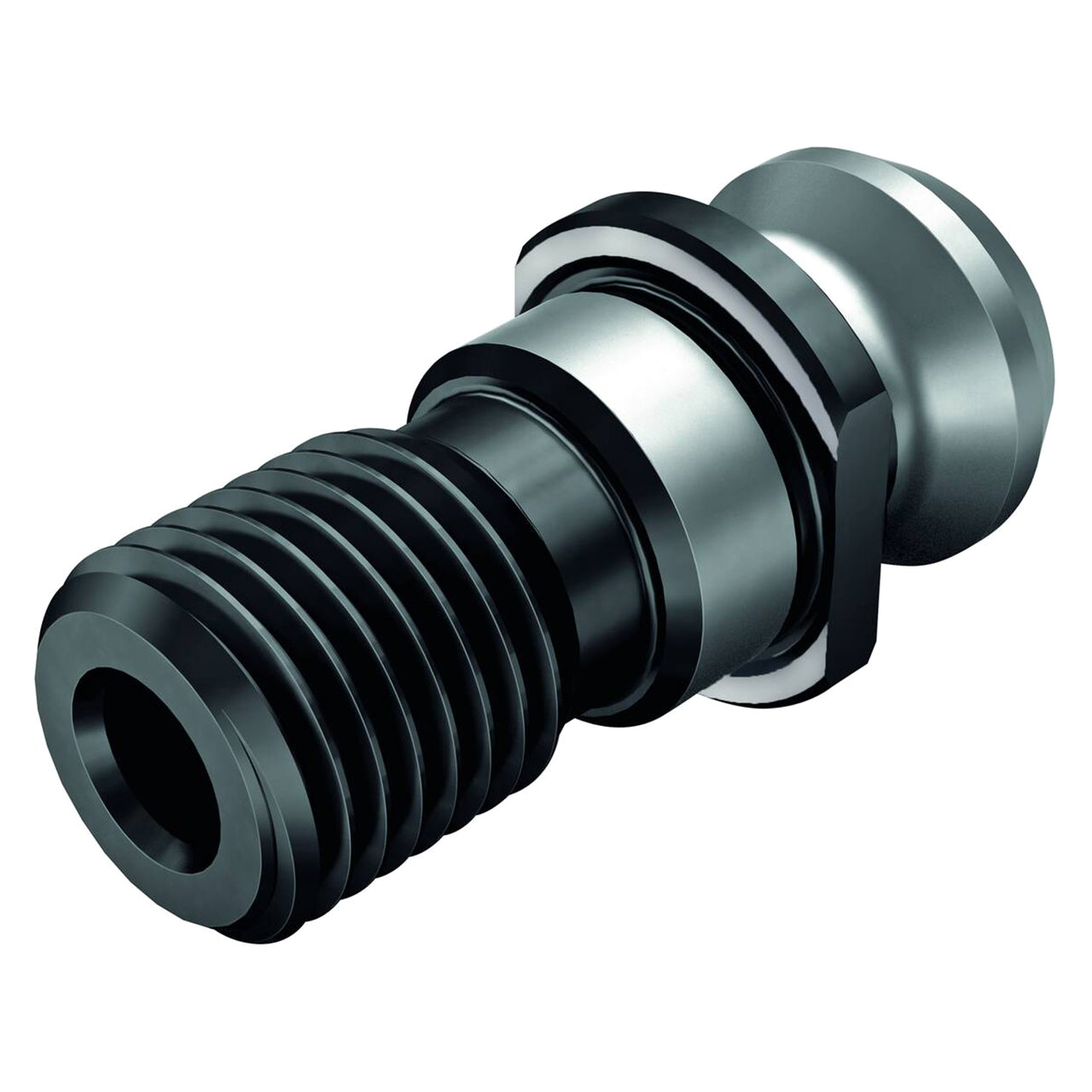

Product Specifications
| Manufacturer Part Number | 03119948 |
| Body Diameter 1 (Decimal Inch) | 1.140" |
| Body Diameter 1 (mm) | 28.96mm |
| Body Diameter 2 (Decimal Inch) | 0.820" |
| Body Diameter 2 (mm) | 20.83mm |
| Body Diameter 3 (Decimal Inch) | 0.984" |
| Body Diameter 3 (mm) | 25.00mm |
| Flange Diameter (Decimal Inch) | 1.439" |
| Flange Diameter (mm) | 36.56mm |
| Thread Diameter Size | M24 |
| Coolant Entry Diameter (Decimal Inch) | 0.394" |
| Coolant Entry Diameter (mm) | 10.00mm |
| Body Length 1 (Decimal Inch) | 0.700" |
| Body Length 1 (mm) | 17.78mm |
| Protruding Length (Decimal Inch) | 1.000" |
| Protruding Length (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 2.575" |
| Overall Length (mm) | 65.40mm |
| Connection Retention Knob Thread Size | M24 |
| Body Half Taper Angle Degree) | 45 Degree |
| Driving Key (mm) | 30.15mm |
| Driving Key (Decimal Inch) | 1.187" |
| Product Type | Retention Knob |
