Product Specifications
| Manufacturer Part Number | 03119947 |
| Body Diameter 1 (Decimal Inch) | 0.740" |
| Body Diameter 1 (mm) | 18.80mm |
| Body Diameter 2 (Decimal Inch) | 0.490" |
| Body Diameter 2 (mm) | 12.45mm |
| Body Diameter 3 (Decimal Inch) | 0.669" |
| Body Diameter 3 (mm) | 17.00mm |
| Flange Diameter (Decimal Inch) | 0.858" |
| Flange Diameter (mm) | 21.80mm |
| Thread Diameter Size | M16 |
| Coolant Entry Diameter (Decimal Inch) | 0.276" |
| Coolant Entry Diameter (mm) | 7.00mm |
| Body Length 1 (Decimal Inch) | 0.440" |
| Body Length 1 (mm) | 11.18mm |
| Protruding Length (Decimal Inch) | 0.640" |
| Protruding Length (mm) | 16.25mm |
| Overall Length (Decimal Inch) | 1.624" |
| Overall Length (mm) | 41.25mm |
| Connection Retention Knob Thread Size | M16 |
| Body Half Taper Angle Degree) | 45 Degree |
| Driving Key (mm) | 19.00mm |
| Driving Key (Decimal Inch) | 0.748" |

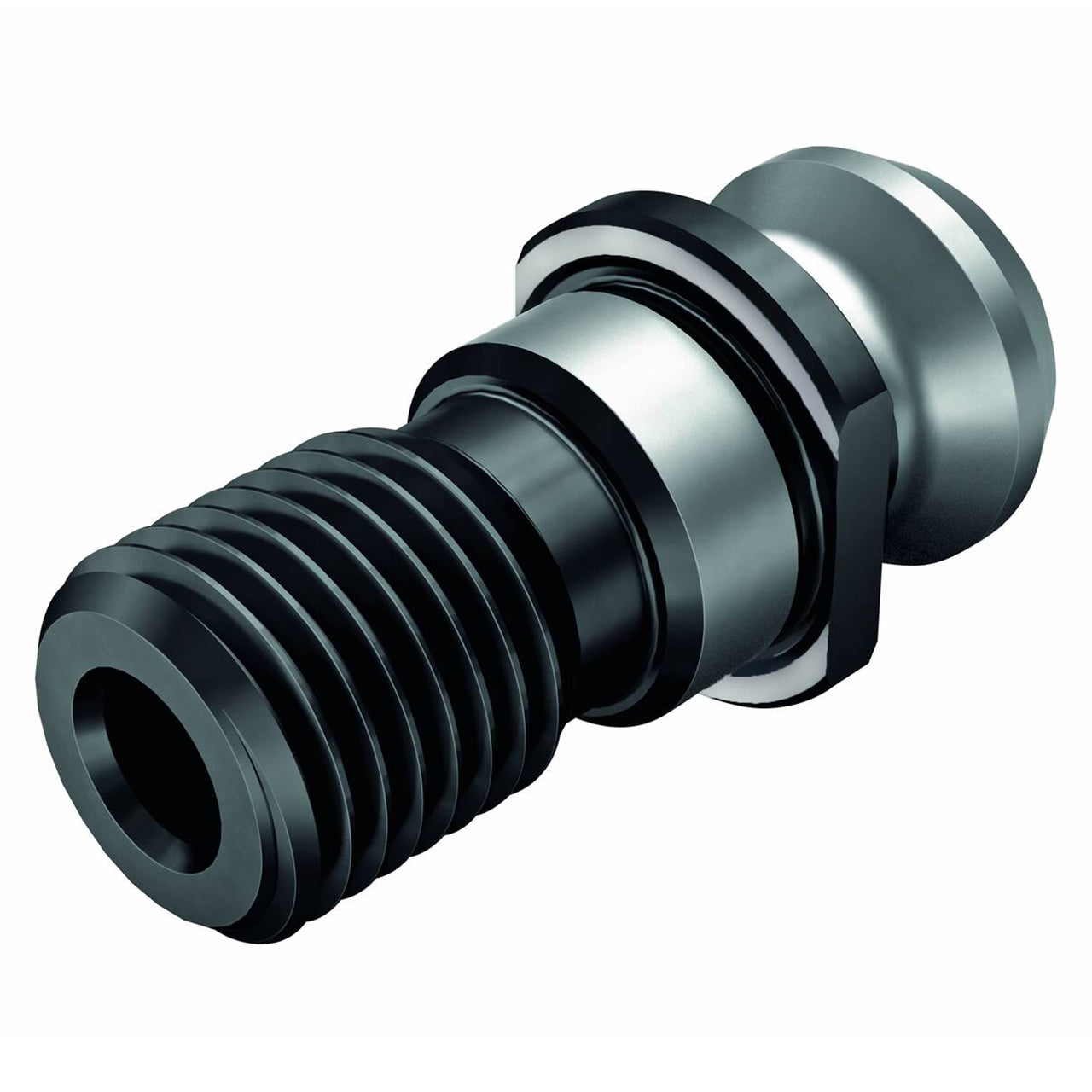

| Product Type | Retention Knob |
