Product Specifications

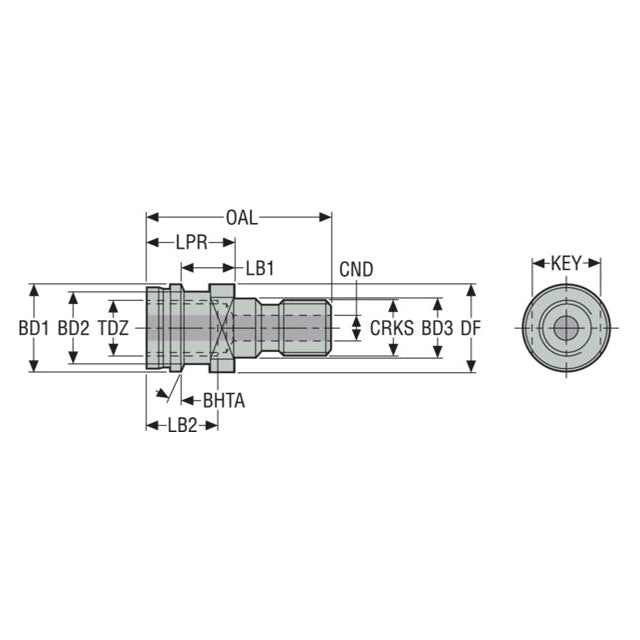

| Manufacturer Part Number | 03119936 |
| Body Diameter 1 (Decimal Inch) | 0.996" |
| Body Diameter 1 (mm) | 25.30mm |
| Body Diameter 2 (Decimal Inch) | 0.831" |
| Body Diameter 2 (mm) | 21.10mm |
| Body Diameter 3 (Decimal Inch) | 0.669" |
| Body Diameter 3 (mm) | 17.00mm |
| Flange Diameter (Decimal Inch) | 0.996" |
| Flange Diameter (mm) | 25.30mm |
| Thread Diameter Size | M16 |
| Coolant Entry Diameter (Decimal Inch) | 0.289" |
| Coolant Entry Diameter (mm) | 7.35mm |
| Body Length 1 (Decimal Inch) | 0.539" |
| Body Length 1 (mm) | 13.70mm |
| Body Length 2 (Decimal Inch) | 0.748" |
| Body Length 2 (mm) | 19.00mm |
| Protruding Length (Decimal Inch) | 0.988" |
| Protruding Length (mm) | 25.10mm |
| Overall Length (Decimal Inch) | 2.091" |
| Overall Length (mm) | 53.10mm |
| Connection Retention Knob Thread Size | M16 |
| Body Half Taper Angle Degree) | 15 Degree |
| Driving Key (mm) | 18.00mm |
| Driving Key (Decimal Inch) | 0.709" |

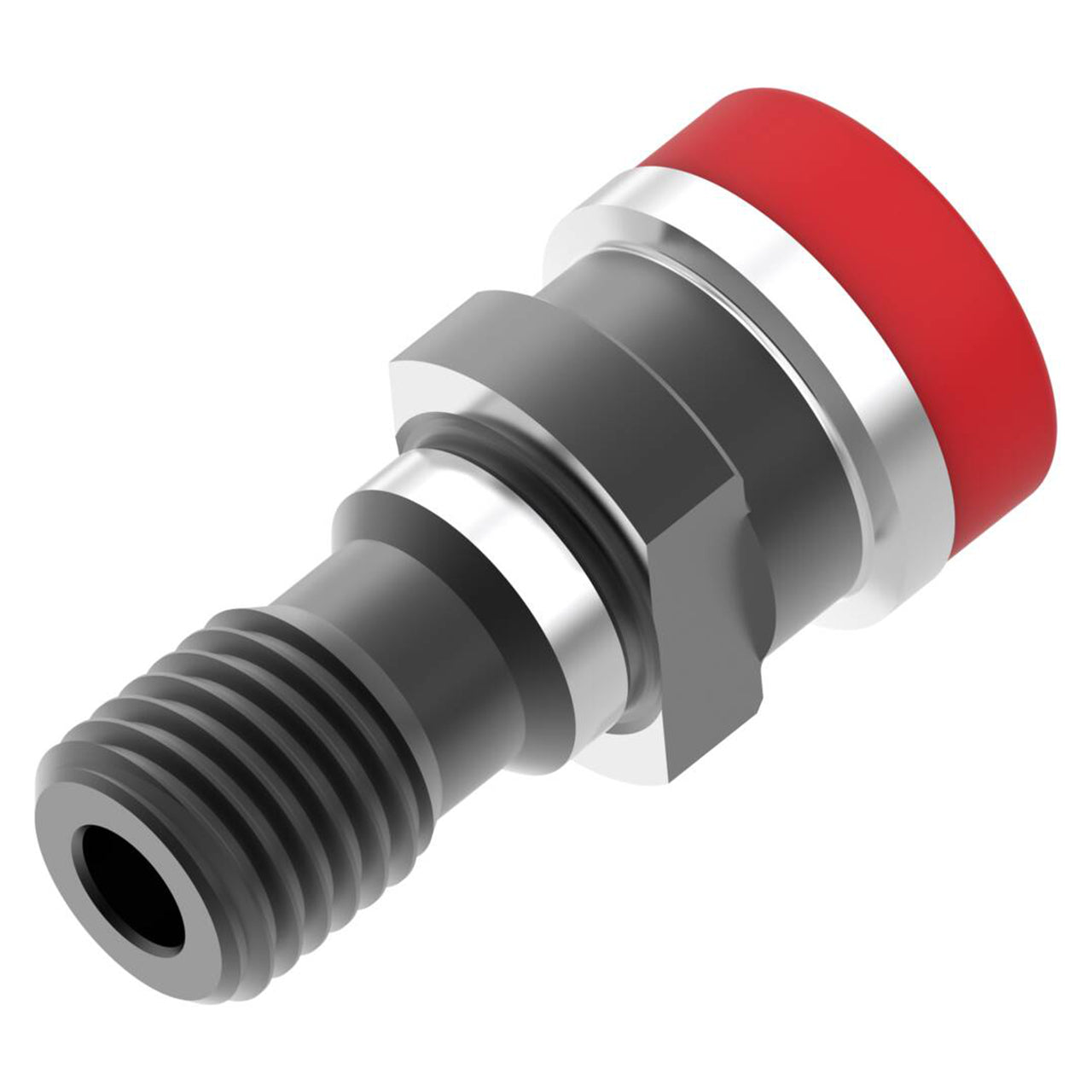

| Product Type | Retention Knob |
