Product Specifications
| Manufacturer Part Number | 03119932 |
| Body Diameter 1 (Decimal Inch) | 0.906" |
| Body Diameter 1 (mm) | 23.00mm |
| Body Diameter 2 (Decimal Inch) | 0.669" |
| Body Diameter 2 (mm) | 17.00mm |
| Body Diameter 3 (Decimal Inch) | 0.984" |
| Body Diameter 3 (mm) | 25.00mm |
| Flange Diameter (Decimal Inch) | 1.496" |
| Flange Diameter (mm) | 38.00mm |
| Thread Diameter Size | M24 |
| Coolant Entry Diameter (Decimal Inch) | 0.335" |
| Coolant Entry Diameter (mm) | 8.50mm |
| Body Length 1 (Decimal Inch) | 1.378" |
| Body Length 1 (mm) | 35.00mm |
| Protruding Length (Decimal Inch) | 1.772" |
| Protruding Length (mm) | 45.00mm |
| Overall Length (Decimal Inch) | 3.347" |
| Overall Length (mm) | 85.00mm |
| Connection Retention Knob Thread Size | M24 |
| Body Half Taper Angle Degree) | 45 Degree |
| Driving Key (mm) | 30.00mm |
| Driving Key (Decimal Inch) | 1.181" |

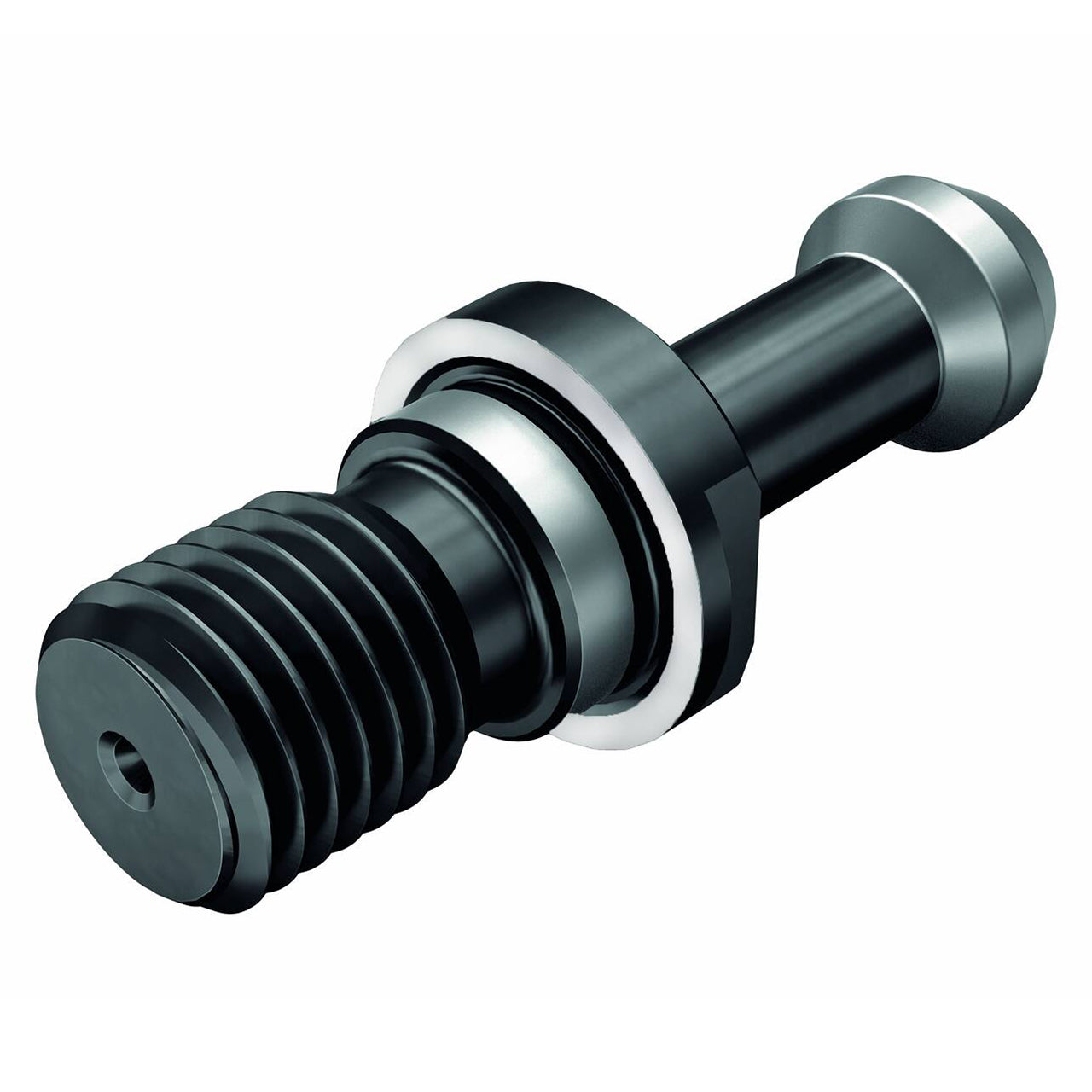

| Product Type | Retention Knob |
