Product Specifications
| Manufacturer Part Number | 03098423 |
| Body Diameter 1 (Decimal Inch) | 1.732" |
| Body Diameter 1 (mm) | 44.00mm |
| Body Diameter 2 (Decimal Inch) | 2.087" |
| Body Diameter 2 (mm) | 53.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.984" |
| Connection Bore Diameter (mm) | 25.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Minimum Connection Bore Diameter (mm) | 25.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Maximum Connection Bore Diameter (mm) | 25.00mm |
| Thread Diameter Size | M10x1 |
| Body Length (Decimal Inch) | 3.504" |
| Body Length (mm) | 89.00mm |
| Protruding Length (Decimal Inch) | 4.528" |
| Protruding Length (mm) | 115.00mm |
| Clamping Length (Decimal Inch) | 1.850" |
| Clamping Length (mm) | 47.00mm |
| Overall Length (Decimal Inch) | 5.787" |
| Overall Length (mm) | 147.00mm |
| Connection Bore Depth (mm) | 63.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.925" |
| Radial Location (mm) | 23.50mm |

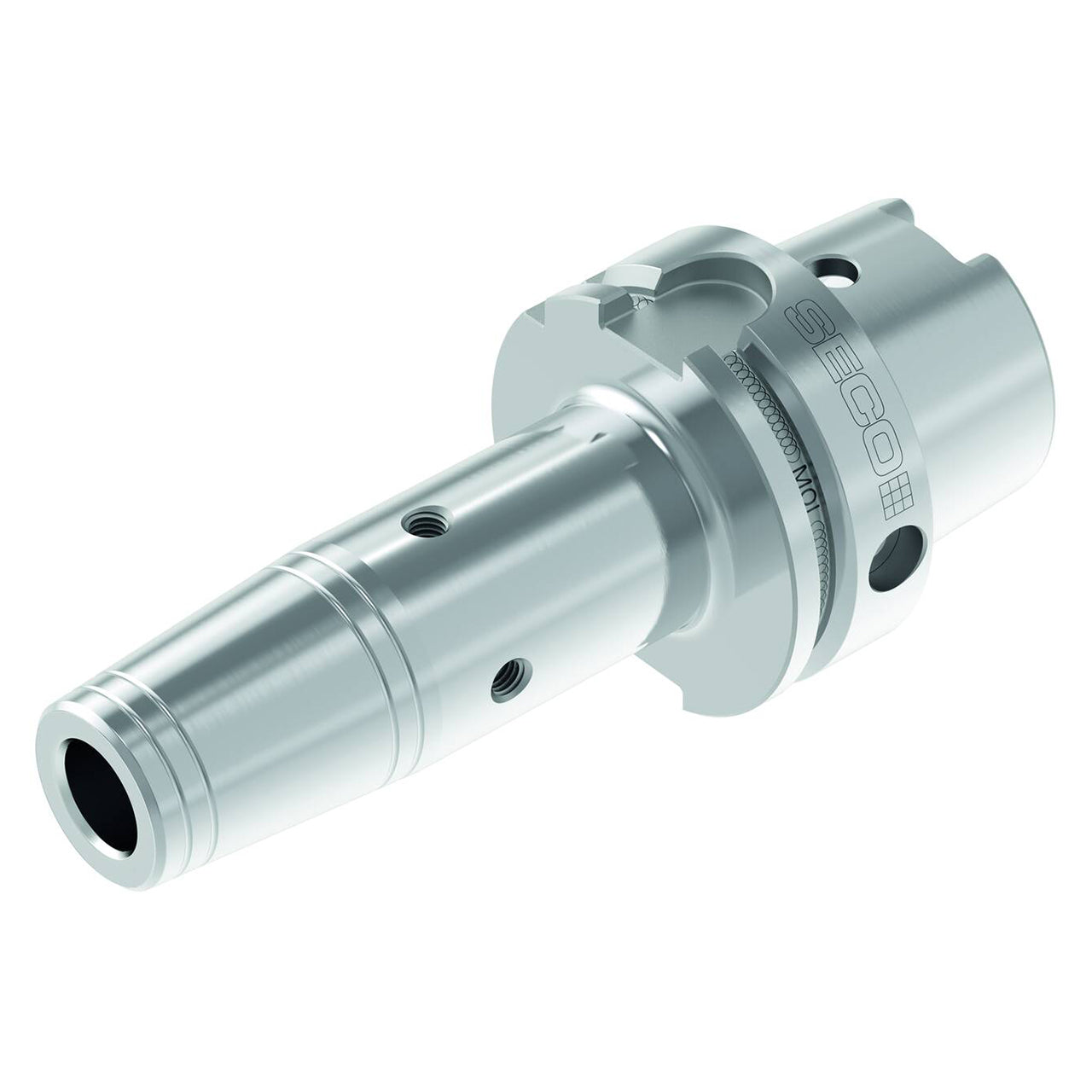

| Product Type | Shrink-Fit Tool Holder |
